APC SY70K100F Accessory

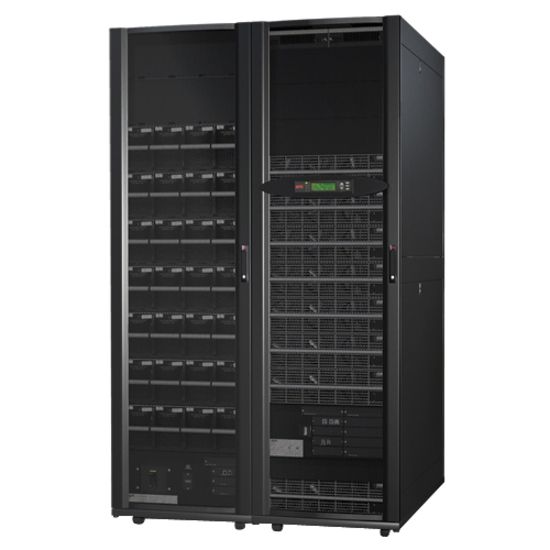

APC  -  APC by Schneider Electric Symmetra PX SY70K100F 70kVA Tower UPS - Tower - 2 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 208 V AC Output - 1 x Hard Wire 5-wire
Add to Quote
$98,034.78
APC Parts Accessory Model Overview
Products and parts from APC.
APC SY70K100F Accessory Overview

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

Technical Information
Receptacle Type:
Hard Wire 5-wire
Receptacle Detail:
1 x Hard Wire 5-wire
Power Description
Load Capacity:
70 kVA
Input Voltage:
220 V AC
Output Voltage:
208 V AC
Input Frequency:
70 Hz
Output Frequency:
60 Hz
Input Current:
332 A
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Static
  • Automatic
  • Internal
Interfaces/Ports
Modular Slots:
  • 2 x SmartSlot
  • 2 x Battery
Battery Information
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Typical Battery Recharge Time:
2 Hour
Physical Characteristics
Form Factor:
Tower
Height:
79.2"
Width:
47.2"
Depth:
42"
Weight (Approximate):
3386.40 lb
Miscellaneous
Package Contents:
  • Symmetra PX SY70K100F 70kVA Tower UPS
  • Installation Guide
  • Network Management Card
  • User Manual
  • 7 x Battery Modules
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0731304282648
UPC: 731304282648
EAN: 0731304282648
UNSPSC: 39121011
