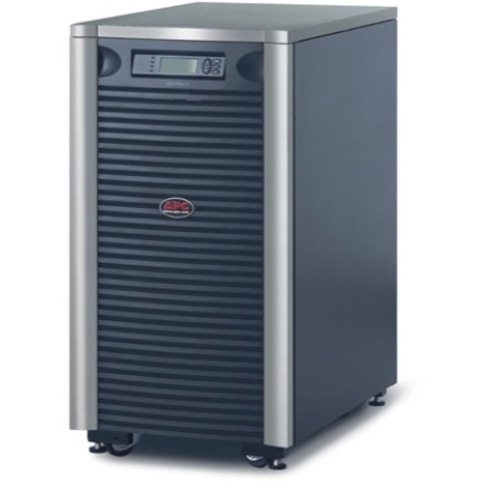

APC SYA12K16P Power Device

APC  -  APC Symmetra LX 12kVA UPS - 6 Minute Full Load - 12kVA - SNMP Manageable
  • Removable input/output wiring tray - Allows quick and easy installation and maintenance of the UPS.
Read More
Add to Quote
$27,060.88
APC Parts Accessory Model Overview
Products and parts from APC.
APC SYA12K16P Power Device Overview

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Technical Information
Plug/Connector Type:
Hard Wire 4-wire
Receptacle Type:
Hard Wire 4-wire
Receptacle Detail:
1 x Hard Wire 4-wire
Number of Battery & Surge Outlets:
1
Overload Protection:
Yes
Power Description
Load Capacity:
12 kVA
Input Voltage:
208 V AC
Output Voltage:
120 V AC
Input Frequency:
65 Hz
Output Frequency:
60 Hz
Input Current:
56 A
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
17.10 Minute
Typical Battery Recharge Time:
3 Hour
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
1463.89 W
Physical Characteristics
Product Color:
Black
Form Factor:
Tower
Height:
36.9"
Width:
19"
Depth:
28.6"
Weight (Approximate):
581.23 lb
Miscellaneous
Package Contents:
  • Symmetra LX 12kVA UPS
  • CD with software
  • Installation guide
  • User manual
  • Web/SNMP management card
  • Additional Information:
    • Audible and visible alarms prioritized by severity
    • Configurable for 120/208 or 120/240 output voltage
    • Configurable for N+1 internal redundancy
    • Redundant Intelligence Modules
    • Hot-swappable intelligence modules
    • Hot-swappable power modules
    • Automatic restart of loads after UPS shutdown
    • InfraStruXure Manager Compatible
    • Removable input/output wiring tray
    • Cold-start capable
    • Generator Compatible
    Certifications & Standards:
    CSA
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Mercury Free:
    Yes
    Country of Origin:
    United States
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0731304221524
    UPC: 731304221524
    EAN: 0731304221524
    UNSPSC: 39121011
