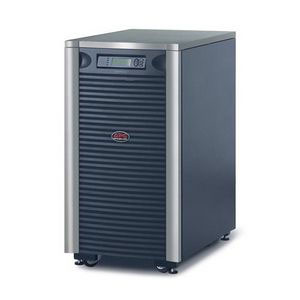

APC SYA16K16P UPS

APC Back-UPS Series - APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS - 6 Minute Full Load - 16kVA - SNMP Manageable

Removable input/output wiring tray - Allows quick and easy installation and maintenance of the UPS.

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

$33,400.00

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

APC SYA16K16P UPS Overview

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

Hard Wire 4-wire

Receptacle Type:

Hard Wire 4-wire

Receptacle Detail:

1 x Hard Wire 4-wire

Number of Battery & Surge Outlets:

Overload Protection:

Yes

Power Description

Load Capacity:

16 kVA

Input Voltage:

208 V AC

Output Voltage:

120 V AC

Input Current:

75 A

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Bypass Switch:

Automatic
Manual

Emergency Power OFF:

Yes

Interfaces/Ports

Modular Slots:

1 x SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

6 Minute

Backup/Run Time (Half Load):

17.10 Minute

Typical Battery Recharge Time:

3 Hour

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Thermal Dissipation:

1463.89 W

Physical Characteristics

Product Color:

Black

Form Factor:

Tower

Height:

36.9"

Width:

19"

Depth:

28.6"

Weight (Approximate):

678.45 lb

Miscellaneous

Package Contents:

Symmetra LX 16kVA Scalable to 16kVA N+1 Tower UPS

CD with software

Installation guide

User manual

Web/SNMP management card

Additional Information:

Audible and visible alarms prioritized by severity
Configurable for N+1 internal redundancy
Redundant Intelligence Modules
Hot-swappable intelligence modules
Hot-swappable power modules
Automatic restart of loads after UPS shutdown
InfraStruXure Manager Compatible
Removable input/output wiring tray
Cold-start capable
Generator Compatible

Certifications & Standards:

CSA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Mercury Free:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace

Item Numbers

GTIN: 0731304221531

UPC: 731304221531

EAN: 0731304221531

UNSPSC: 39121011
