APC SYH6K6RMT-P1 Products

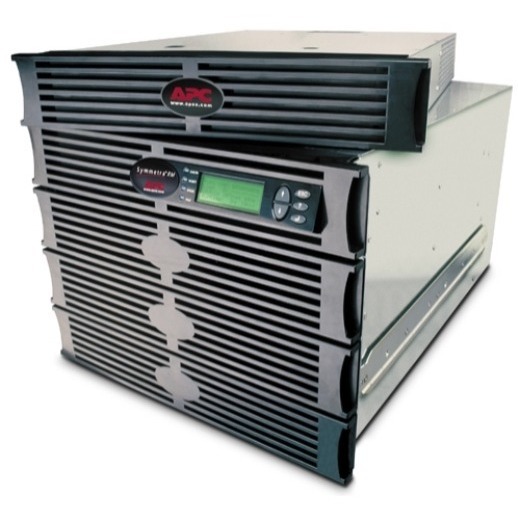

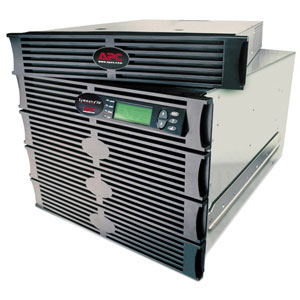

APC - APC Symmetra RM 6kVA UPS - 6000VA/4200W - 12.3 Minute Full Load - 12 x NEMA 5-20R, 2 x NEMA L6-20R

Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
Keep your sensitive devices powered with a backup of up to 12.30 minute at full load
3 Hour typical battery recharge time for better convenience and prolonged, productive usage
Lead Acid battery chemistry for your convenience and better usability
Hard Wire 3-wire plug/connector type for maximum usability with added reliability
NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
208 V AC input voltage for maximum feasibility and added productivity
120 V AC output voltage for maximum dependability and added productivity
Rack-mountable form factor for added reliability and dependability

Need a different version? See all APC Parts Accessories

Chat Now for Qty Discount

Add to Quote

$16,426.09

Overview

APC Parts Accessory Model Overview

Products and parts from APC.

APC SYH6K6RMT-P1 Products Overview

Symmetra modular design provides redundancy, scalability, manageability and serviceability delivering high availability power protection. Symmetra is ideal for protecting small data centers, network rooms, enterprise IT equipment, PBX, and Industrial applications.

Detailed Specs

Technical Information

Plug/Connector Type:

Hard Wire 3-wire
NEMA L6-30P

Receptacle Type:

NEMA 5-20R
NEMA L6-20R

Receptacle Detail:

12 x NEMA 5-20R
2 x NEMA L6-20R

Number of Battery & Surge Outlets:

Bypass Switch:

Automatic & Manual

Emergency Power OFF:

Yes

Cord Length:

10 ft

Power Description

Load Capacity:

6000 VA/4200 W

Input Voltage:

208 V AC

Output Voltage:

120 V AC

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Alarm:

On Battery
Low Battery
Configurable Delay

Battery Management:

Intelligent Battery Management

Interfaces/Ports

Serial Port:

Yes

Network (RJ-45):

Yes

Total Number of Expansion Slots:

Battery Information

Battery Characteristics:

Spill-proof, Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

12.30 Minute

Backup/Run Time (Half Load):

29.10 Minute

Typical Battery Recharge Time:

3 Hour

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Thermal Dissipation:

741.18 W

Physical Characteristics

Product Color:

Black

Height:

17.5"

Width:

19"

Depth:

28.7"

Rack Height:

10U

Form Factor:

Rack-mountable

Weight (Approximate):

389.82 lb

Miscellaneous

Package Contents:

Symmetra RM 6kVA UPS

CD with software

Rack mounting brackets

Rack mounting support rails

User manual

Additional Information:

Automatic restart of loads after UPS shutdown
Cold-start capable
Configurable for N+1 internal redundancy
Field-replaceable power distribution panel
Generator Compatible
Hot-swappable intelligence modules
Hot-swappable power modules
InfraStruXure Manager Compatible
Plug-and-Play external batteries
Programmable Frequency
Scalable Power Capacity
User-replaceable intelligence modules
User-replaceable power modules

Certifications & Standards:

CSA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace, optional on-site warranties available, optional extended warranties available

Item Numbers

GTIN: 0683498678410

UPC: 683498678410

EAN: 0683498678410

UNSPSC: 39121011
