APC SYH6K6RMT Accessory

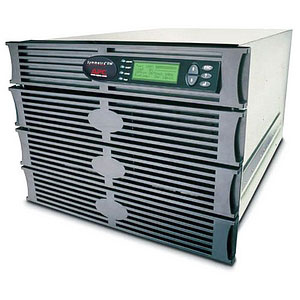

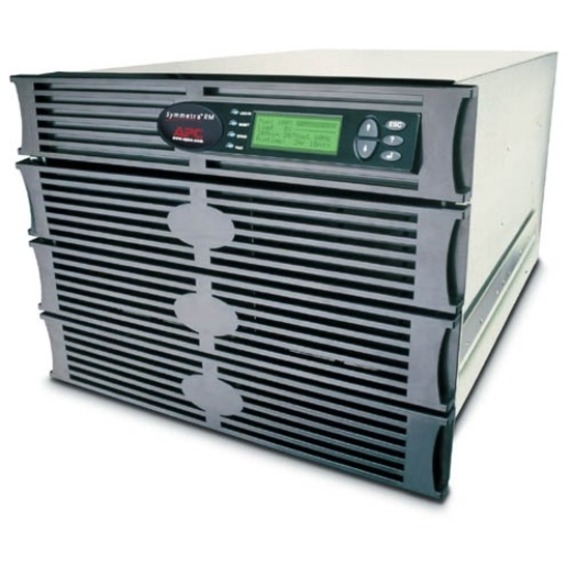

APC Back-UPS Series - APC Symmetra RM 6kVA Scalable to 6kVA N+1 Rack-mountable UPS - 12.4 Minute Full Load - 6kVA - SNMP Manageable

Need a different version? See all APC Back-UPS Series Accessories

Chat Now for Qty Discount

Add to Quote

$16,243.48

Overview

Full specifications (PDF)

APC Back-UPS Series Accessory Model Overview

An Back-UPS Series instantly switches your computer to emergency battery backup power and allows you to work through brief power outages or to shut down your system in the event of an extended outage. High-performance surge suppression protects your computer from electrical noise and damaging power surges - even lightning.

APC SYH6K6RMT Accessory Overview

Symmetra RM 6kVA Scalable to 6kVA N+1 Rack-mountable modular design provides redundancy, scalability, manageability and serviceability delivering high availability power protection. Symmetra RM 6kVA Scalable to 6kVA N+1 Rack-mountable is ideal for protecting small data centers, network rooms, enterprise IT equipment, PBX, and Industrial applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Plug/Connector Type:

Hard Wire 3-wire
NEMA L6-30P

Receptacle Type:

NEMA L6-20R
NEMA L6-30R

Receptacle Detail:

2 x NEMA L6-20R
1 x NEMA L6-30R

Number of Battery & Surge Outlets:

Overload Protection:

Yes

Power Description

Load Capacity:

6000 VA

Input Voltage:

208 V AC

Output Voltage:

208 V AC

Input Frequency:

63 Hz

Output Frequency:

60 Hz

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Alarm:

On Battery
Low Battery
Configurable Delay

Bypass Switch:

Automatic
Manual

Emergency Power OFF:

Yes

Interfaces/Ports

Modular Slots:

1 x SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

12.40 Minute

Backup/Run Time (Half Load):

29.50 Minute

Typical Battery Recharge Time:

4 Hour

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Thermal Dissipation:

519.03 W

Physical Characteristics

Product Color:

Black

Form Factor:

Rack-mountable

Rack Height:

Height:

14"

Width:

19"

Depth:

28.7"

Weight (Approximate):

294.63 lb

Miscellaneous

Package Contents:

Symmetra RM 6kVA Scalable to 6kVA N+1 Rack-mountable UPS

CD with software

Rack mounting brackets

Rack mounting support rails

User manual

Additional Information:

Automatic restart of loads after UPS shutdown
InfraStruXure Manager Compatible
Plug-and-Play external batteries
Configurable for 208 or 240 nominal output voltage

Certifications & Standards:

CSA

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Mercury Free:

Yes

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace, optional on-site warranties available, optional extended warranties available

Item Numbers

GTIN: 0683498678427

UPC: 683498678427

EAN: 0683498678427

UNSPSC: 39121011
