AudioCodes M3K24/AC Products

The AudioCodes M3K24/AC Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

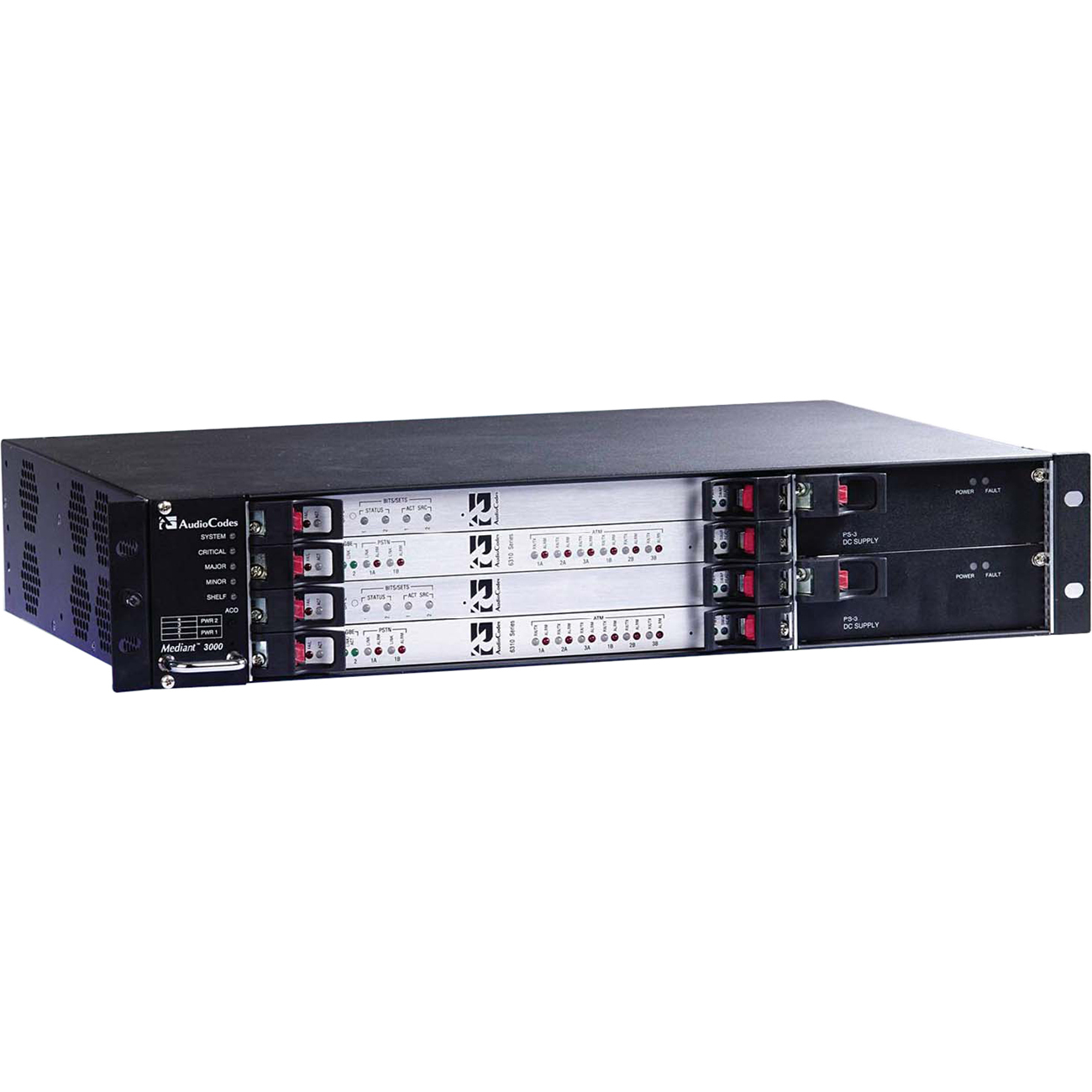

AudioCodes  -  AudioCodes Mediant 3000 VoIP Gateway - UMTS - 4 x Expansion Slots - 2U High - Rack-mountable

Need a different version? See all AudioCodes Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
AudioCodes M3K24/AC Products
AudioCodes M3K24/AC Products
AudioCodes Parts Accessory Model Overview
Products and parts from AudioCodes.
AudioCodes M3K24/AC Products Overview

Mediant 3000 in Service Provider Networks

Service Providers are currently migrating from centralized legacy TDM networks to decentralized IP networks. The Mediant 3000 is aligned with these developments, offering exceptional channel scalability of up to 2016 DSOs in a compact 19"-2U chassis, allowing it to be placed in small POPs, close to local telephone networks. Additionally, the Mediant 3000 delivers the same carrier grade availability that service providers are accustomed to on their legacy equipment. A wide range of trunking and access protocols to suit any application are provided, such as PRI, V5.2 and CAS access protocols and SS7/M2UA/M3UA trunking protocols. The Mediant 3000 fits the needs of wireline, cable, cellular and mixed service providers.

Interfaces/Ports
Serial Port:
No
PoE (RJ-45) Port:
No
USB:
No
Management Port:
No
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
CompactPCI
Wireless Specifications
Wireless LAN:
No
Cellular Data Connectivity Technology:
UMTS
Management & Protocols
Voice Codec:
  • G.722
  • G.729
  • G.711
  • G.723.1
  • G.726
  • G.727
  • G.729ab
  • G.168
  • G.165
  • T.38
  • GSM
  • iLBC
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Unit:
2U
Height:
3.5"
Width:
19"
Depth:
11.7"
Weight (Approximate):
35.27 lb
Miscellaneous
Certifications & Standards:
  • FCC part 68
  • TBR4
  • TBR13
  • UL60950
  • FCC part 15 Class A
  • CE Mark (EN55022 Class A, EN60950, EN55024, EN300 386)
  • NEBS Level 3 (GR-63-Core GR-1089-Core Type 1 & 3)
  • ETS300 019
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222605
