AudioCodes M800B-1ET4S-SBA Products

AudioCodes - M800B-1ET4S-SBA

Need a different version? See all AudioCodes Parts Accessories

Chat Now for Qty Discount

Add to Quote

$7,293.48

Overview

AudioCodes Parts Accessory Model Overview

Products and parts from AudioCodes.

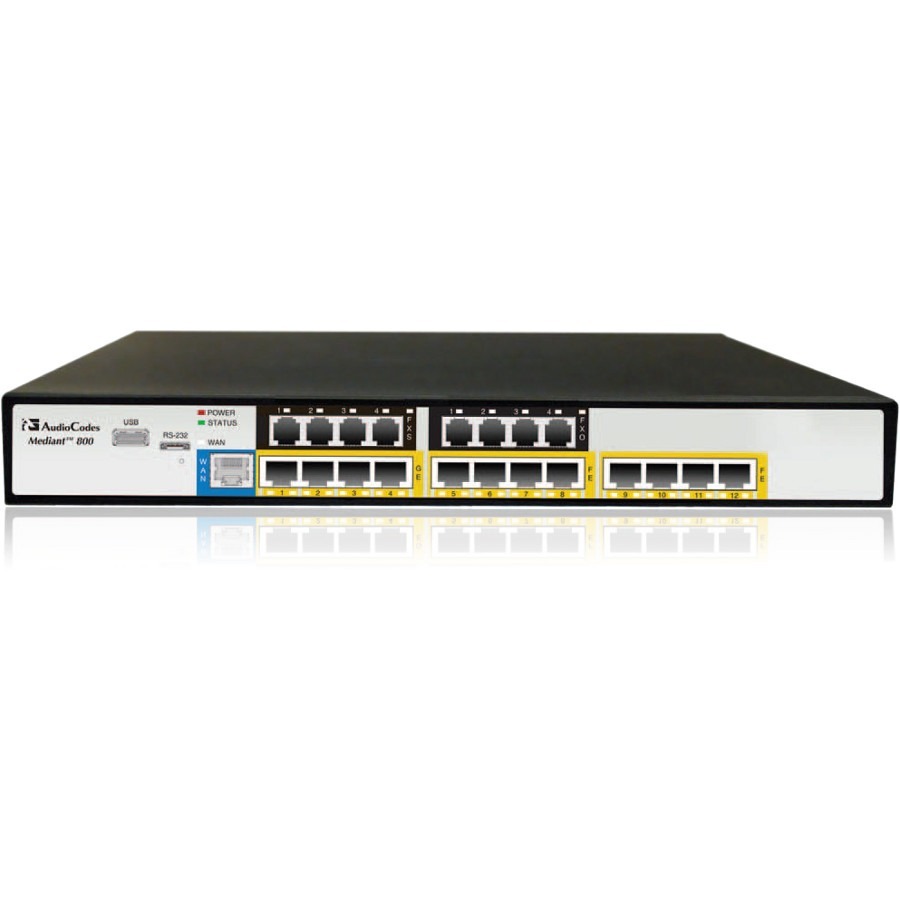

AudioCodes M800B-1ET4S-SBA Products Overview

Flexible WAN Access Capabilities

AudioCodes Mediant 800 MSBR has a versatile WAN interface supporting copper and optical fiber Gigabit Ethernet, T1/E1 WAN and a selection of DSL protocols such as SHDSL, ADSL2+ and VDSL. It also supports a 4G/3G cellular connection through a USB dongle. This range of options enables great flexibility and branch resiliency in connecting to service provider networks.

The Mediant 800 MSBR provides redundant WAN connectivity links for continued services in the event of WAN failure. Each device comes with copper Gigabit Ethernet (GE) along with a mix of additional two WAN ports of xDSL or GE (copper or Optical Fiber SFP)

Detailed Specs

Interfaces/Ports

PoE (RJ-45) Port:

Management Port:

Yes

Number of Network (RJ-45) Ports:

Number of FXS (RJ-11) Ports:

I/O Expansions

SIM Card Supported:

Network & Communication

Carrier Supported:

E-carrier
T-carrier

Ethernet Technology:

Gigabit Ethernet

Network Standard:

10/100/1000Base-T

Wireless Specifications

Wireless LAN:

Management & Protocols

Voice Codec:

G.722
G.723.1
G.729
G.726
G.711
T.38
G.165
G.168

Power Description

Input Voltage:

120 V AC
230 V AC

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Rack-mountable

Compatible Rack Unit:

Width:

12.6"

Depth:

13.6"

Miscellaneous

Package Contents:

Mediant 800B SBA with 1 E1/T1 and 4 FXS Voice Interfaces
1 x AC Power Supply

Certifications & Standards:

Telecommunications:

TIA/EIA-IS-968 (FXO, T1)
ETSI ES203 021 (FXO Interface)
TBR-4 (ISDN over E1 Interface)
TBR13/13 (E1 lines)
TBR-3 (BRI interface)

Safety and EMC:

IEC60950-1
UL60950-1
FCC Part 15 Class A
EN55022 Class A
EN55024
EN300 386

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43222605
