Axis 01078-001 Security Camera

The Axis 01078-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

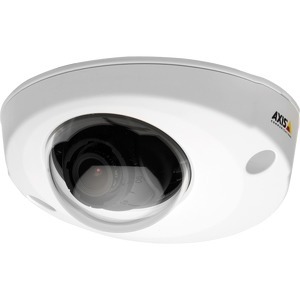

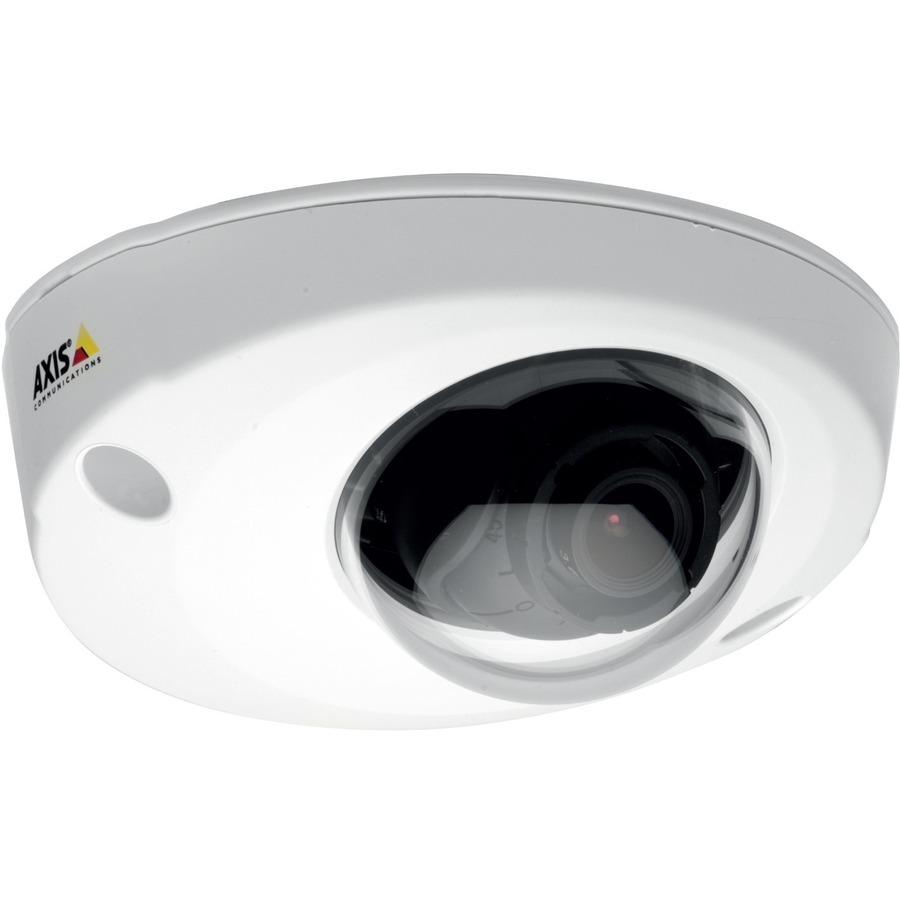

Axis P3904-R MK II  -  Security Cameras, Axis P3904-R MK II, Indoor HD Network Camera, Color, Dome, TAA Compliant, H.264 (MPEG-4 Part 10/AVC), H.264, H.264 (MP), H.264 BP, H.264 HP, Motion JPEG, 1280 x 720, 3.60 mm Fixed Lens, RGB CMOS, Bracket Mount, Pendant Mount, Wall Mount, IK08, IP66, IP67, Vibration Resistant, Shock Resistant, Vandal Resistant
  • Compact, rugged design
  • Complies with EN50155
  • WDR and Lightfinder
  • Zipstream
  • Traffic Light mode
Read More
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01078-001 Security Camera Overview

AXIS P3915-R Mk II Network Camera is a high-performance network camera specifically designed for mobile video surveillance on board vehicles and rolling stock like buses, trains, subway cars, and emergency vehicles. The camera features protection against dust and water, and it can withstand tough conditions such as vibrations, shocks, bumps, and temperature fluctuations. But best of all, thanks to Axis technology for challenging lighting and Axis Zipstream technology, AXIS P3915-R Mk II captures full forensic detail while minimizing bandwidth and storage requirements.

Excellent onboard image quality

AXIS P3915-R Mk II is specially adapted to deliver sharp HDTV 1080p image quality onboard moving vehicles with varied and fast-shifting light levels. The camera features WDR - Forensic Capture for clarity when there are both dark and light areas in the scene, and Axis Lightfinder technology for color images even in near darkness. Traffic Light mode helps to better delineate the color of traffic lights in very dark scenes.

Optimized for transportation

AXIS P3904-R Mk II complies with a long list of transportation-industry regulations including fire-safety, and EN50155:2017 Class OT2/ST2 (EN50155:2007 Class TX) standards. Its rugged design and ability to withstand a wide range of temperatures make the camera appropriate for tough onboard conditions. And with optional outdoor housing, M12 or RJ45 connectors available and a compact and discreet design, it's flexible enough to be installed inside or out and in many different configurations.

Cut the storage. Not the quality.

AXIS P3904-R Mk II features Axis Zipstream technology, which reduces storage and bandwidth with up to 50%, while capturing important details in full image quality. The result is high-forensic usability, and significant savings, as well as a camera that's perfect for onboard conditions.

The camera is designed for quick and reliable installation. A lens tool that makes it easy to get a level image with the field of view you want is included. And it's easy to upgrade from earlier camera versions from the series.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 87° - Vertical field of view: 47°
Video
Video Formats:
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • Motion JPEG
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.60 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/32500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Bracket Mount
  • Pendant Mount
  • Wall Mount
Form Factor:
Dome
Durability:
  • Vibration Resistant
  • Shock Resistant
  • Vandal Resistant
Height:
1.9"
Diameter:
4.3"
Weight (Approximate):
8.50 oz
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
158°F (70°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Rugged Design
  • Wide Dynamic Range
  • White Balance
  • Privacy Masking
  • Password Protection
  • HTTPS Encryption
  • PTZ
  • SD Card Local Storage
  • Video Management System
  • Motion Detection
  • Active Tampering Alarm
Indoor/Outdoor:
Indoor
Package Contents:
  • P3904-R MK II Network Camera
  • Installation Guide
  • Windows Decoder 1-user License
  • Drill Hole Template
  • Top Cover Tool
  • Lens Tool
  • Allen Key Resistorx
Impact Protection Rating:
IK08
Ingress Protection Rating:
  • IP66
  • IP67
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021059696
EAN: 7331021059696
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 01078-001 Security Camera is also known as AXC-01078001
