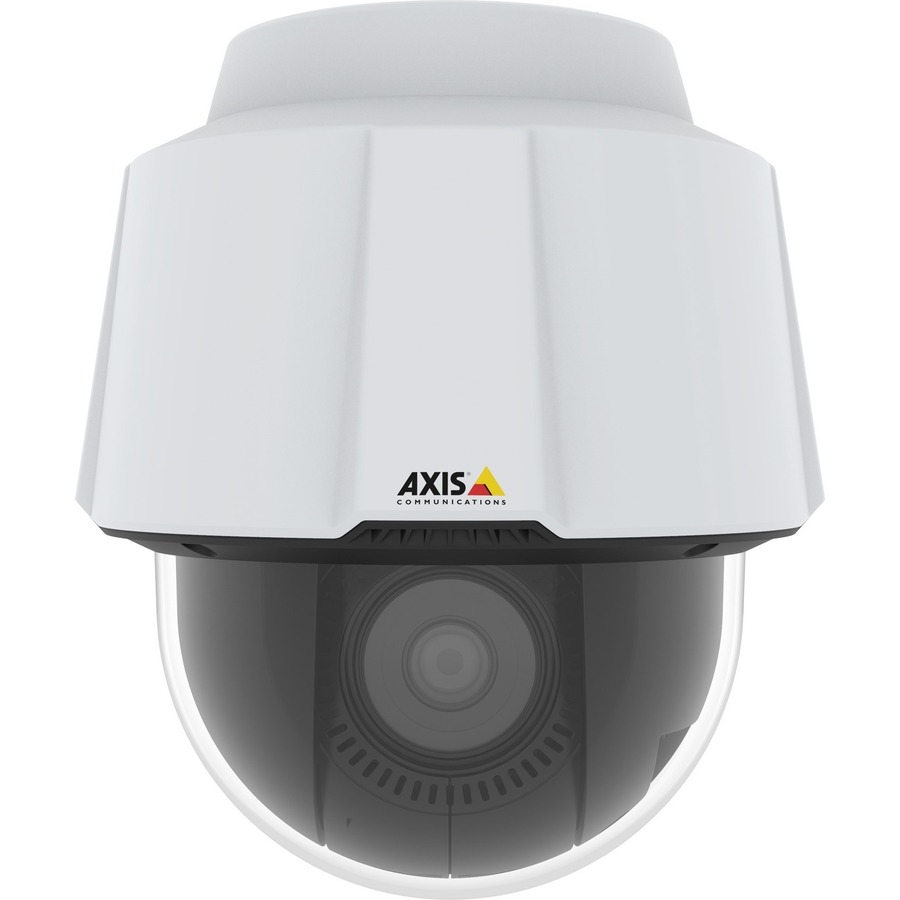

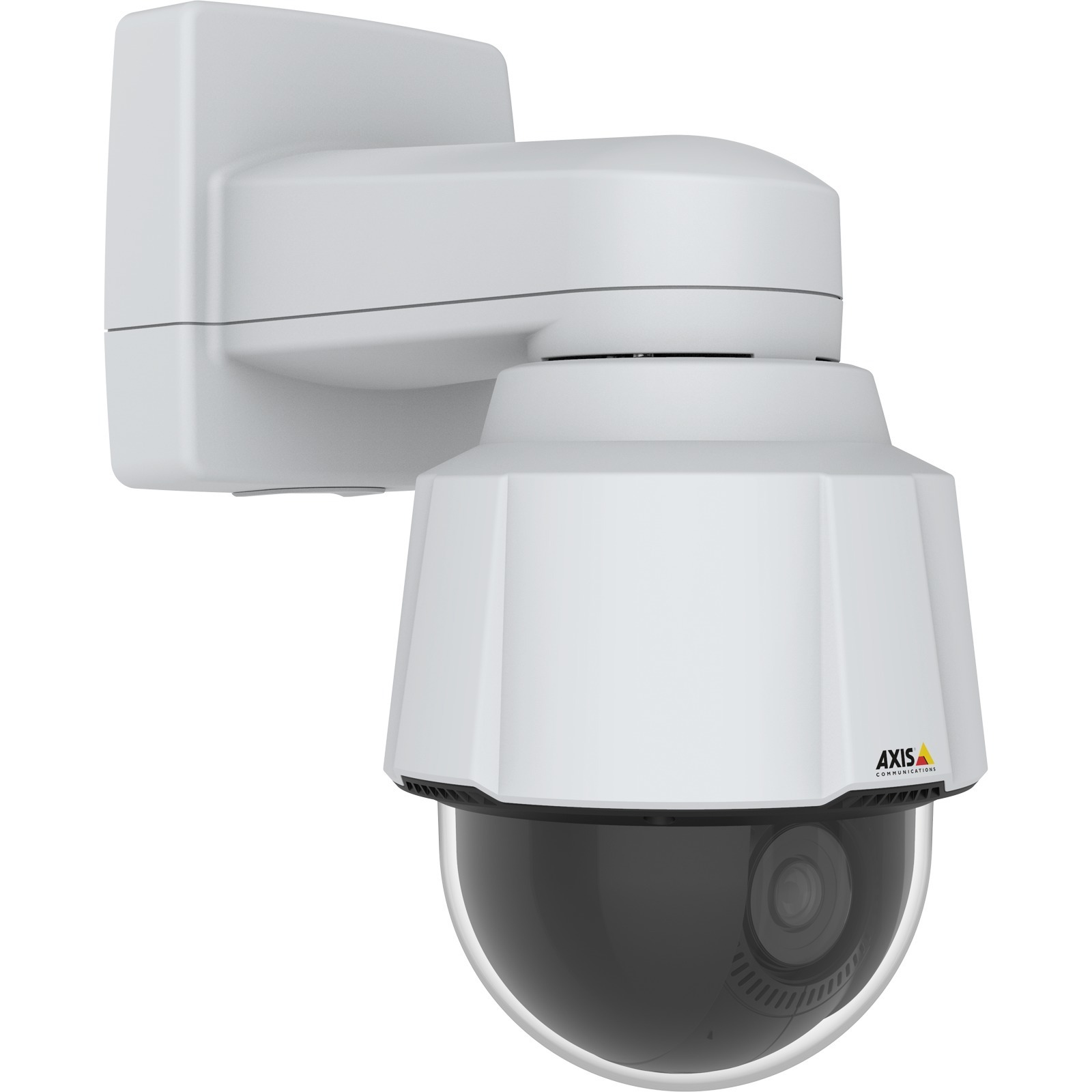

Axis 01682-004 Security Camera

Axis P5655-E  -  Security Cameras, Axis P5655-E, Indoor/Outdoor Full HD Network Camera, Color, Dome, H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), H.264 HP, H.265, H.265 (MPEG-H Part 2/HEVC), H.265 (MP), Motion JPEG, 1920 x 1080, 4.30 mm- 137.60 mm Varifocal Lens, 32x Optical, RGB CMOS, Ceiling Mount, Corner Mount, Pole Mount, Parapet Mount, Pendant Mount, Bracket Mount, Recessed Mount, IK10, IP66, Weather Resistant, Impact Resistant
  • HDTV 1080p with 32x optical zoom
  • Forensic WDR and Lightfinder 2.0
  • Signed firmware and secure boot
  • Focus recall and EIS
  • Zipstream with support for H.264 and H.265
Read More
Add to Quote
$2,375.34
In Stock
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01682-004 Security Camera Overview

AXIS P5655-E PTZ Network Camera is a cost-effective high performance PTZ camera for versatile surveillance. Thanks to the newest generation of Axis chip, it offers excellent video quality, even in the most challenging light conditions, and a high level of defense to protect your system. It's ideal for deterrent surveillance of large outdoor and indoor areas and provides great details when zooming in.

Great images - anytime

AXIS P5655-E offers superb image quality in HDTV 1080p with 32x optical zoom. It's got Forensic WDR for clarity even when there's both dark and light areas in the scene. And Lightfinder 2.0 for low-light images with more saturated colors and sharper images of moving objects. Additionally, it has electronic image stabilization (EIS) for stable images despite vibration. And focus recall gives you instant focus in challenging light conditions. Plus, it comes with four scene profiles (indoor, outdoor, forensic and traffic) with different image settings optimized to suit specific scenarios.

Keeping you secure

This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.

And there's more...

This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements. It supports two-way audio, I/O ports, PoE+ and 24 V AC/DC.

Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 58.3°- 2.4° - Vertical field of view: 35.5°- 1.4°
Video
Video Formats:
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 BP
  • H.264 (MP)
  • H.264 HP
  • H.265
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
  • Motion JPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
137.60 mm
Lens Included:
Yes
Minimum Aperture:
f/4
Maximum Aperture:
f/1.4
Optical Zoom:
32x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 100 V AC
  • 240 V AC
Power Source Type:
  • AC
  • PoE
Physical Characteristics
Mount Type:
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
  • Parapet Mount
  • Pendant Mount
  • Bracket Mount
  • Recessed Mount
Form Factor:
Dome
Durability:
  • Weather Resistant
  • Impact Resistant
Product Color:
White
Height:
8.5"
Diameter:
7.4"
Weight (Approximate):
5.51 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Automatic Defog
  • Privacy Masking
  • Auto Gain Control
  • HTTPS Encryption
  • Password Protection
  • Human Detection
  • Cross Line Detection
  • Electronic Image Stabilization
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • P5655-E PTZ Network Camera
  • RJ45 Push-pull Connector (IP66)
  • Hard ceiling mount
  • Spring pipe adaptor
  • U-profile pipe adaptor
  • Installation Guide
  • Windows decoder 1-user license
  • AVHS Authentication key
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021076006
EAN: 7331021076006
UNSPSC: 46171610
