Recording Formats:
Full HD
HD Recording:
Yes
Axis Parts Accessory Model Overview
Products and parts from Axis.

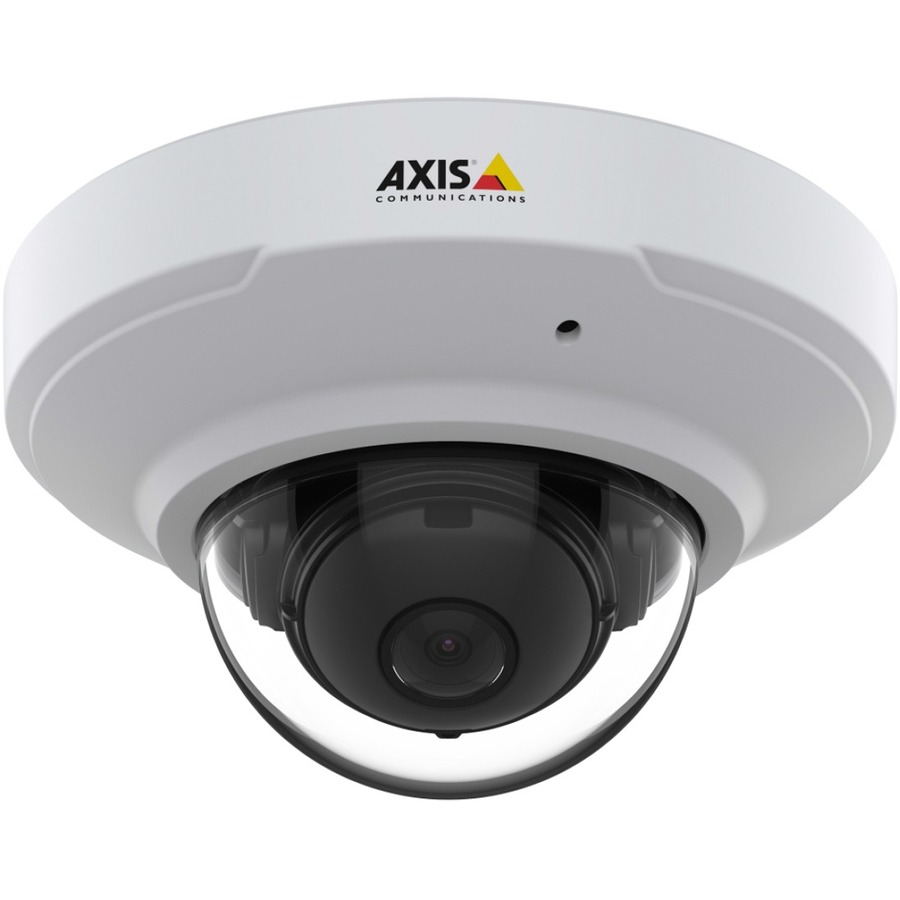

Axis 01709-001 Security Camera Overview
Are you looking for an attractively priced, ultra-compact mini dome that delivers sharp HDTV 1080p video quality even in poor light? From retail stores to hotel interiors, AXIS M3075-V offers flexible installation options as well as a built-in microphone.
Great value for money
AXIS M3075-V features a built-in microphone, so you can listen in on transactions for instance at cash-desks and allows you to record dialogues. The HDMI port lets you display live video on a public viewing monitor or setup a virtual window for the backdoor or entrance. This discreet fixed mini dome features day/night functionality and with Wide Dynamic Range (WDR) you get clarity when there's both dark and light areas in the scene. It also supports intelligent analytics and edge storage so you can record directly to an onboard memory card.
Cost-efficient installation
To keep implementation costs low, AXIS M3075-V is designed for fast and easy installation. It comes factory focused so there's no manual focusing required. The sleek design benefits from no visible screws, and the casing simply snaps on. Plus, the camera's connectors are easily accessible so you can quickly connect to the HDMI port or insert an SD card. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
Fits in anywhere
Designed for reliable and effortless installation, this ultra-compact camera can be easily mounted on walls or ceilings. Kits are also available for recessed and pendant mounting as well as installation on conduits. The impact-resistant, IP42-rated casing can be repainted to blend in discreetly and seamlessly with any interior color scheme. Plus, there's an optional black casing available. Furthermore, this product is made with 52% recycled plastics and it's free of hazardous brominated and chlorinated flame retardants (BFR/CFR free). This not only helps to increase the cameras health and performance, it also lowers environmental impacts.
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 102° ; Vertical field of view: 55°
Video
Video Formats:
- H.264
- MJPEG
- H.265
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.10 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/32500 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
HDMI:
Yes
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Pendant Mount
- Recessed Mount
- Wall Mount
- Conduit Mount
- Gang Box Mount
Form Factor:
Mini Dome
Color:
White
Height:
2.2"
Depth:
4"
Weight (Approximate):
5.29 oz
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
113°F (45°C)
Operating Humidity:
85%
Miscellaneous
Features:
- Built-in Microphone
- ePTZ
- Password Protection
- Wide Dynamic Range
- Day/Night
Impact Protection Rating:
IK08
Ingress Protection Rating:
IP42
Country of Origin:
Mexico
Item Numbers
GTIN:
7331021066793
EAN:
7331021066793
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 01709-001 Security Camera is also known as
AXC-01709001
or 01709001.
