Axis 01731-004 Security Camera

The Axis 01731-004 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

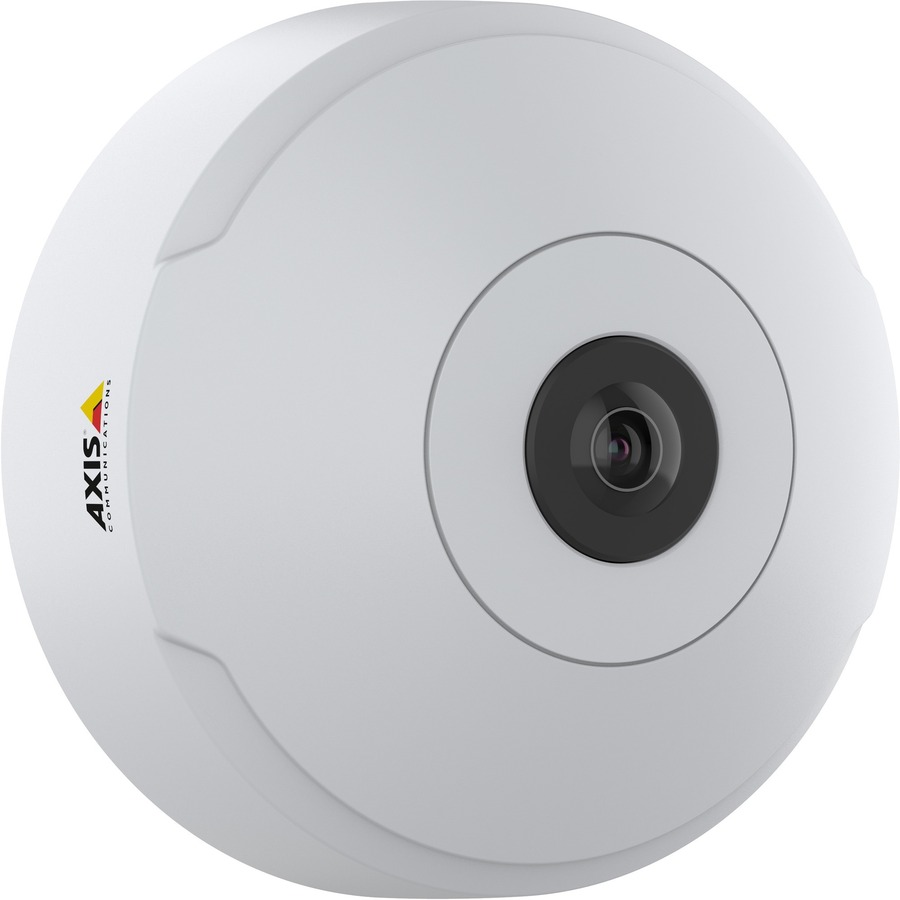

Axis M3067-P  -  Security Cameras, AXIS M3067-P, Fixed mini-dome that delivers clear 360anoramic overviews with no blind spots. Includes Axis Lightfinder technology for light sensitivity and clear colors in low light.
  • 360° panoramic overview
  • Forensic WDR, Lightfinder, day/night functionality
  • Small and discreet design
  • Zipstream supporting H.264 and H.265
  • Environmentally friendly materials
Read More
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01731-004 Security Camera Overview

Are you looking for an attractively priced fixed mini-dome that delivers clear 360° panoramic overviews with no blind spots? From retail stores to offices, AXIS M3067-P is ideal wherever high-quality indoor video surveillance is required.

See it all - day and night

Featuring Forensic WDR, AXIS M3067-P delivers clarity when there's both dark and light areas in the scene and outstanding 360° panoramic views at up to 30 fps. It includes Axis Lightfinder technology for light sensitivity and clear colors in low light. Plus, day/night functionality provides high quality black-and-white video with improved sensitivity in even lower light. In smaller facilities it's possible to monitor the entire area with just one camera. Not only does the camera give you a complete and sharp overview, it also allows you to zoom in and analyze live or recorded video footage. Whether an incident occurred in the middle of the space, or in a far corner, thanks to de-warping functionality you can always see distortion-free views of the specific area. AXIS M3067-P can deliver a variety of de-warped views, and you can fetch multiple, individually configured video streams simultaneously from the camera.

Sleek, sustainable design

This ultra-compact, PVC-free camera is made from 71% recycled plastics and is designed to look discreet wherever it's installed. It comes with a white casing that features a sleek, no-dome design. There's also optional casings available, for instance a black casing, a smoke detector casing to help disguise the camera as well as a vandal-resistant casing for added security and peace of mind. Additionally, the camera's casing can be repainted to blend in seamlessly with specific surroundings.

Great value for money

This attractively priced fixed mini-dome helps ensure smooth installation and keeps costs low. It's delivered factory-focused out of the box, so no focusing is required. And, thanks to digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on the camera. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.

Technical Information
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view 185°, Vertical field of view 185°
Effective Camera Resolution:
6 Megapixel
Video
Video Formats:
  • Motion JPEG
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265
  • H.264
  • H.265 (MP)
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
Maximum Video Resolution:
2016 x 2016
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.60 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Ceiling Mount
  • Pole Mount
  • Lighting Track Mount
  • Wall Mount
  • Bracket Mount
  • Tilted Mount
  • Recessed Mount
  • Pendant Mount
  • Conduit Mount
  • Backbox Mount
  • Gang Box Mount
  • Corner Mount
Form Factor:
Mini Dome
Durability:
  • Vandal Resistant
  • Impact Resistant
Color:
White
Height:
1.9"
Diameter:
4"
Weight (Approximate):
10.58 oz
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Operating Humidity:
85%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Day/Night
  • Removable IR Cut-off Filter
  • White Balance
  • Auto Gain Control
  • Privacy Masking
  • PTZ
  • HTTPS Encryption
  • Password Protection
  • Motion Detection
  • Active Tampering Alarm
  • SD Card Local Storage
Indoor/Outdoor:
Indoor
Package Contents:
  • M3067-P Network Camera
  • Installation Guide
  • Windows Decoder 1-user License
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021076020
EAN: 7331021076020
UNSPSC: 46171610
