Axis 01936-001 CCTV Camera System

Axis 2N - Security Camera Systems, Axis 2N, Video Door Phone, 4.3" Touchscreen, Tempered Glass, Indoor, Intercom System

Intuitive controls, even for inexperienced users: Accepting calls, opening doors, displaying missed calls or switching to silent mode has never been easier. Large, colour backlit buttons make the interface intuitive and easy to operate.
Configuration via a web interface: Setting up all installed units, creating a directory and upgrading firmware can all be performed via the web interface, both from the local network and remotely using the 2N® Remote Configuration service.
Designer surface made of tempered glass: The upper 3mm glass is chemically strengthened at 420°C in a salt bath, providing maximum durability and protecting it from scratches and impacts during everyday household use.
Connection of the unit in a matter of seconds: The structured cabling typical in houses today makes it possible to simply plug the 2N® Indoor Compact straight into the system. Powering the device via PoE and communication are ensured immediately.

Need a different version? See all Axis Parts Accessories

Chat Now for Qty Discount

Add to Quote

$610.40

Overview

Axis Parts Accessory Model Overview

Products and parts from Axis.

Axis 01936-001 CCTV Camera System Overview

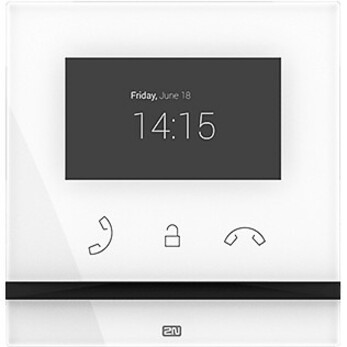

The 2N® Indoor Compact is an indoor answering unit designed especially for the residential market. Installation by connecting a single UTP cable and configuration via a web interface guarantees that integrators can put the unit into operation quickly and easily. Users will be impressed by the minimalist design, tempered glass surface, 4.3" colour display and intuitive controls. A simply elegant solution for video communication.

Intuitive controls, even for inexperienced users
Designer surface made of tempered glass
Configuration via a web interface

Detailed Specs

Display & Graphics

Screen Size:

4.3"

Screen Resolution:

480 x 272

Touchscreen:

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Product Color:

White

Product Material:

Tempered Glass

Height:

Width:

Depth:

Weight (Approximate):

13.65 oz

Miscellaneous

Application/Usage:

Indoor
Intercom System

Additional Information:

Controls: 7 capacitive buttons with RGB LED backlight
Operation: press and hold the RESET button to restore factory settings
Microphone: integrated
Speaker: integrated, 2W
Induction loop output: 600mV RMS
Codecs: G.711, G.729, G.722, L16/16kHz
Codecs: H.264, H.263, MJPEG
LAN: 10/100BaseT, RJ-45
Recommended cabling: Cat5e or higher
Input type: switching contact (button/relay)
Contact type: normally open (NO)
Contact parameters: up to 50V/5mA, DC
Operating temperature: 0 to 50°C
Relative humidity: 10 to 90% (non-condensing)
Storage temperature: -20 to 70°C
Recommended altitude: 0 to 2000m

TAA Compliant:

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43191513

Reviews

Q&A

Get help from a Barcoding Expert!

The Axis 01936-001 CCTV Camera System is also known as AXC-01936001
