Protection Type:
Surge Protection
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01944-001 CCTV Camera System Overview

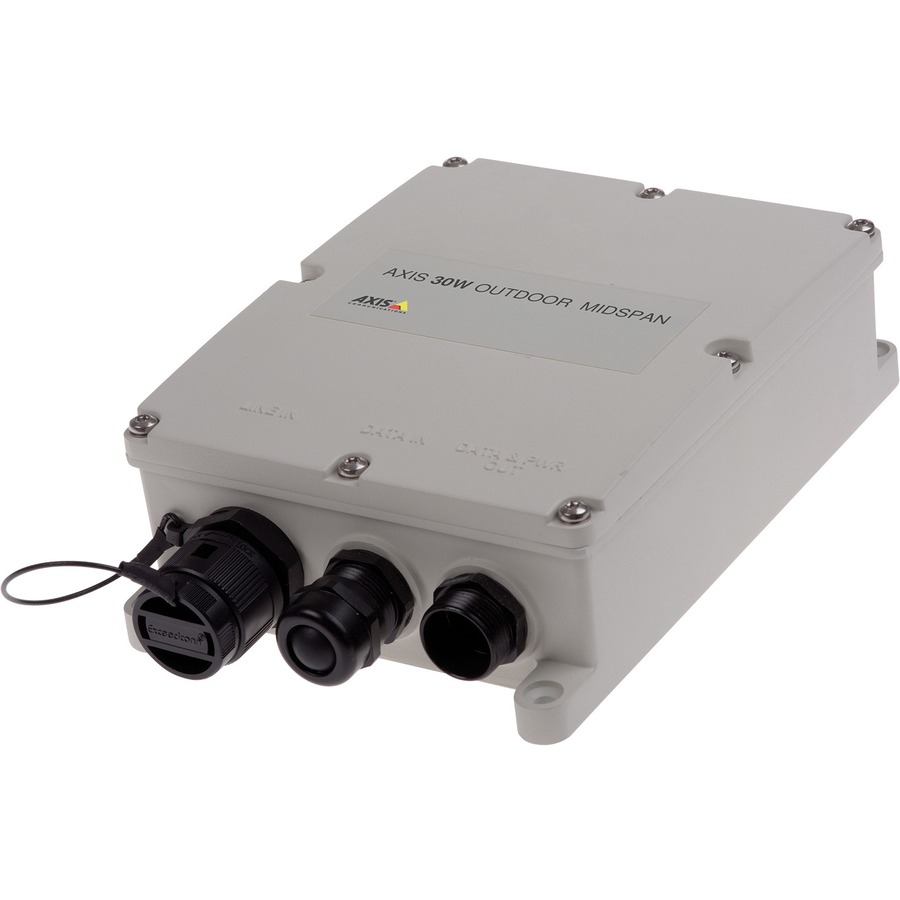

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
- Outdoor-ready, IP66/67- and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240 V AC
- Railway compliant EN 50121-4 and IEC 62236-4
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
54 V DC
Minimum Frequency:
50 Hz
Maximum Frequency:
60 Hz
Maximum Output Power:
30 W
Interfaces/Ports
Input Ports:
1 x 10/100/1000Base-T
Output Ports:
1 x PoE
Physical Characteristics
Form Factor:
Wall/Pole Mountable
Height:
2.4"
Width:
6.7"
Depth:
5.5"
Weight (Approximate):
3.09 lb
Miscellaneous
Package Contents:
- 30W Outdoor Midspan
- Installation Guide
Compatibility:
AXIS Door Controllers:
- A1001
- A1601
- M1065-L
- M1134
- M1135
- M1135-E
- M1137
- M1137-E
- M1145-L
- M2025-LE
- M2026-LE Mk II
- P1214
- P1214-E
- P1224-E
- P1244
- P1245
- P1254
- P1264
- P1265
- P1275
- P1375
- P1375-E
- P1377
- P1377-LE
- P1378
- P1378-LE
- P1435-LE
- P1445-LE-3
- P1447-LE
- P1448-LE
- P1455-LE
- Q1615 Mk III
- Q1615-LE Mk III
- Q1645
- Q1645-LE
- Q1647
- Q1647-LE
- M3015
- M3016
- M3037-PVE
- M3057-PLVE
- M3057-PLVE Mk II
- M3058-PLVE
- M3064-V
- M3065-V
- M3066-V
- M3067-P
- M3068-P
- M3075-V
- M3077-PLVE
- M3115-LVE
- M3116-LVE
- M3205-LVE
- M3206-LVE
- M4206-LV
- M4206-V
- P3227-LV
- P3227-LVE
- P3228-LV
- P3228-LVE
- P3245-LV
- P3245-LVE
- P3245-V
- P3245-VE
- P3247-LV
- P3247-LVE
- P3248-LV
- P3248-LVE
- P3255-LVE
- P3367-V
- P3367-VE
- P3374-LV
- P3374-V
- P3375-LV
- P3375-LVE
- P3375-V
- P3375-VE
- P3715-PLVE
- P3717-PLE
- P3719-PLE
- P3807-PVE
- P9106-V
- Q3515-LV
- Q3515-LVE
- Q3517-LV
- Q3517-LVE
- Q3517-SLVE
- Q3518-LVE
- Q3527-LVE
- Q3615-VE
- Q3617-VE
- Q3708-PVE
- Q3709-PVE
- Q9216-SLV
- T92E20 Outdoor Housing
- T92G20 Outdoor Housing
- T93F20 Outdoor Housing
- A9161
- A9188-VE
- T90C20 Fixed Dome IR-LED
- T90D20 PoE IR-LED
- T90D25 PoE W-LED
- I8016-LVE
- F34 Main Unit
- F34 Surveillance system
- F41 Main Unit
- F44 Dual Audio Input
- M5054
- M5055
- M5065
- M5525-E
- P5414-E
- P5415-E
- P5654-E
- P5655-E
- Q6074
- Q6074-E
- Q6075
- Q6075-E
- Q6128-E
- Q6154-E
- Q6155-E
- P8815-2
- Long Range PoE Extender Kit
- PoE Splitter 5 V
- D2110-VE Security Radar
- C1310-E
- C1410
- P1280-E
- P1290-E
- Q1941-E
- Q1941-E PT Mount
- Q1942-E
- Q1942-E PT Mount
- Q2901-E
- Q2901-E PT Mount
- M7104
- P7304
- Q7411
- Q7424-R Mk II
Certifications & Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3af Type 1 Class 3
- IEEE 802.3at Type 2 Class 4
- EIA 568A
- EIA 568B
Safety:
- IEC/EN/UL 60950-1
- EN 62368-1
- IEC/EN/UL 60950-22
- GS Mark per EN 60950-1
- CCC
- EN 55024
- EN 55035
- EN 55032 Class B
- EN 50121-4,
- IEC 62236-4
- EN 61000 3-2
- EN 61000 3-3
- EN 61000-6-1
- EN 61000-6-2
- FCC Part 15 Class B
- VCCI Class B
- RCM AS/NZS CISPR32 Class B
- ICES-003 Class B
- Meet GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on data and AC lines)
- IEC 60068-2-1
- IEC 60068-2-2
- IEC 60068-2-6
- IEC 60068-2-14,
- IEC 60068-2-27
- IEC 60068-2-64
- IEC/EN 60529
- IP66
- IP67
- EN 61373
- IEC TR 60721-4-5 Class 5M3
- NEMA 250 Type 4X
- IP68
- NEMA 4X-rated
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
7331021069473
EAN:
7331021069473
UNSPSC:
39121004
