Communication Mode:
Full-duplex
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 01995-001 Security Equipment Overview

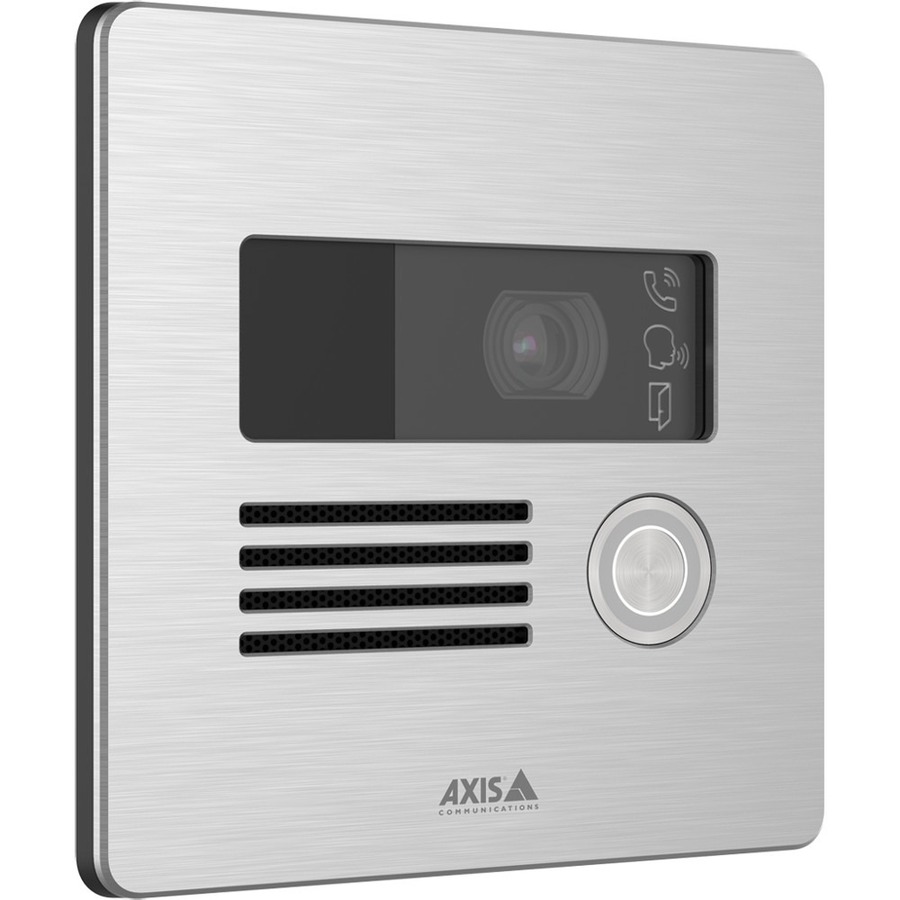

AXIS I8016-LVE Network Video Intercom is a compact and highly robust network intercom designed for two-way communication, video identification, and remote entry control. It offers 5 MP resolution with invisible IR night vision, and exceptional audio volume with echo and noise cancellation to ensure reliable 24/7 identification even in the most demanding situations. Based on open IP standards and interfaces, this network intercom offers great integration possibilities and is a perfect complement to any video surveillance system. Furthermore, it features multiple inputs and outputs for remote control of door locks and other equipment.
- High-quality audio and video
- Easy installation with PoE
- Open interface with IP phone integration, SIP support
- Anti-ligature, vandal-resistant IK10-rated
- IP66/IP69-rated with wall-mount
Technical Information
Camera
Image Sensor Type:
CMOS
Camera Resolution:
5 Megapixel
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
114°
Physical Characteristics
Product Color:
Black
Product Material:
- Stainless Steel
- Plastic
- Zinc
Durability:
Vandal Resistant
Height:
4.9"
Width:
4.9"
Weight (Approximate):
1.98 lb
Miscellaneous
Package Contents:
- I8016-LVE Network Video Intercom
- Installation Guide
- Windows Decoder 1-user License
- Terminal Block Connector
- Allen Key (Resitorx 10)
Application/Usage:
- Surveillance System
- Access Control
Additional Information:
Minimum illumination:
Mounting:
- Color: 0.16 lux at 50 IRE, F2.2
- B/W: 0.00 lux at 50 IRE, F2.2, with IR illumination on
- Model: ARTPEC-7
- Memory: 2048 MB RAM, 512 MB Flash
- Video compression:
- H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
- H.265 (MPEG-H Part 2/HEVC) Main Profile
- Motion JPEG
- Resolution: 2592x1944 240x160
- Frame rate: Up to:30/25 fps (60/50 Hz) in all resolutions
- Video streaming:
- Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
- Axis Zipstream technology in H.264 and H.265
- Controllable frame rate and bandwidth
- VBR/ABR/MBR H.264/H.265
- Video streaming indicator
- Image settings: Saturation, contrast, brightness, sharpness, forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, defogging, compression, text and image overlay, polygon privacy mask
- Audio encoding:
- 24bit LPCM, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM
- 8 kHz, Opus 8/16 kHz
- Configurable bit rate
- Audio input/output:
- Line input, line output, built-in microphone (can be disabled), built-in speaker, automatic gain control
- Built-in speaker
- 78 dB sound pressure at 1 kHz at 1 m distance (84 dB at 0.5 m / 20 in)
- Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module, Axis Edge Vault with Axis device ID
- Supported protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, SIP, LLDP, Syslog, Link-Local address (ZeroConf)
Mounting:
- Recessed mounting using US 2-Gang-, 4 inch square installation boxes or AXIS TA8201 Recessed Mount
- Wall Mounting using TI8202 Wall Mount Back Box
- Wall Mounting with conduit pipe using TI8202 Wall Mount Back Box and TI8603 Conduit Adapter
- -40 °C to 60 °C (-40 °F to 140 °F)
- Start-up temperature: -40 °C (-40 °F )
- Humidity 10-100% RH (condensing)
Country of Origin:
Poland
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021070561
EAN:
7331021070561
UNSPSC:
43191513
