Axis 02060-001 Security Camera

Axis P3818-PVE  -  Security Cameras, Axis Panoramic P3818-PVE, 13 Megapixel Outdoor 4K Network Camera, Color, Dome, TAA Compliant, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.265, H.264, Zipstream, 5120 x 2560, 3.20 mm Fixed Lens, RGB CMOS, Junction Box Mount, Wall Mount, Ceiling Mount, Recessed Mount, Pendant Mount, Pole Mount, IK10, IP66, IP67, Impact Resistant, Vandal Resistant
  • Network camera - Helps achieve high-quality video results
  • Up to 5120 x 2560 video resolution
  • Features RGB CMOS sensor
  • 3.20 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/2 maximum aperture for productive capturing according to focal length and lighting conditions
  • 4K recording format for exceptional video quality with maximum productivity
  • Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
  • Junction Box Mount mount type ensures optimal results and maximum convenience
  • Wide Dynamic Range feature for better reliance and usability
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
Add to Quote
$2,425.37
In Stock
Axis Parts Accessory Model Overview
Products and parts from Axis.

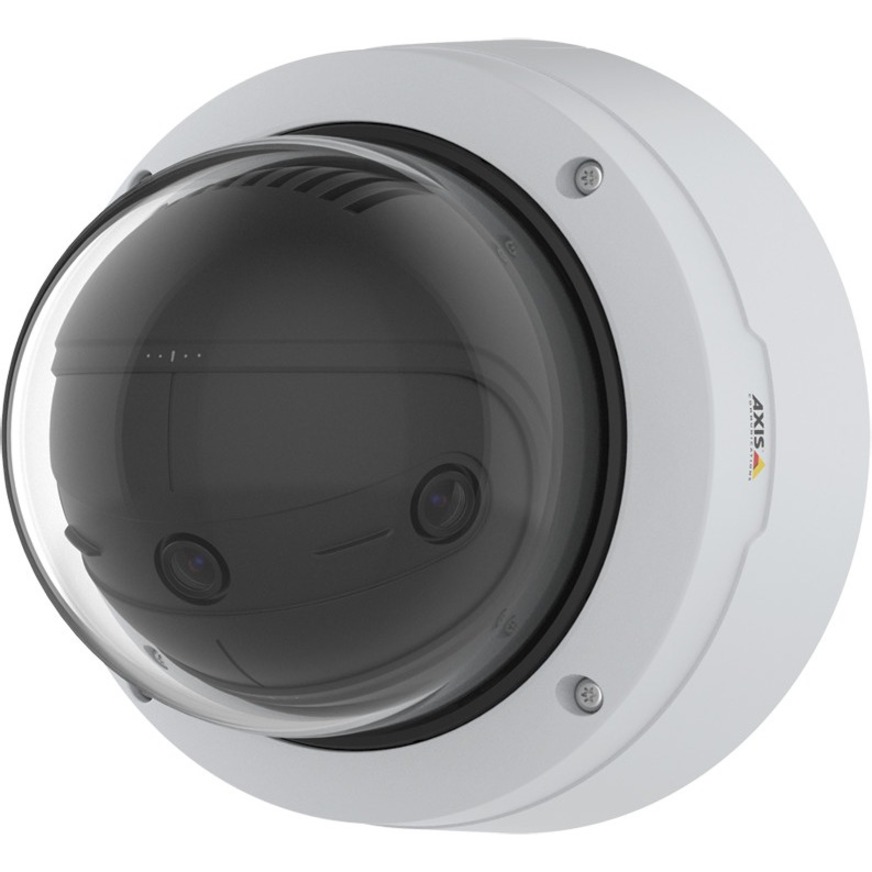

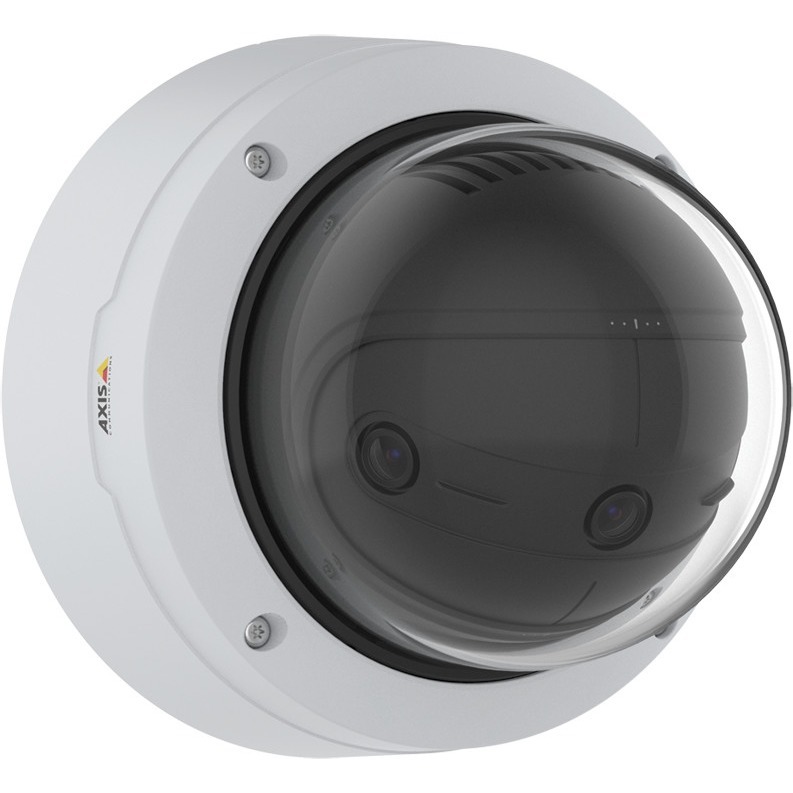

Axis 02060-001 Security Camera Overview

With 13 MP resolution, AXIS P3818-PVE offers seamless stitching of all three images. It delivers a 180º panoramic overview of extensive areas with excellent image usability for quick and intuitive situational awareness.

Complete coverage with support for audio input

AXIS P3818-PVE is perfect when you need to see the whole picture. This multisensor camera offers seamless stitching of all three images to deliver a seamless 180° panoramic overview of extensive areas and excellent image usability. You get 180° horizontal coverage, and 90° vertical coverage with no blind spots. It's possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Featuring edge-to-edge technology, it's easy to add support for audio-out using AXIS network speakers, and audio-input directly into the camera enables you to listen in to transactions or incidents.

Brilliant, seamless images

The single smooth and cohesive video stream is what really sets AXIS P3818-PVE apart. This 13 MP multisensor camera offers seamless 180° panoramic coverage and captures ultra-high resolution images with incredible details up to 30 fps. With seamless stitching across all 3 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center. And, the camera automatically optimizes white balance and exposure time. Furthermore, thanks to Forensic WDR, it offers excellent image usability.

Cost-efficient, flexible, and secure

This cost-efficient camera gives you the benefits of three cameras while paying for just one. And, fewer cameras are needed to cover large areas. It features remote pan/tilt/roll functionality for fast, cost-efficient installation. Additionally, it offers a wide variety of mounting options - recessed, flush, pendant, or even back-to-back. Plus, it offers adjustable positions for fast and easy mounting on walls, ceilings, or in a corridor. AXIS P3818-PVE offers built-in cybersecurity features including Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.

Built-in cybersecurity features

Prevent unauthorized access and safeguard your system

Wide Dynamic Range - WDR

For maximum forensic value and usability in scenes with both very bright and very dark areas.

Lightfinder

Capture color images in low-light conditions.

Technical Information
Recording Formats:
4K
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 180° Vertical field of view: 90°
Effective Camera Resolution:
13 Megapixel
Video
Video Formats:
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • H.265
  • H.264
  • Zipstream
Maximum Video Resolution:
5120 x 2560
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.20 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/91000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Wall Mount
  • Ceiling Mount
  • Recessed Mount
  • Pendant Mount
  • Pole Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Vandal Resistant
Product Color:
White
Height:
6.7"
Diameter:
7.7"
Weight (Approximate):
4.85 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Day/Night
  • Built-in Microphone
  • Removable IR Cut-off Filter
  • SD Card Local Storage
  • White Balance
  • Noise Reduction
  • Privacy Masking
  • Auto Gain Control
  • Password Protection
  • HTTPS Encryption
  • Audio Detection
  • Active Tampering Alarm
  • Motion Detection
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP67
TAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 7331021071742
EAN: 7331021071742
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 02060-001 Security Camera is also known as AXC-02060001
