Axis 02101-004 Data Networking

Axis  -  Axis Communications AXIS D8004 Unmanaged PoE Switch, 4 Ports, 2 Layer Supported, 62.50 W Power Consumption, 60 W PoE Budget, Twisted Pair, PoE Ports, Desktop, 3 Year Limited Warranty
  • Effectively increases available bandwidth on your network
  • Quickly and easily set up a wired network with 4 networking ports
  • PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • The desktop installation makes it ideal for deployments outside the wiring closet
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More
Add to Quote
$123.08
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 02101-004 Data Networking Overview
  • 60 W PoE power budget
  • 4-port 10/100 Mbps 802.3af/at PoE+
  • Palm-sized, metal casing
  • Plug and play installation
  • Level VI energy efficiency compliance

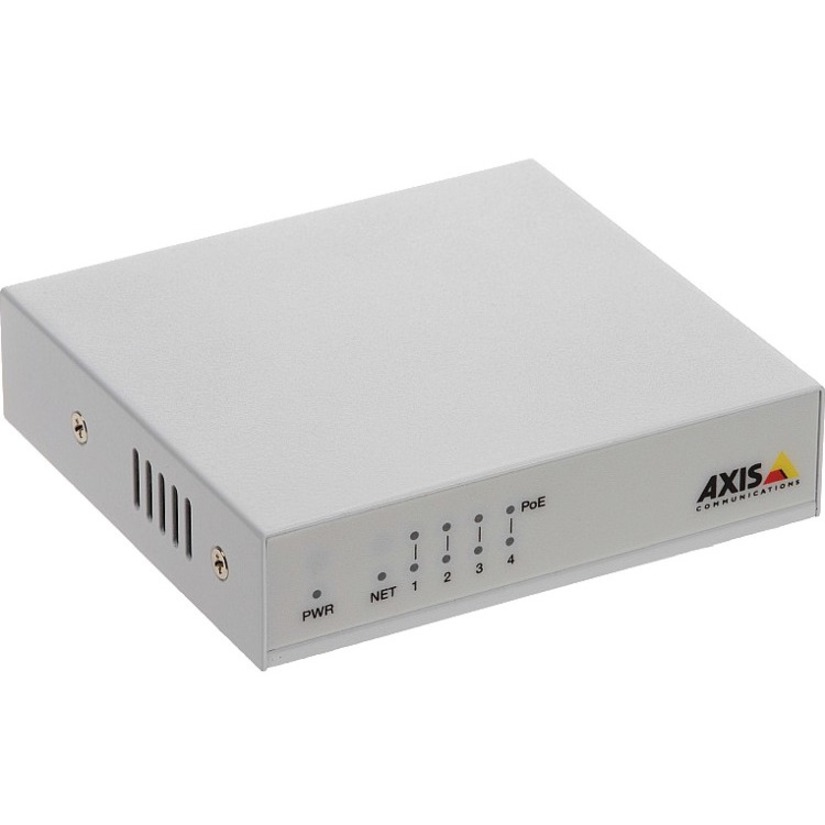

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 as a central power source simplifies both installation and maintenance. The switch, together with an Axis surveillance card inserted in an Axis camera, is perfect for small systems with a few devices and basic video storage requirements. AXIS D8004 is also ideal when it's not possible to pull multiple cables. If there's local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 can provide Power over Ethernet (PoE) for all 4 products.

Interfaces/Ports
Total Number of Network Ports:
4
Port/Expansion Slot Details:
4 x Fast Ethernet PoE+
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
60 W
Power Source:
  • Power Supply
  • PoE+
Power Consumption:
62.50 W
Physical Characteristics
Form Factor:
Desktop
Height:
0.8"
Width:
3.5"
Depth:
3.1"
Weight (Approximate):
6.07 oz
Miscellaneous
Package Contents:
  • D8004 Unmanaged PoE Switch
  • Power Cord
  • Power Adapter
  • 4 x Rubber Feet
  • 2 x Brackets
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7331021072565
EAN: 7331021072565
UNSPSC: 43222612
