Axis 02189-001 Security Camera

Axis XF40-Q1785  -  Security Cameras, Axis XF40-Q1785, 50C UL 2 Megapixel Outdoor Full HD Network Camera, Color, Box, TAA Compliant, H.264, H.264 (MPEG-4 Part 10/AVC), H.264 BP, H.264 (MP), Motion JPEG, 1920 x 1080, 4.30 mm- 137 mm Varifocal Lens, 32x Optical, RGB CMOS, Wall Mount, Pole Mount, Bracket Mount, IP66, IP67, Explosion Proof, Weather Resistant
  • 2 MP, HDTV 1080p at up to 60 fps
  • Forensic WDR and Axis Lightfinder
  • Electronic image stabilization
  • -50 °C to 60 °C (-58 °F to 140 °F)
  • Certified for Class I/II/III, Division 1
Read More
Add to Quote
$11,093.91
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 02189-001 Security Camera Overview

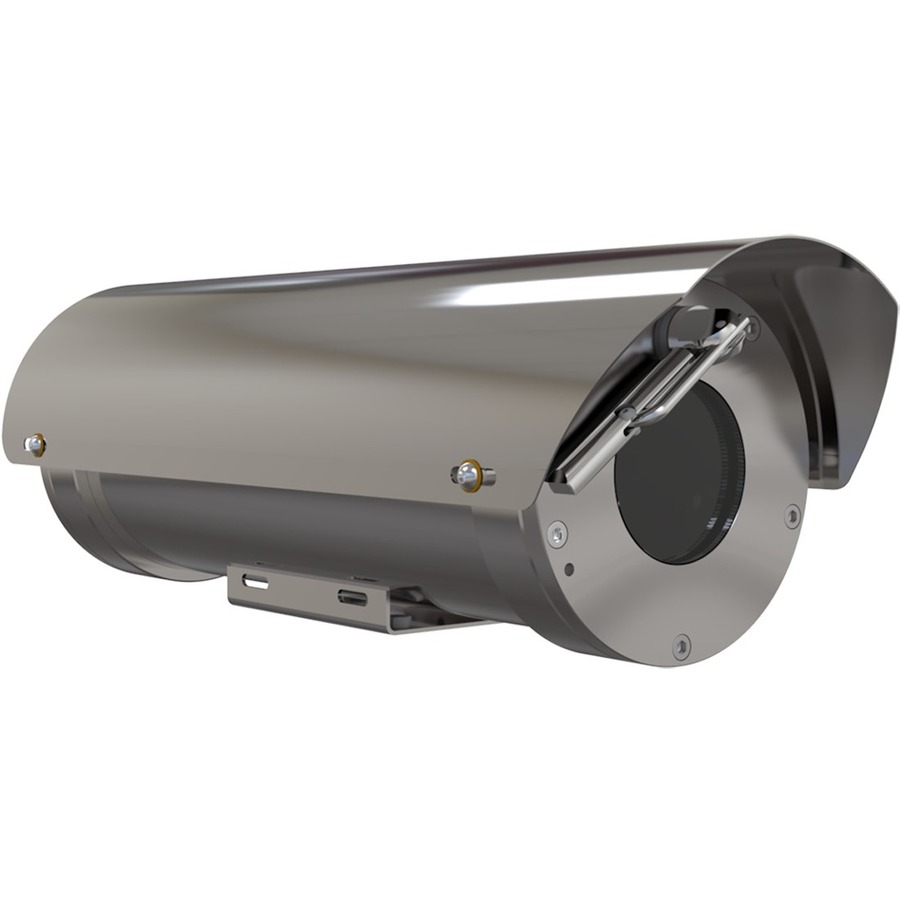

Ideal for onshore, offshore, marine, and heavy industrial applications, XF40 Q1785 comes enclosed in a robust explosion-protected stainless-steel housing and offers outstanding 32x optical zoom.

Tough in extreme environments

XF40-Q1785 is certified for use in Class I//II/III, Division 1 to ensure safe operation in potentially combustible environments. It can withstand temperatures between -50 °C to 60 °C (-58 °F to 140 °F) and includes an integrated long-life wiper-ideal for dirty, grimy environments that are exposed to adverse weather conditions. In addition, electronic image stabilization (EIS) greatly improves video quality in situations where the camera is subject to vibration such as from heavy machinery or gusty winds. Plus, it allows you to install your camera out of reach on high walls, poles, or ceilings with minimum impact on image quality.

Wherever you need it

XF40-Q1785 is designed for 24/7 long-range surveillance and provides high resolution footage from a distance. The camera's 32x optical zoom combined with HDTV 1080p resolution offers superb zoomed-in views of people and objects of interest. This allows you to install the camera far away from the object and still capture all the details. Featuring Axis Lightfinder and Axis Forensic WDR it delivers true colors and great details in challenging light or near darkness. And Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality.

And there's more...

XF40-Q1785 includes preinstalled analytics that help you get the most from your surveillance system. It comes with AXIS Guard Suite pre-installed to help reduce false alarm. And thanks to gatekeeper and scene profiles, you can customize your surveillance solution to specific scene requirements. Plus, with barrel distortion correction you can rely on great image quality, even at the edges of the image. Furthermore, like all our explosion-protected cameras, you can use XF40-Q1785 for visual verification of safety information from your sensor system. And it's possible to integrate with other applications such as man-down alarms, hardhat detection, and more.

Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 60°-2.3° - Vertical field of view: 39°-1.3°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 BP
  • H.264 (MP)
  • Motion JPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
137 mm
Lens Included:
Yes
Minimum Aperture:
f/4
Maximum Aperture:
f/1.4
Optical Zoom:
32x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
  • Wall Mount
  • Pole Mount
  • Bracket Mount
Form Factor:
Box
Durability:
  • Explosion Proof
  • Weather Resistant
Product Color:
Stainless Steel
Weight (Approximate):
46.30 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wiper
  • Wide Dynamic Range
  • Electronic Image Stabilization
  • Defog
  • White Balance
  • Privacy Masking
  • Password Protection
  • HTTPS Encryption
  • Active Tampering Alarm
  • SD Card Local Storage
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
  • IP66
  • IP67
TAA Compliant:
Yes
Item Numbers
GTIN: 7331021074453
EAN: 7331021074453
UNSPSC: 46171610
