Axis 02234-001 Security Camera

Axis  -  Security Cameras, Axis, 2 Megapixel HD Network Camera, Color, Dome, TAA Compliant, 49.21 ft, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG, H.264, H.265, 1920 x 1080, 3.40 mm - 8.90 mm Varifocal Lens, 2.6x Optical, RGB CMOS, Junction Box Mount, Wall Mount, Ceiling Mount, Bracket Mount, Recessed Mount, Pendant Mount, IK10, IP66, Vandal Resistant, Weather Resistant, Impact Resistant
  • For remote surveillance needs, this network camera is best suited
  • Up to 1920 x 1080 video resolution
  • Features RGB CMOS sensor
  • 8.90 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.8 maximum aperture for better light absorption and dependable, better-quality results
  • 2.6x optical zoom for bringing the subject closer for maximum surveillance efficiency
  • Up to 49.21 ft of night vision
  • HD recording format for stunning, vivid video results with maximum efficiency
  • Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
  • Junction Box Mount mount type is reliable and allows trouble-free and easy usage
Read More
Add to Quote
$1,612.32
In Stock
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 02234-001 Security Camera Overview

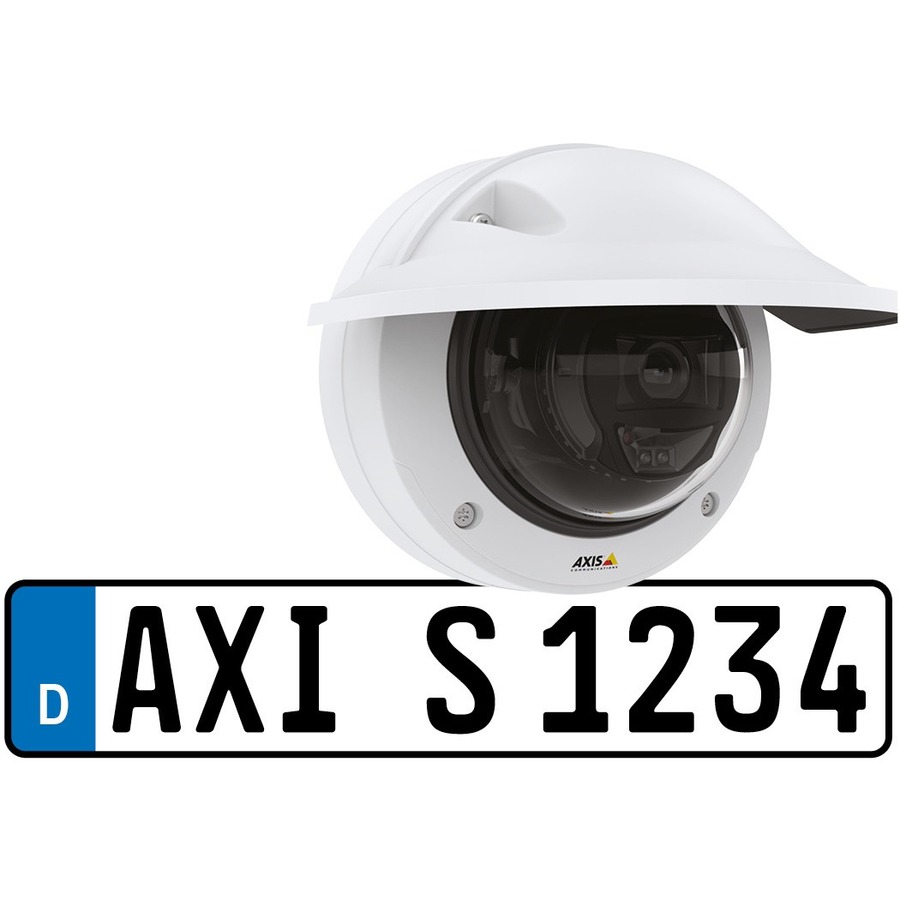

AXIS P3245-LVE-3 includes an HDTV 1080p fixed dome camera and comes with AXIS License Plate Verifier preinstalled. This easy-to-install kit verifies license plates against a list of authorized or unauthorized number plates stored in the camera. Processing and storage take place in the camera, so there's no need for expensive servers, and bandwidth requirements are reduced. This vandal-resistant camera includes shock detection, so it's safe to use even when installed at lower, more accessible heights. And Axis OptimizedIR ensures the ideal image settings for license plate reading 24/7. Furthermore, it offers integration with video management systems (VMS) for complex requirements.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
49.21 ft
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 100°-36° Vertical field of view: 53°-20°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3.40 mm
Maximum Focal Length:
8.90 mm
Lens Included:
Yes
Maximum Aperture:
f/1.8
Optical Zoom:
2.6x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Wall Mount
  • Ceiling Mount
  • Bracket Mount
  • Recessed Mount
  • Pendant Mount
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Weather Resistant
  • Impact Resistant
Product Color:
Semi-white
Height:
4.1"
Diameter:
5.9"
Weight (Approximate):
1.80 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Removable IR Cut-off Filter
  • White Balance
  • Day/Night
  • Auto Gain Control
  • Defog
  • Wide Dynamic Range
  • Privacy Masking
  • PTZ
  • Password Protection
  • HTTPS Encryption
  • SD Card Local Storage
  • Cross Line Detection
  • Motion Detection
  • Tampering Alarm
  • Audio Detection
  • Built-in Infrared Illuminator
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Poland
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN: 7331021075153
EAN: 7331021075153
UNSPSC: 46171610
