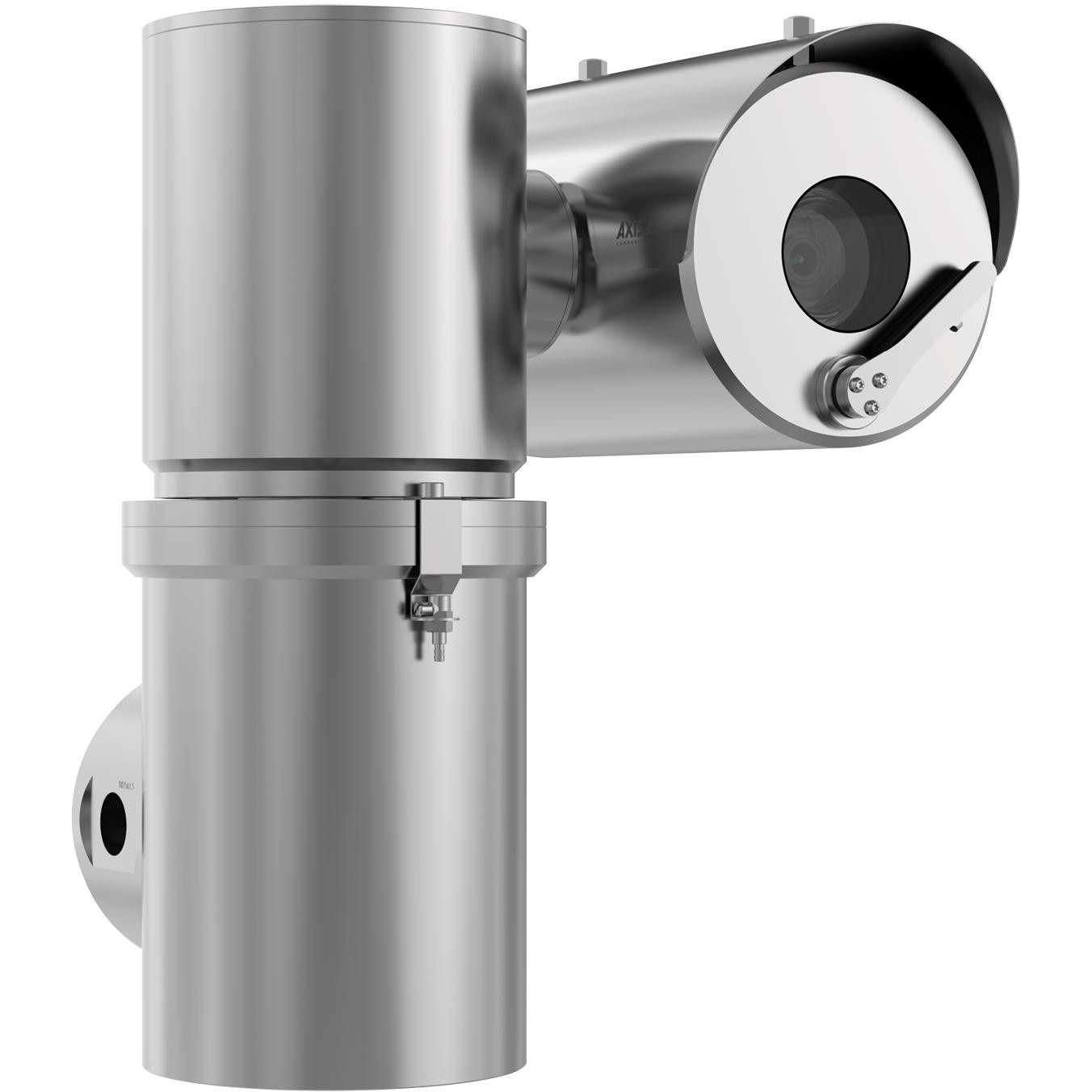

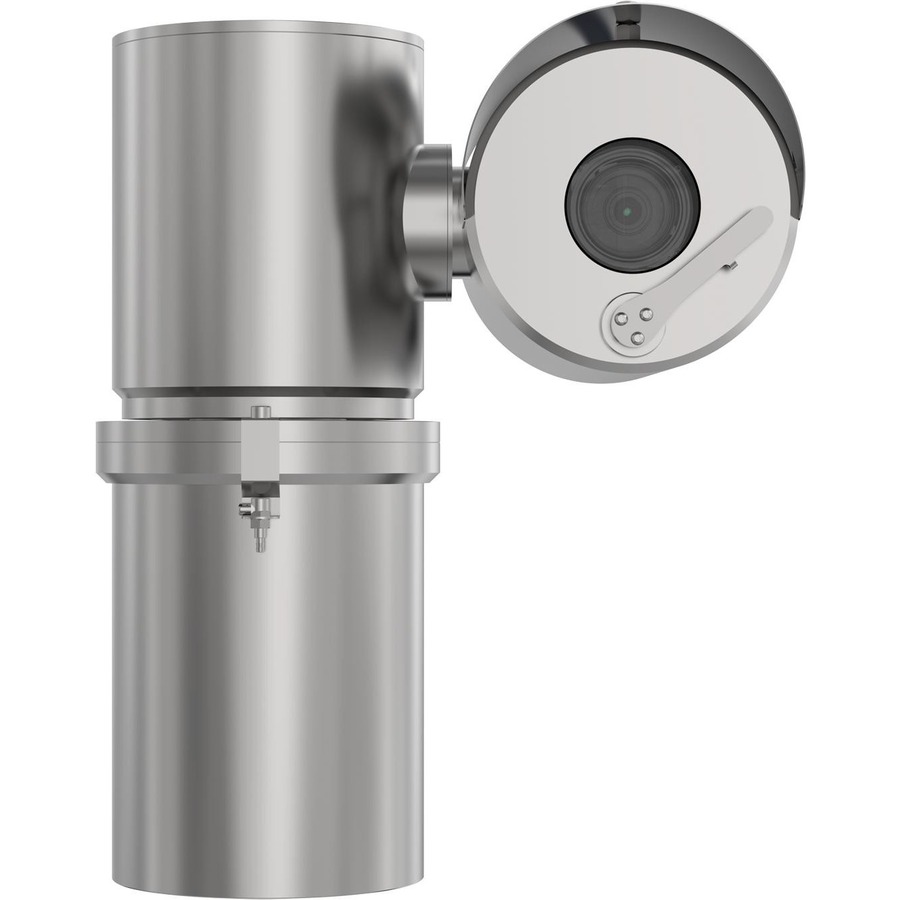

Axis 02278-001 Security Camera

Axis XPQ1785  -  Security Cameras, Axis, XPQ1785
  • Up to 1920 x 1080 video resolution
  • Features RGB CMOS sensor
  • 137 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/1.4 maximum aperture for better light absorption and dependable, better-quality results
  • 32x optical zoom ensures maximum surveillance productivity without compromising quality
  • Full HD recording format for a lively video quality experience with maximum dependability
  • Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
  • AC power source type for your network camera provides optimal performance with maximum usability
  • Wall Mount mount type allows convenient, easy usage with maximum efficiency
  • PTZ feature for maximum productivity with added dependability
Read More
Add to Quote
$24,436.38
In Stock
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 02278-001 Security Camera Overview
Ideal for health, safety, environment (HSE) applications within potentially combustible areas, this robust PTZ camera includes early smoke and fire detection analytics. It has worldwide certifications for use in Class I/II/III Division 1 and Zone 1,21.

Protect your personnel and production

Featuring smoke alert analytics, AXIS XPQ1785 serves as an additional layer of safety, monitoring for signs of smoke or fire. If detected, operators are alerted so they can assess the situation to determine appropriate responses. Additionally, it allows you to safeguard the production processes from a distance. This helps ensure that you only send personnel into restricted, potentially combustible environments when necessary.

Total situational awareness

AXIS XPQ1785 offers HDTV 1080p resolution at up to 60 fps. It features 32x optical zoom and a continuous 360° pan and +/- 90° tilt rotation for fast camera repositioning and smooth, continuous tracking of objects. It's got Axis Forensic WDR for clarity even when there are both dark and light areas in the scene. Thanks to Lightfinder, you get sharp, color images in low light. And Axis Zipstream provides exceptional savings on bandwidth and storage requirements without compromising image quality. Plus, electronic image stabilization keeps the picture steady when the camera is exposed to vibrations.

Globally certified and suitable for all environments

AXIS XPQ1785 is a globally certified Class I/II/III Division 1 and Zone 1,21 stainless steel (316L) PTZ camera for use in hazardous areas (according to NEC, CEC, IECEx, ATEX, and more). It can withstand wide temperatures ranging from -60°C to 60°C (-76°F to 140°F). And, it's IP66, IP67, IP68-rated for protection against water and dust ingress. Furthermore, ease of installation is supported by a compact and low-weight design, with both RJ45 and SFP for fiber or coax and 110-240 V AC power input.

Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Night Vision:
Yes
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view: 60°-2.3° Vertical field of view: 39°-1.3°
Video
Video Formats:
  • Zipstream
  • H.264
  • H.264B
  • H.264M
  • Motion JPEG
  • H.264B (MPEG-4 Part 10/AVC)
  • H.264M (MPEG-4 Part 10/AVC)
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
137 mm
Lens Included:
Yes
Minimum Aperture:
f/4
Maximum Aperture:
f/1.4
Optical Zoom:
32x
Exposure
Shortest Shutter Speed:
1/66500 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Power Source Type:
AC
Physical Characteristics
Mount Type:
  • Wall Mount
  • Pole Mount
Form Factor:
Turret
Durability:
  • Weather Proof
  • Explosion Proof
Height:
14.6"
Width:
9.4"
Depth:
11.9"
Weight (Approximate):
50.71 lb
Environmental Conditions
Minimum Operating Temperature:
-76°F (-60°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • PTZ
  • Smoke Detector
  • Motion Detection
  • Wide Dynamic Range
  • Day/Night
  • Electronic Image Stabilization
  • Password Protection
  • HTTPS Encryption
  • Defog
  • White Balance
  • Cross Line Detection
  • Video Management System
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
  • IK10
  • IK08
Ingress Protection Rating:
  • IP67
  • IP66
  • IP68
Item Numbers
GTIN: 7331021075658
EAN: 7331021075658
UNSPSC: 46171610
