Axis 02517-001 Security Camera

The Axis 02517-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Axis Q8615-E  -  Security Cameras, Axis Q8615-E, 60 Hz 2 Megapixel Outdoor Full HD Network Camera, Zipstream, H.264 (MP), H.264 BP, H.264 HP, Motion JPEG, H.265/H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), 1920 x 1080, 6.91 mm- 214.64 mm Varifocal Lens, 31.1x Optical, CMOS, IK10, IP66, Vandal Resistant
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 214.64 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.36 maximum aperture for reliable, detailed, and sharp output with added dependability
  • 31.1x optical zoom for desired image clarity and maximum capturing convenience
  • Full HD recording format for a lively video quality experience with maximum dependability
  • Varifocal lens type to ensure maximum surveillance dependability and optimal performance
  • AC power source type for your network camera provides optimal performance with maximum usability
  • Wide Dynamic Range feature for better reliance and usability
Read More
Add to Quote
Axis Parts Accessory Model Overview
Products and parts from Axis.

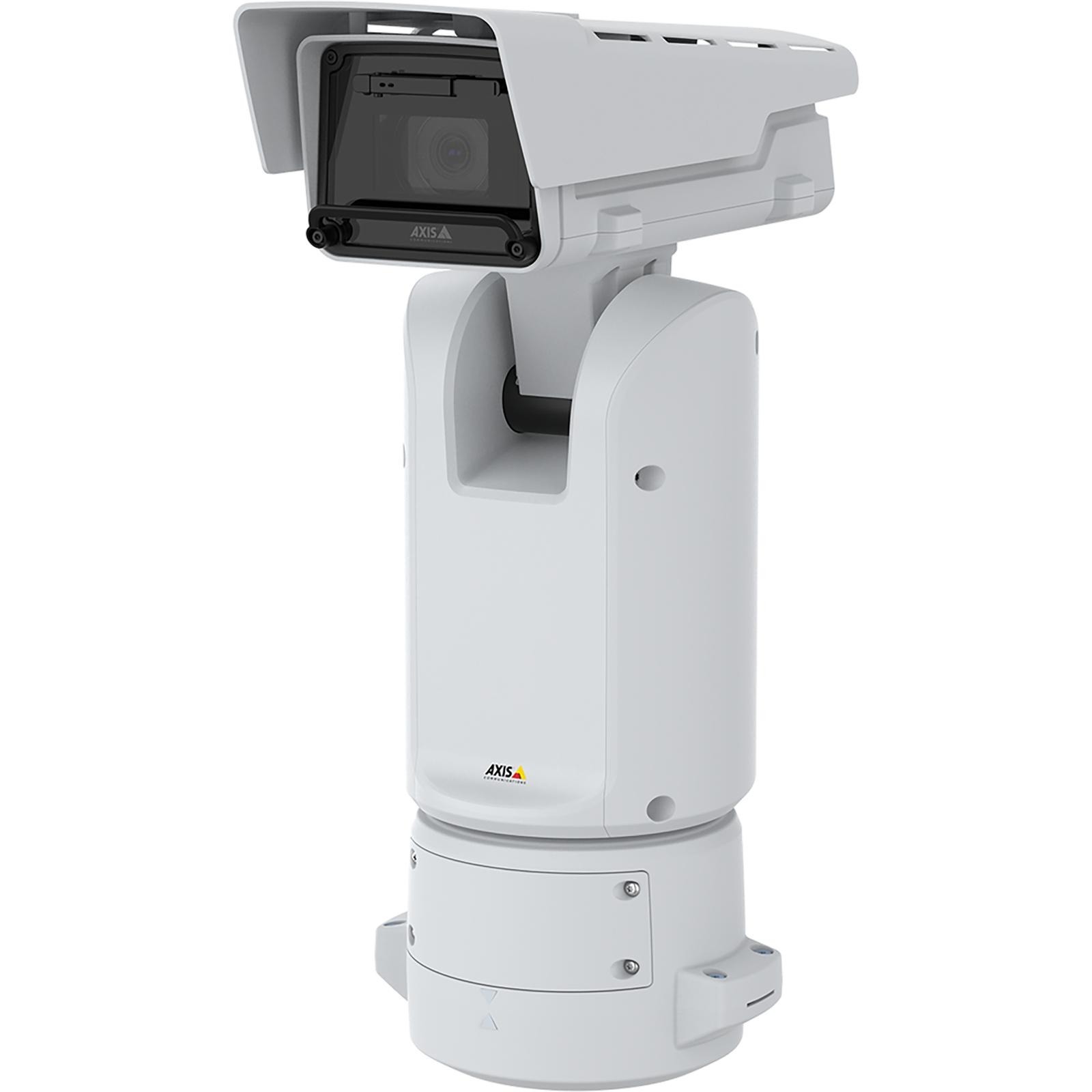

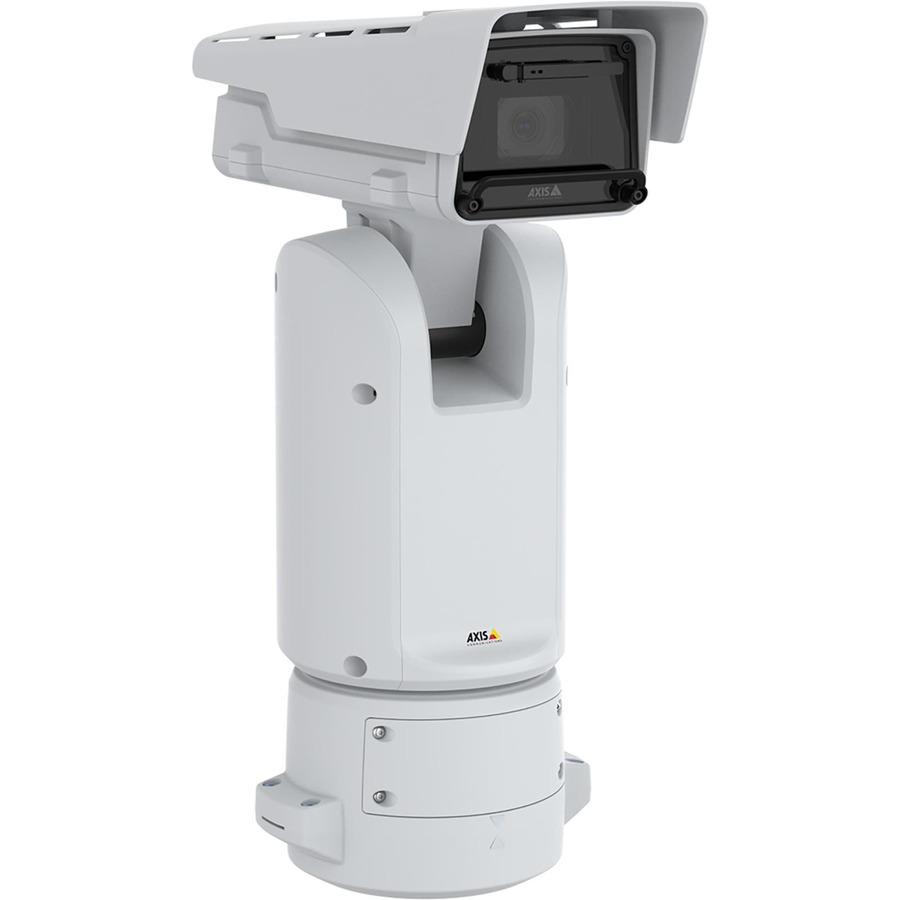

Axis 02517-001 Security Camera Overview

Designed for wide and long-distance surveillance, this high-performance positioning camera features a 1/2" sensor with 31x optical zoom for outstanding image quality every time. Plus, built-in intelligent analytics alert you when needed.

Outstanding image quality every where

Featuring HDTV 1080p resolution with 31x optical zoom, AXIS Q8615-E delivers outstanding image quality. Ideal for both wide and long-distance surveillance, this positioning camera can be column-mounted, on poles or walls for a continuous, unobstructed 360° panoramic view and a ground-to-sky view from -90° to +45°. Including a very light-sensitive 1/2" inch sensor, Forensic WDR, and Lightfinder it ensures sharp, clear images even in extreme low-light conditions. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Plus, IR is available as an optional accessory so you can capture images even in complete darkness.

Intelligent protection

This high-performance positioning camera comes with AXIS Guard Suite analytics for detecting motion, intrusion, and loitering. It also offers autotracking functionality. And active gatekeeper automatically moves the camera to a preset position when motion is detected in a pre-defined area. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Plus, it offers built-in cybersecurity features to prevent unauthorized access and safeguard your system. Furthermore, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.

Flexible and cost-effective

AXIS Q8615-E offers flexible cable management for efficient installation. And you can install it anywhere you want- on columns, poles, walls, and corners. Thanks to a SFP slot, it supports long-distance fiber connection. This also helps limit potential points of failure in your system. Furthermore, an integrated, long-life silicone wiper ensures cost-effective maintenance from remote locations.

Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal field of view 60.6 - 2.0 ° , Vertical field of view 36.5 - 1.1 °
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • Zipstream
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • Motion JPEG
  • H.265/H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
6.91 mm
Maximum Focal Length:
214.64 mm
Lens Included:
Yes
Minimum Aperture:
f/4.6
Maximum Aperture:
f/1.36
Optical Zoom:
31.1x
Exposure
Shortest Shutter Speed:
1/111000 Second
Longest Shutter Speed:
1/2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 28 V DC
  • 28 V AC
Power Source Type:
  • AC
  • DC
Physical Characteristics
Durability:
Vandal Resistant
Product Color:
White
Weight (Approximate):
31.75 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Day/Night
  • Motion Detection
  • HTTPS Encryption
  • Password Protection
  • SD Card Local Storage
  • Privacy Masking
  • Defog
  • White Balance
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Item Numbers
GTIN: 7331021078819, 7331021078833
EAN: 7331021078819, 7331021078833
UNSPSC: 46171610
