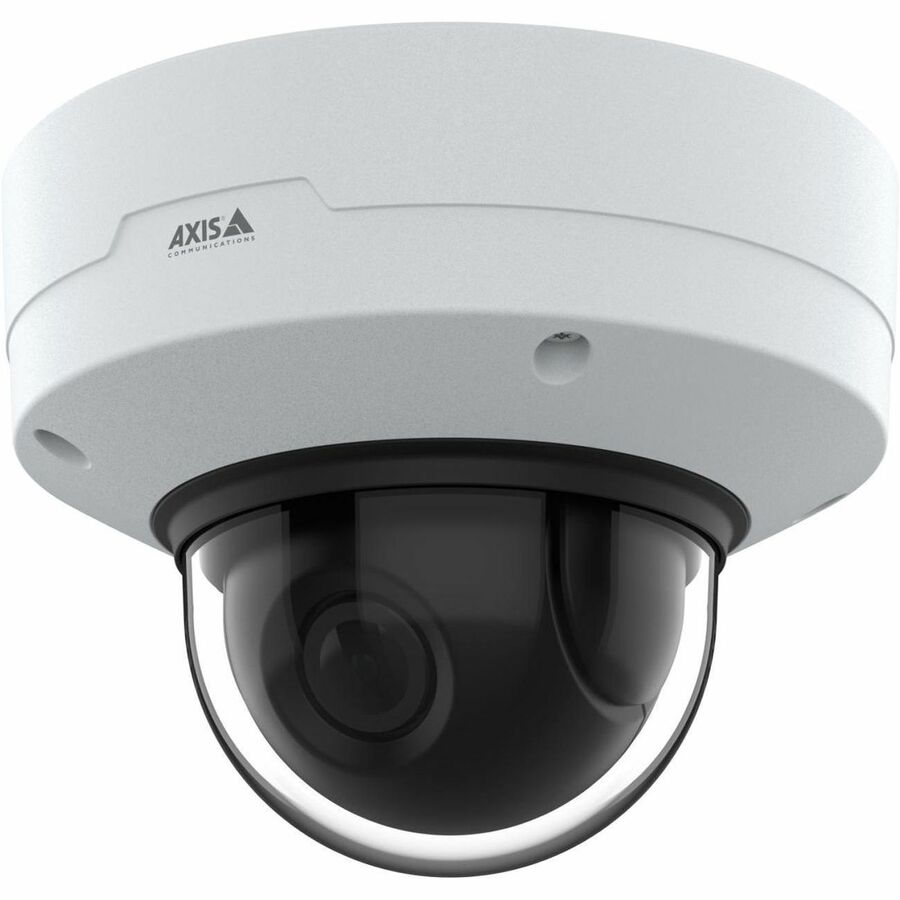

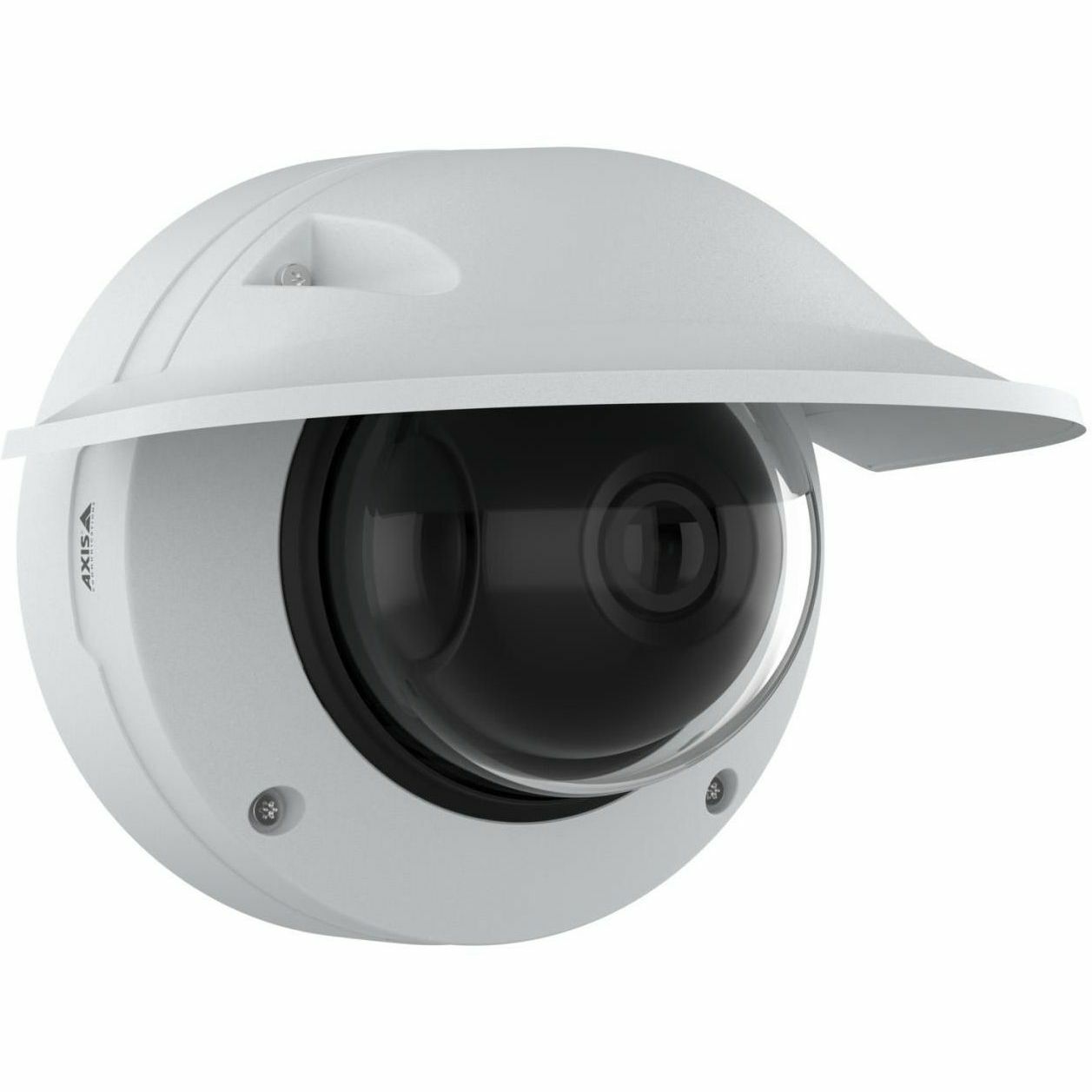

Axis 02616-004 Security Camera

Axis Q3626-VE  -  Security Cameras, Axis Q3626-VE
  • Network camera - Helps achieve high-quality video results
  • Up to 2688 x 1512 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 8.60 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
  • f/1.5 maximum aperture for reliable, detailed, and sharp output with added dependability
  • 2x optical zoom for bringing the subject closer for maximum surveillance efficiency
  • Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
  • DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
  • Back Light Compensation (BLC) feature for maximum productivity with added dependability
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
Add to Quote
$1,749.92
Axis Parts Accessory Model Overview
Products and parts from Axis.
Technical Information
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/1.8"
Color Supported:
Color
Field of View:
Horizontal field of view: 103°-52° Vertical field of view: 56°-30°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • Zipstream
  • Motion JPEG
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution:
2688 x 1512
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
8.60 mm
Lens Included:
Yes
Minimum Aperture:
f/2.4
Maximum Aperture:
f/1.5
Optical Zoom:
2x
Exposure
Shortest Shutter Speed:
1/91000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Gigabit Ethernet
Protocols:
  • IPv4
  • IPv6 USGv6
  • ICMPv4/ICMPv6
  • HTTP
  • HTTPS
  • TLS
  • FTP
  • SFTP
  • SMTP
  • SNMP (v1/v2c/v3)
  • DNSv6
  • DNS
  • NTP
  • RTSP
  • IGMPv1/v2/v3
  • DHCPv4/v6
  • LLDP
  • MQTT
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 10 V DC
  • 28 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Form Factor:
Dome
Product Color:
White
Height:
5.6"
Diameter:
7.2"
Weight (Approximate):
4.63 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • Wide Dynamic Range
  • 3D Digital Noise Reduction
  • Noise Detection
  • Mirror
  • Password Protection
  • Cross Line Detection
  • Vehicle Detection
  • Human Detection
  • Motion Detection
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP6K9K
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
Country of Origin:
Cambodia
TAA Compliant:
Yes
Item Numbers
GTIN: 7331021081390
EAN: 7331021081390
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Axis 02616-004 Security Camera is also known as AXC-02616004
