Fixed Focal Length:
2.80 mm
Axis Parts Accessory Model Overview
Products and parts from Axis.

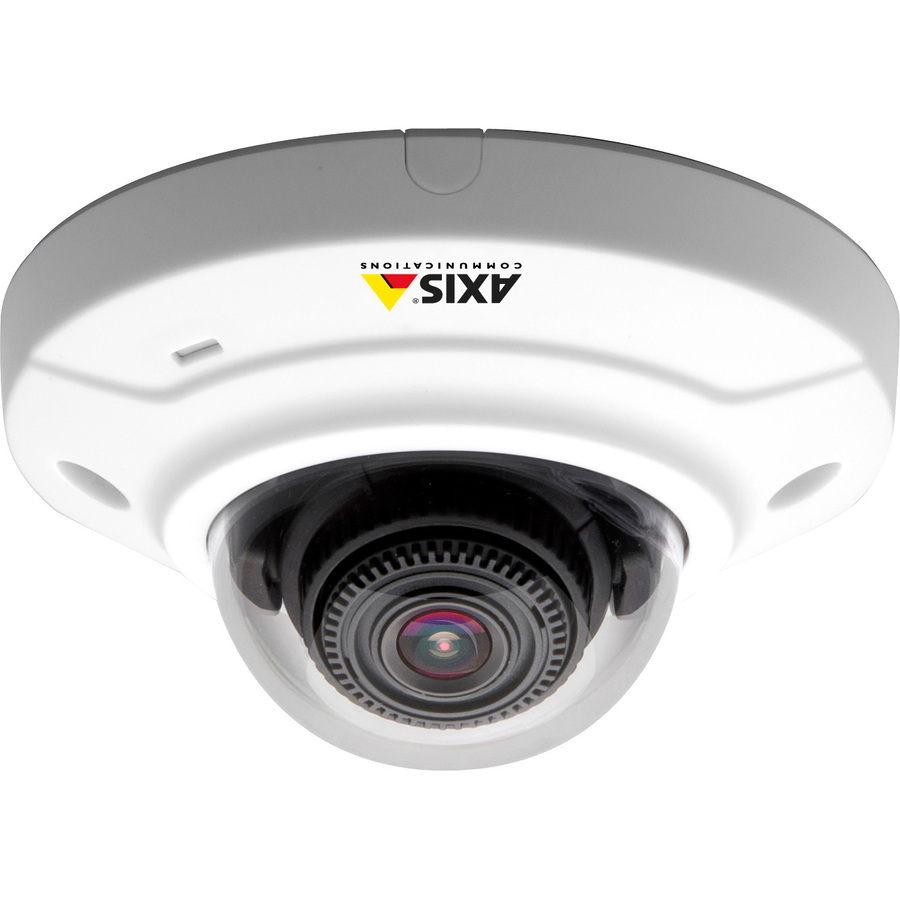

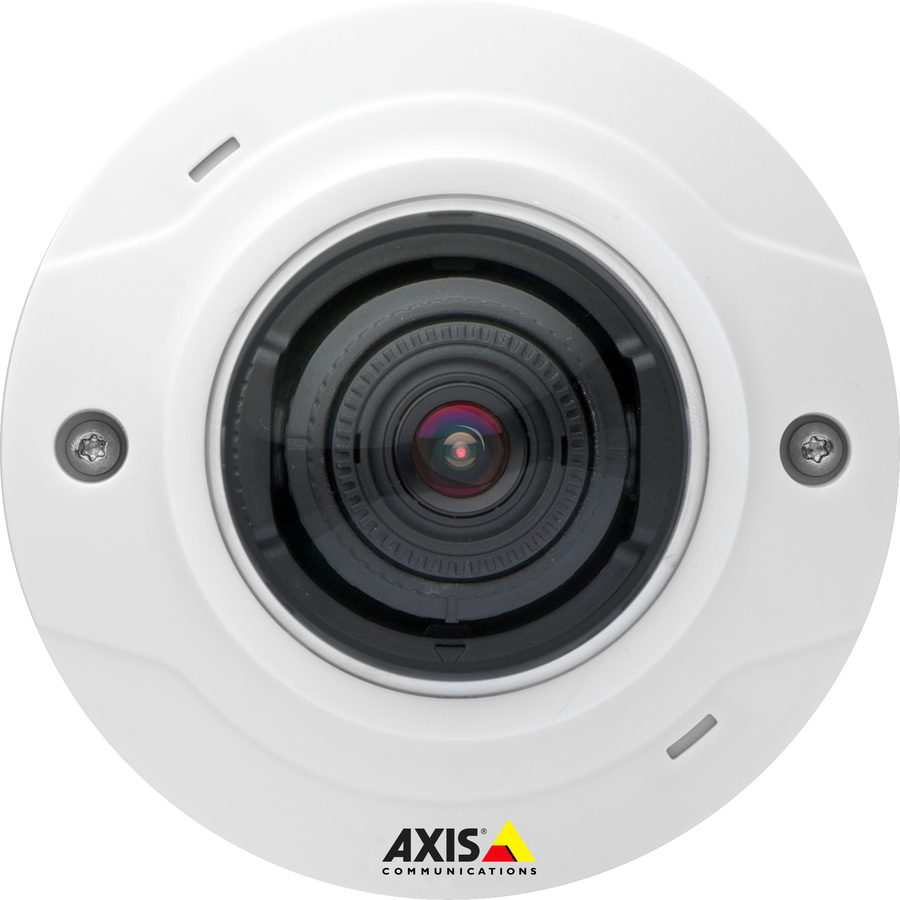

Axis 0517-001 Security Camera Overview
AXIS M30 Series addresses the market's need for affordably priced, small and easy-to-install indoor fixed domes with HDTV performance. They are ideal for retail stores, hotels, schools, banks and offices.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.7"
Minimum Illumination:
1.5 lux
Maximum Illumination:
100000 lux
Color Supported:
- Color
- Monochrome
Tilt:
52° to -52°
Swivel:
-175° to 175°
Field of View:
118°
Video
Video Formats:
- MJPEG
- H.264
- MPEG-4
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2.8
Exposure
Shortest Shutter Speed:
1/8000 Second
Longest Shutter Speed:
1/6 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- QoS
- FTP
- CIFS
- SMB
- SMTP
- Bonjour
- UPnP
- SNMP
- SNMP (MIB-2)
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
Storage
Flash Memory Capacity:
128 MB
Power Description
Maximum Power Consumption:
2.70 W
Physical Characteristics
Form Factor:
Dome
Durability:
- Vandal Resistant
- Water Resistant
- Dust Resistant
Height:
2"
Diameter:
3.9"
Weight (Approximate):
7.05 oz
Miscellaneous
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- M3005-V Fixed Dome Network Camera
- Drill Hole Template
- Quick Guide
- Installation and Management Software CD
- Windows Decoder 1 User License
Certifications & Standards:
- EN 55022 Class B
- EN 61000-6-1
- EN 61000-6-2
- EN 55024
- FCC Part 15 Subpart B Class B
- ICES-003 Class B
- VCCI Class B
- C-tick AS/NZS CISPR 22
- KCC Class B
- IEC/EN 60950-1
- IEC 60529 IP42
- IEC 62262 Class IK08
Impact Protection Rating:
IK08
Ingress Protection Rating:
IP42
Security Features:
- Password Protection
- IP Address Filtering
- HTTPS Encryption
- IEEE 802.1X Network Access Control
- Digest Authentication
- User Access Log
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0331021036854, 4943783132086, 7331021004313
UPC:
331021036854
EAN:
0331021036854, 4943783132086, 7331021004313
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 0517-001 Security Camera is also known as
AXC-0517-001
