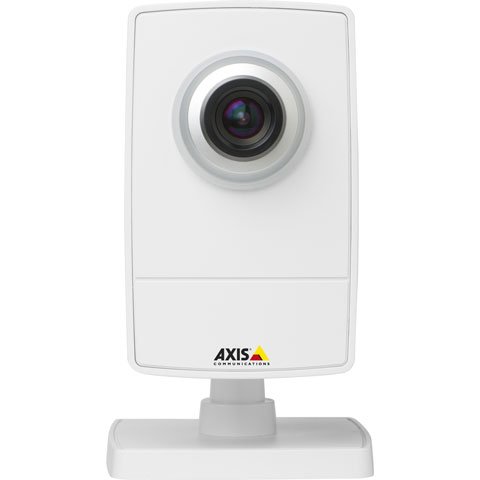

Axis 0519-004 Security Camera

The Axis 0519-004 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Axis Accessories - AXIS M1013 Network Camera - MJPEG, MPEG-4 - 800 x 600 - CMOS - Fast Ethernet

Network camera - Helps achieve high-quality video results
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Up to 800 x 600 resolution for surveillance in real-time

Need a different version? See all Axis Accessories Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Technical Information

Fixed Focal Length:

2.80 mm

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/4"

Minimum Illumination:

1.2 lux

Color Supported:

Color

Field of View:

67°

Video

Video Formats:

MJPEG
MPEG-4

Maximum Video Resolution:

800 x 600

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Maximum Aperture:

f/2

Focus Modes:

Fixed Focus

Exposure

Shortest Shutter Speed:

1/18000 Second

Longest Shutter Speed:

1/6 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

IPv4
IPv6
HTTP
HTTPS
QoS
FTP
SMTP
SMB/CIFS
Bonjour
UPnP
SNMP
DNS
DDNS
NTP
RTSP
RTP
TCP
UDP
IGMP
DHCP
ARP
SOCKS

Remote Management:

Yes

Storage

Flash Memory Capacity:

128 MB

Power Description

Maximum Power Consumption:

2.20 W

Physical Characteristics

Color:

White

Height:

3.7"

Width:

2.3"

Depth:

1.6"

Weight (Approximate):

3.88 oz

Software

Operating System Supported:

Windows

Environmental Conditions

Minimum Operating Temperature:

32°F (0°C)

Maximum Operating Temperature:

104°F (40°C)

Miscellaneous

Features:

SD Card Local Storage
Motion Detection
Built-in Microphone
Built-in Speaker
Built-in PIR Sensor
Back Light Compensation (BLC)
Privacy Masking

Indoor/Outdoor:

Indoor

Package Contents:

M1013 Network Camera
Power supply
Stand and Clamp
Installation/Quick Guide
Installation and Management Software CD
Windows Decoder
1-User License

Certifications & Standards:

55022 Class B
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
EN 61000-6-2
EN 55024
FCC Part 15 Subpart B and C Class B
VCCI Class B
C-tick AS/NZS CISPR 22
ICES-003 Class B
KCC Class B
EN 60950-1

Security Features:

Password Protection
IP Address Filtering
HTTPS Encryption
IEEE 802.1X Network Access Control
Digest Authentication
User Access Log

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0037136664882, 0168141567476, 0789586894073, 7331021002654

UPC: 037136664882, 168141567476, 789586894073

EAN: 0037136664882, 0168141567476, 0789586894073, 7331021002654

UNSPSC: 46171610
