Axis 0629-001 Security Camera

The Axis 0629-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

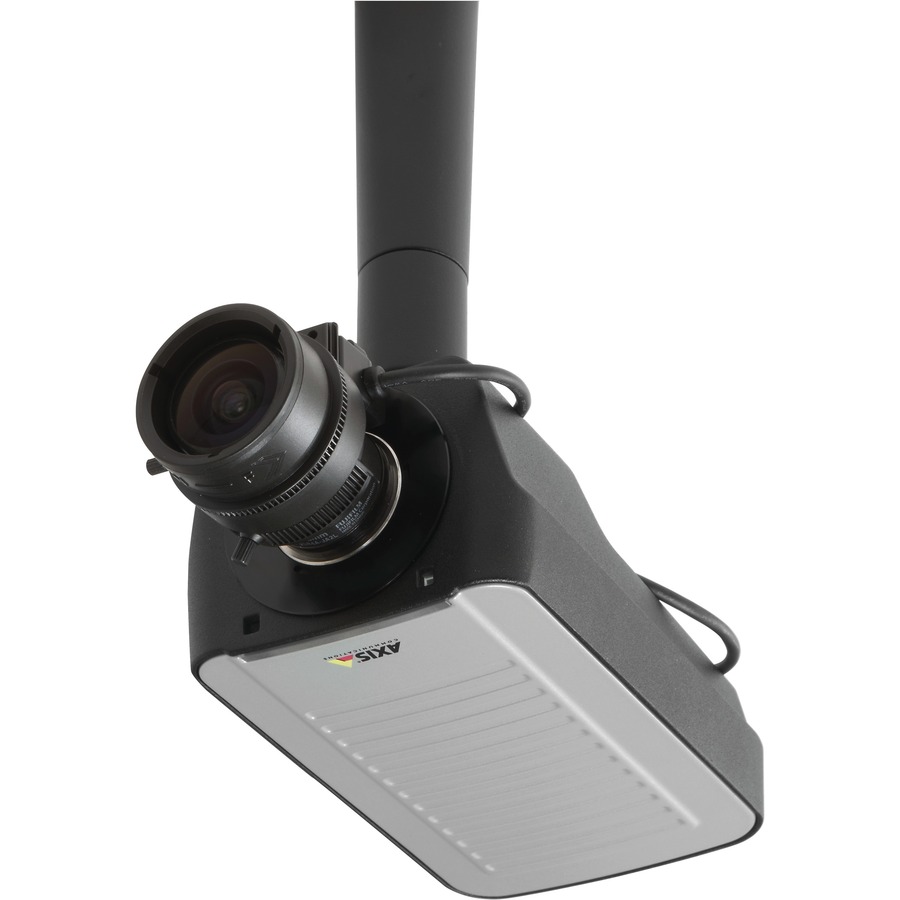

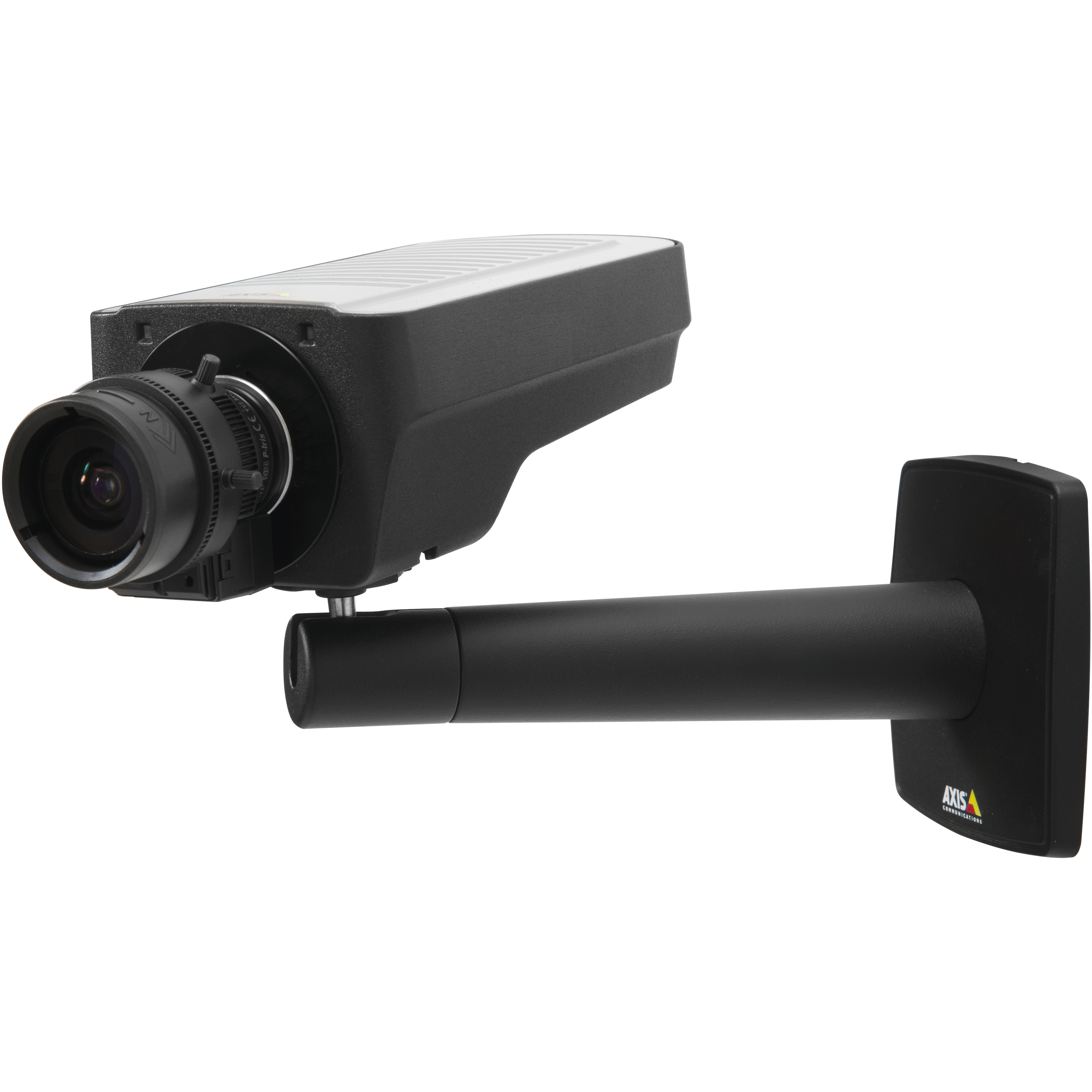

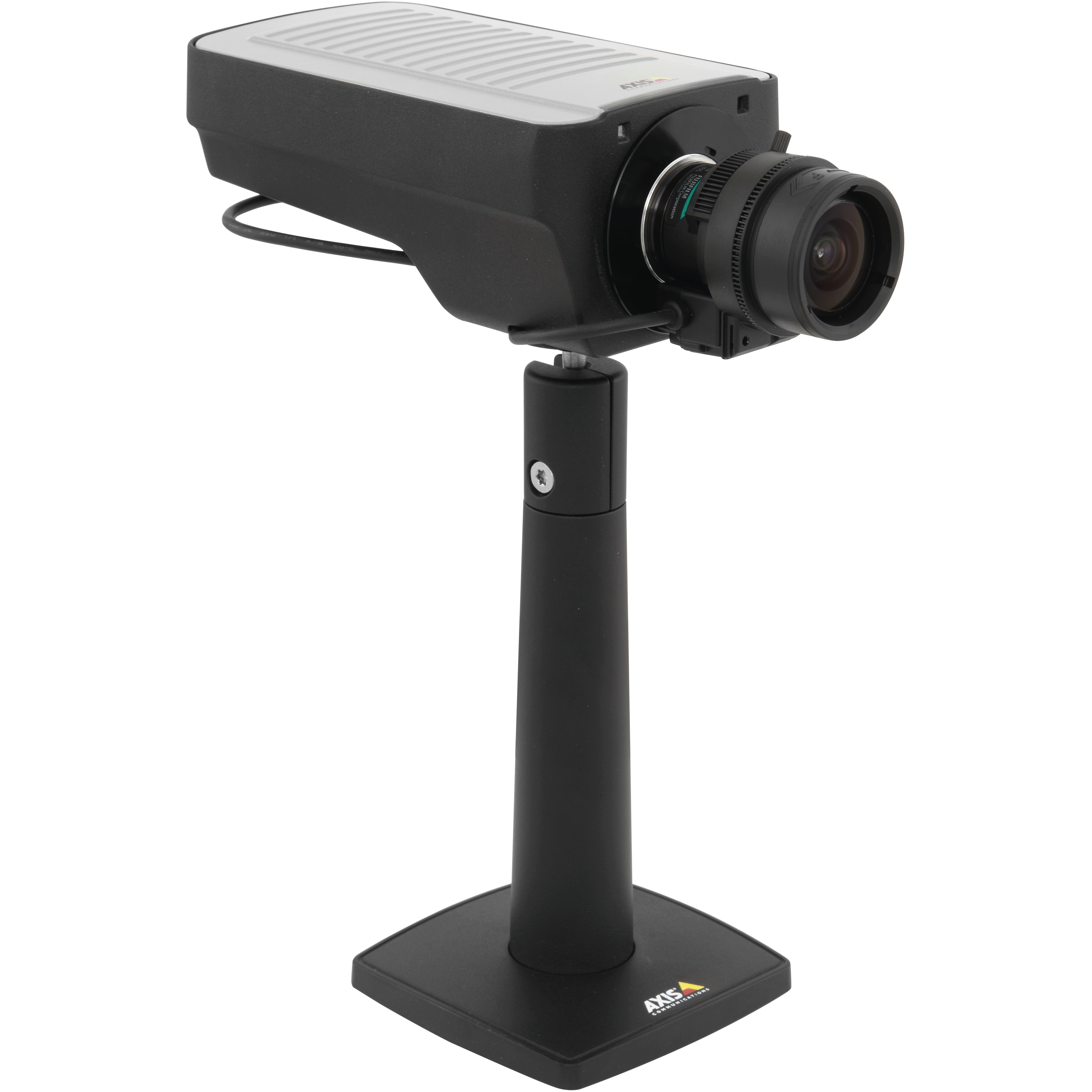

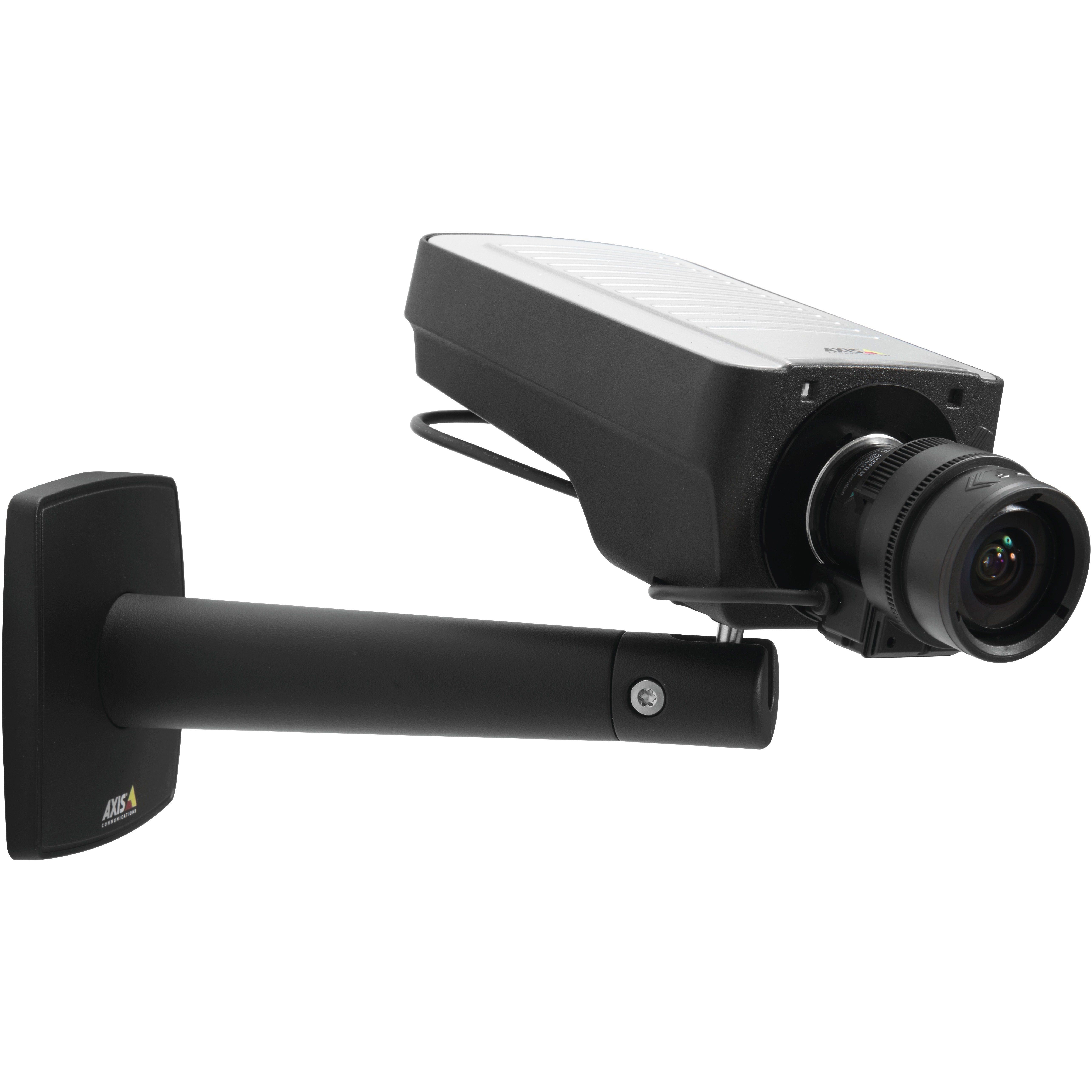

Axis - AXIS Q1615 2 Megapixel Network Camera - MJPEG, MPEG-4, H.264 - 1920 x 1080 - 2.9x Optical - RGB CMOS - Fast Ethernet

Network camera - Helps achieve high-quality video results
Features RGB CMOS sensor
Up to 1920 x 1080 resolution for surveillance in real-time

Need a different version? See all Axis Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Axis Parts Accessory Model Overview

Products and parts from Axis.

Axis 0629-001 Security Camera Overview

AXIS Q16 Network Camera Series comprises indoor and outdoor-ready fixed cameras that deliver outstanding image quality in demanding video surveillance conditions, such as poor or highly variable lighting.

The unique Lightfinder technology makes the cameras extremely sensitive to low light, effectively allowing them to 'see' even in dark conditions. Wide Dynamic Range with 'Dynamic Capture' and 'Forensic Capture' allow to provide homogeneous images, without too dark or too bright parts.

Detailed Specs

Display & Graphics

Image Sensor Type:

RGB CMOS

Image Sensor Size:

1/2.8"

Minimum Illumination:

0 lux

Color Supported:

Color
Monochrome

Field of View:

-40° to 120°

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

MJPEG
MPEG-4
H.264

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

60 fps

Audio

Audio Formats:

AAC-LC
PCM
ADPCM

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

8 mm

Lens Included:

Yes

Lens Mount Type:

CS-Mount

Maximum Aperture:

f/1.3

Optical Zoom:

2.9x

Focus Modes:

Remote Focus

Exposure

Shortest Shutter Speed:

1/43000 Second

Longest Shutter Speed:

2 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

PELCO-D
IPv4
IPv6
HTTP
HTTPS
SSL/TLS
DiffServ (QoS)
FTP
SMB/CIFS
SMTP
Bonjour
UPnP
SNMP (v1/v2c/v3)
SNMP (MIB-2)
DNS
DynDNS
NTP
RTSP
RTP
TCP
UDP
IGMP
RTCP
ICMP
DHCP
ARP
SOCKS

Storage

Flash Memory Capacity:

256 MB

Physical Characteristics

Durability:

Impact Resistant

Color:

White

Weight (Approximate):

2 lb

Miscellaneous

Features:

Electronic Image Stabilization
Shock Detection
Back Light Compensation (BLC)
Privacy Masking
Day/Night
Motion Detection
Tampering Alarm
Audio Detection
SD Card Local Storage
Built-in Microphone

Indoor/Outdoor:

Indoor/Outdoor

Package Contents:

Q1615 Network Camera
Stand
Connector Kit
ResiTorx20 Tool
Installation Guide
Installation and Management Software CD
Windows Decoder
1-user License

Certifications & Standards:

EN 55022 Class B
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 61000-6-1
EN 61000-6-2
FCC Part 15 Subpart B Class B
ICES-003 Class B
VCCI Class B
C-tick AS/NZS CISPR 22 Class B
IEC/EN/UL 60950-1

Security Features:

Password Protection
IP Address Filtering
HTTPSc Encryption
IEEE 802.1Xc Network Access Control
Digest Authentication
User Access Log

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0082839491525

UPC: 082839491525

EAN: 0082839491525

UNSPSC: 46171610
