Axis 0644-001 Security Camera

The Axis 0644-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Axis - AXIS Q1765-LE Network Camera - Bullet - H.264, MJPEG, MPEG-4 - 1920 x 1080 - 18x Optical - RGB CMOS - Fast Ethernet - Pole Mount, Corner Mount

For remote surveillance needs, this network camera is best suited
Features RGB CMOS sensor
Up to 1920 x 1080 resolution for surveillance in real-time

Need a different version? See all Axis Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Axis Parts Accessory Model Overview

Products and parts from Axis.

Axis 0644-001 Security Camera Overview

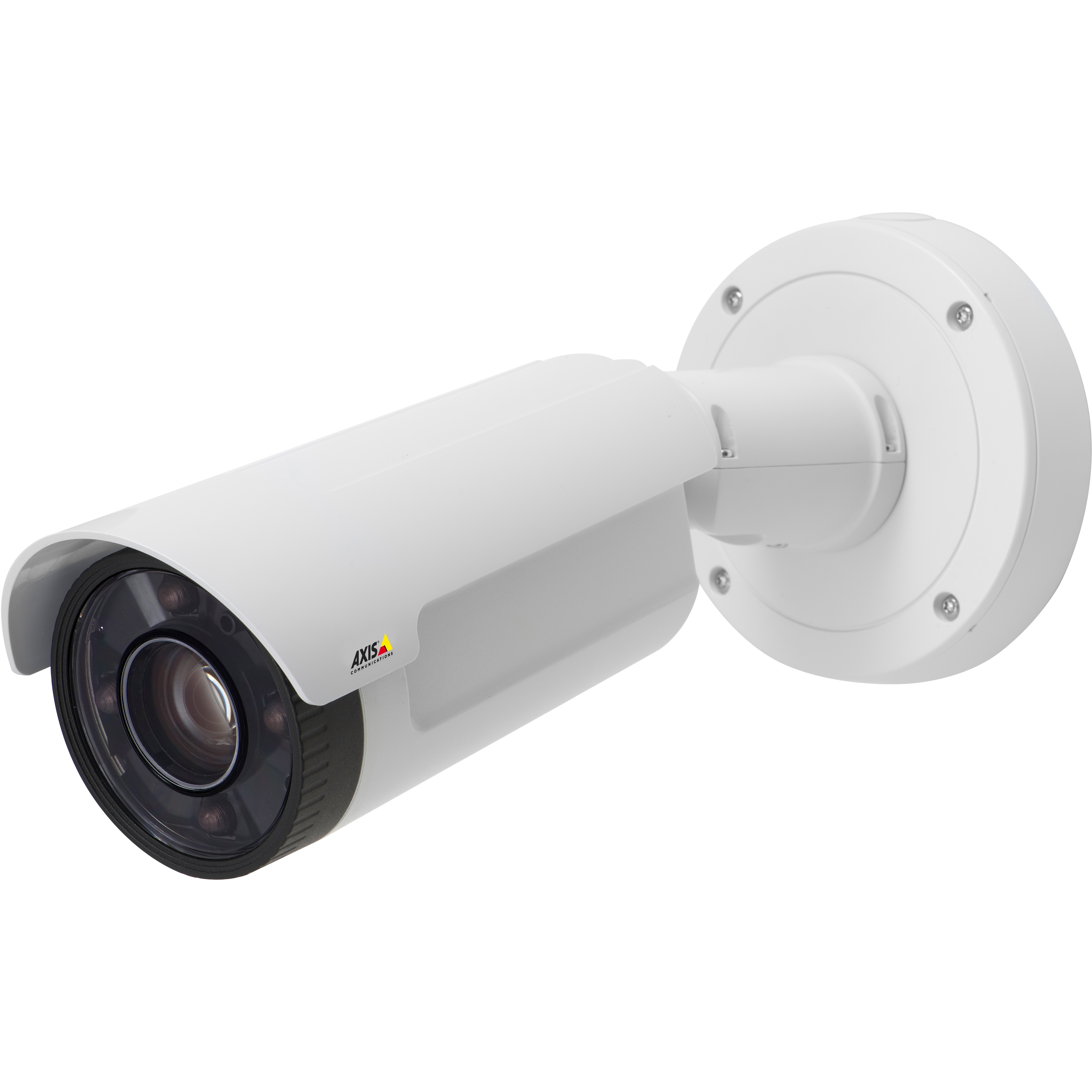

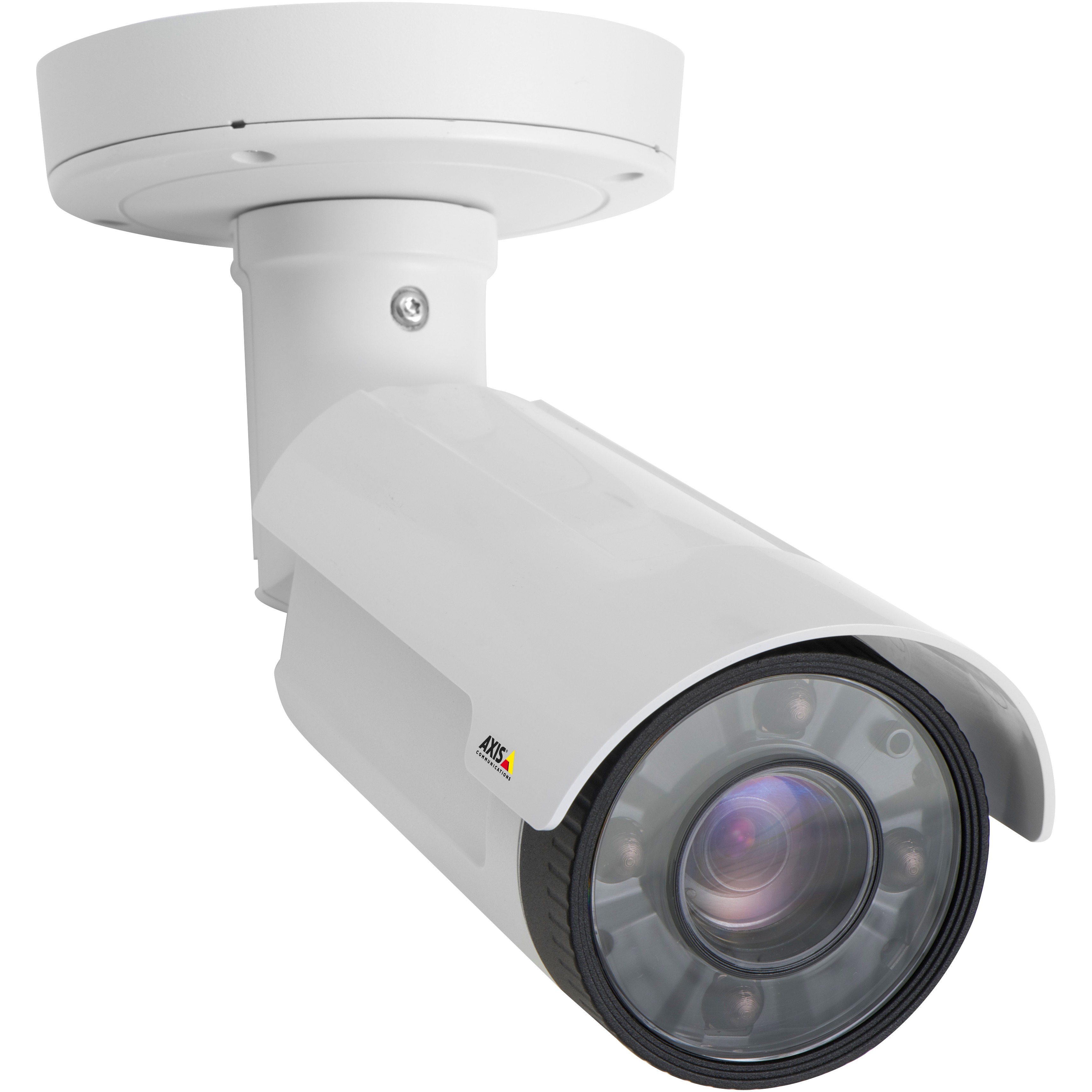

The bullet-style and outdoor-ready AXIS Q1765-LE Network Camera is especially adapted for installation on buildings, for monitoring entrances and exits, parking lots, toll booths, service stations and for general city surveillance purposes.

AXIS Q1765-LE Network Camera delivers excep-tional image quality including SMPTE-compliant HDTV 1080p and it provides multiple, individually configurable H.264 and Motion JPEG video streams. AXIS Q1765-LE supports Wide Dynamic Range (WDR) with 'dynamic contrast' that handles a wide range of lighting conditions in a scene.

Detailed Specs

Display & Graphics

Image Sensor Type:

RGB CMOS

Image Sensor Size:

1/2.9"

Minimum Illumination:

0 lux

Color Supported:

Color
Monochrome

Field of View:

4° to 59°

Video

Video Formats:

H.264
MJPEG
MPEG-4

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Audio

Audio Formats:

AAC-LC
ADPCM
PCM

Lens

Lens Type:

Zoom

Minimum Focal Length:

4.70 mm

Maximum Focal Length:

84.60 mm

Lens Included:

Yes

Minimum Aperture:

f/1.6

Maximum Aperture:

f/2.8

Optical Zoom:

18x

Digital Zoom:

12x

Focus Modes:

Automatic

Exposure

Shortest Shutter Speed:

1/28000 Second

Longest Shutter Speed:

2 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

IPv4
IPv6
HTTP
HTTPS
SSL/TLS
DiffServ (QoS)
FTP
SMB/CIFS
SMTP
Bonjour
UPnP
SNMP (v1/v2c/v3)
SNMP (MIB-2)
DNS
DynDNS
NTP
RTSP
RTP
TCP
UDP
IGMP
RTCP
ICMP
DHCP
ARP
SOCKS

Storage

Flash Memory Capacity:

128 MB

Physical Characteristics

Mount Type:

Pole Mount
Corner Mount

Form Factor:

Bullet

Durability:

Impact Resistant

Color:

White

Height:

4.1"

Width:

5.7"

Depth:

13.5"

Weight (Approximate):

3.97 lb

Miscellaneous

Features:

SD Card Local Storage
Day/Night
Back Light Compensation (BLC)
Privacy Masking
Motion Detection
Tampering Alarm
Audio Detection

Indoor/Outdoor:

Outdoor

Package Contents:

Q1765-LE Network Camera
Connector Kit
Installation Guide
Mini CD with Installation Tools
Recording Software and User's Manual
Windows Decoder 1-user License
Allen Key

Certifications & Standards:

IP66
NEMA 4X
EN 55022 Class B
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
EN 61000-6-2
EN 55024
EN 50121-4
FCC Part 15 Subpart B Class A
ICES-003 Class B
VCCI Class A
C-tick AS/NZS CISPR 22
KCC KN22 Class A
KN24
IEC/EN/UL 60950-22

Ingress Protection Rating:

IP66

Security Features:

Password Protection
IP Address Filtering
HTTPSa Encryption
IEEE 802.1Xa Network Access Control
Digest Authentication
User Access Log

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0037136665841

UPC: 037136665841

EAN: 0037136665841

UNSPSC: 46171610
