Recording Formats:
Full HD
HD Recording:
Yes
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 0677-001 Security Camera Overview
AXIS F1015 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in highly discreet indoor surveillance applications. The sensor unit can be installed in tight places and flush-mounted in a wall or ceiling, while the main unit can be placed further away where there is space.
Discreet installation
AXIS F1015 comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a varifocal lens that provides between a 52° and 97° horizontal field of view. A varifocal lens gives users the flexibility to adjust the field of view to suit the application. In tele mode, finer details can be captured in a narrower field of view. In wide mode, more of a scene can be covered.

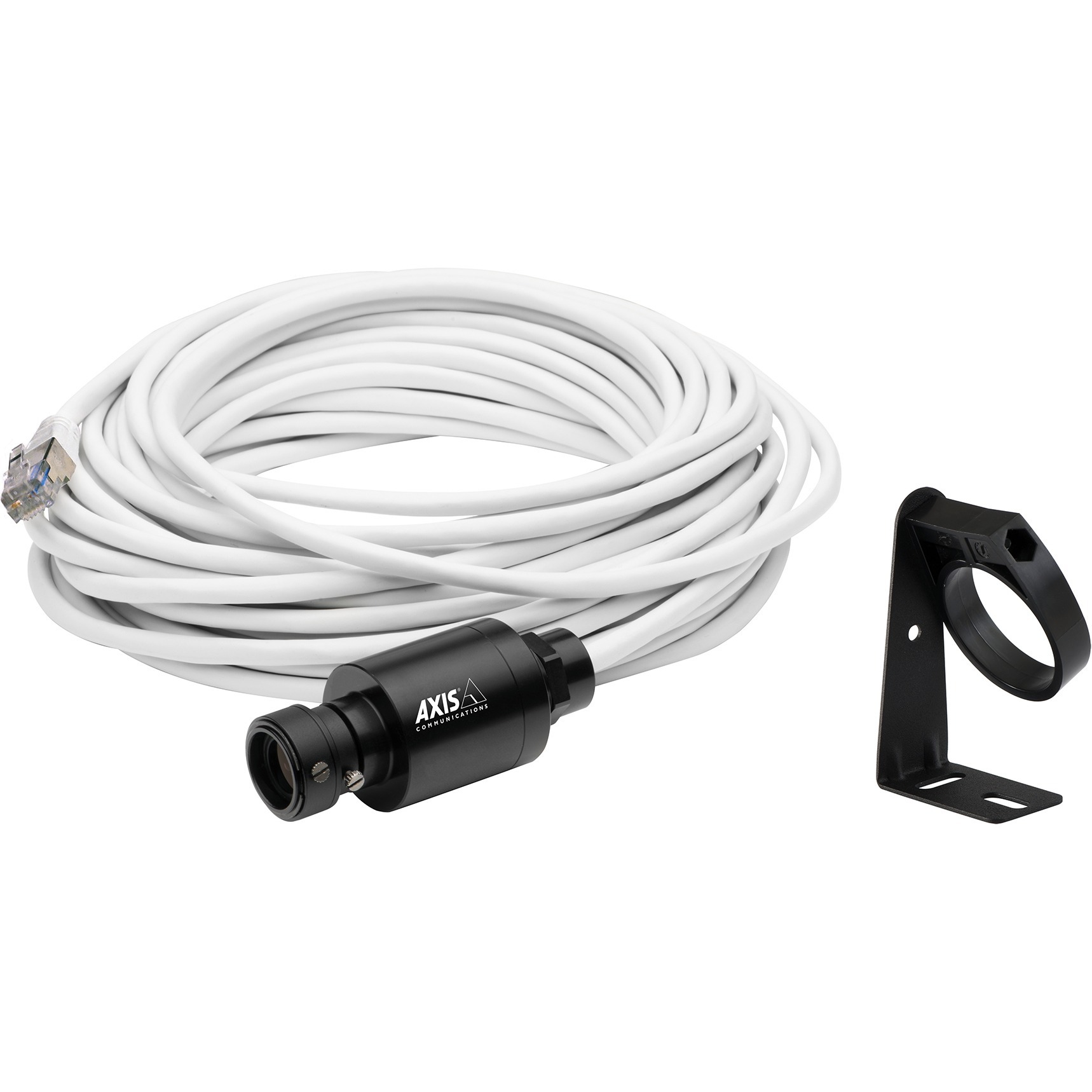

AXIS F1015 comes with a 3-m or 12-m (10 ft. or 39 ft.) pre-mounted cable for connection to an AXIS F Main Unit. An AXIS F8201 Vari-angle Mounting Bracket is included and enables the sensor unit to be secured and tilted in any position.
WDR - Forensic Capture
AXIS F1015 also supports Wide Dynamic Range (WDR) - Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR - Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view : 97° - 52° ; Vertical field of view : 53° - 30°
Video
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
6 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2
Optical Zoom:
2x
Exposure
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Physical Characteristics
Mount Type:
- Flush Mount
- Wall Mount
- Ceiling Mount
Product Color:
Black
Height:
2.7"
Width:
1.2"
Diameter:
1.2"
Weight (Approximate):
4.23 oz
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
85%
Miscellaneous
Features:
Wide Dynamic Range
Indoor/Outdoor:
Indoor
Compatibility:
AXIS F Main Units:
- F34 Main Unit
- F41 Main Unit
- F44 Dual Audio Input
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN:
7331021045521
EAN:
7331021045521
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 0677-001 Security Camera is also known as
AXC-0677001
