Full specifications (PDF)
Recording Formats:
Full HD
HD Recording:
Yes
Axis P12 Series Security Camera Model Overview
Axis P12 Series Network Cameras is a series of uniquely designed cameras for exceptionally discreet surveillance. The series comprises three models; two pinhole models, Axis P12 Series cameras are ideal for indoor installations, and Axis P1214-E, which is an IP66-rated model that can be installed both indoors and outdoors.
Axis 0927-001 Security Camera Overview

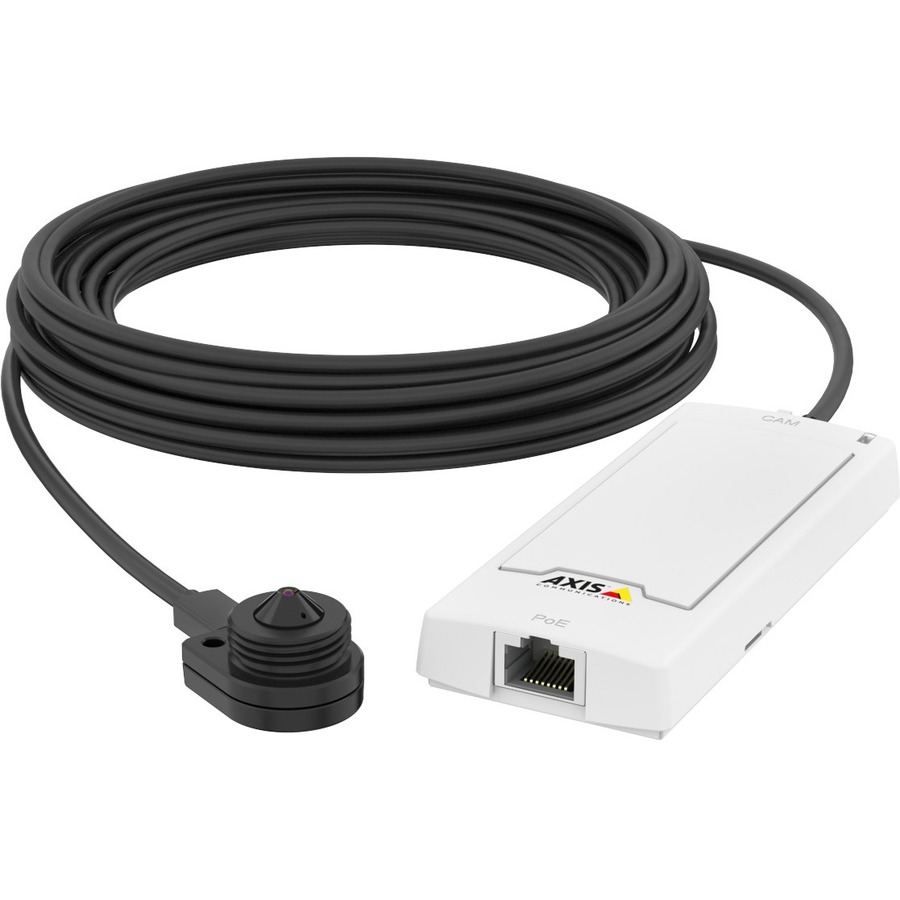

AXIS P1265 Network Camera is a cost-effective complete modular pinhole camera with HDTV 1080p resolution, ideal for discreet indoor eye-level surveillance. It can be installed in tight places or flush-mounted in a wall, ceiling, or metal panel with only a small pinhole lens visible, suitable in, for example, ATMs or vending machines. Equipped with WDR - Forensic Capture, enables the camera to handle scenes with strong variations in light. AXIS P1265 comes with a mounting bracket and an 8 meter (26 feet) detachable cable.
- HDTV 1080p resolution
- WDR - Forensic Capture
- Pinhole lens with 91° horizontal field of view
- Axis Zipstream
- Power over Ethernet
Technical Information
Display & Graphics
Image Sensor Type:
RGB CMOS
Color Supported:
Color
Field of View:
Horizontal field of view 91 ° Vertical field of view 45 °
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.264 (MPEG-4 Part 10/AVC)
- Motion JPEG
- Zipstream
- H.264M
- H.264B
- H.264H
- H.264 HP
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.70 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2.5
Exposure
Shortest Shutter Speed:
1/32500 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Power Source Type:
PoE
Physical Characteristics
Mount Type:
- Bracket Mount
- Flush Mount
- Wall Mount
Durability:
Weather Resistant
Product Color:
- Black
- White
Height:
1.8"
Width:
0.6"
Depth:
4.3"
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
85%
Miscellaneous
Features:
- Auto Gain Control
- Automatic White Balance
- Motion Detection
- Privacy Masking
- Wide Dynamic Range
Indoor/Outdoor:
Outdoor
Package Contents:
- P1265 Network Camera
- Installation Guide
- Windows® decoder 1-user license 8-m (26 ft) black cable
- 1 x locking nut
- AXIS F82A06 Angled Pinhole Mount
Country of Origin:
Thailand
NDAA Compliant:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
7331021052833
EAN:
7331021052833
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Axis 0927-001 Security Camera is also known as
AXC-0927001
