Input Voltage:
- 120 V AC
- 230 V AC
Axis Parts Accessory Model Overview
Products and parts from Axis.
Axis 5505-371 Security Camera Overview
AXIS T98A17-VE Surveillance Cabinet is a unique, outdoor-ready cabinet, specially designed for Axis outdoor network cameras. It protects main power and low-voltage units from tough weather and vandalism.
AXIS T98A17-VE is a part of a cabinet series that protects your installation against vandalism and tampering acts, it is weatherproof against the ingress of dust, water, ice and outside temperature. It represents a system solution that is designed for electrical safety and ease of installation to save you time and money in the field.

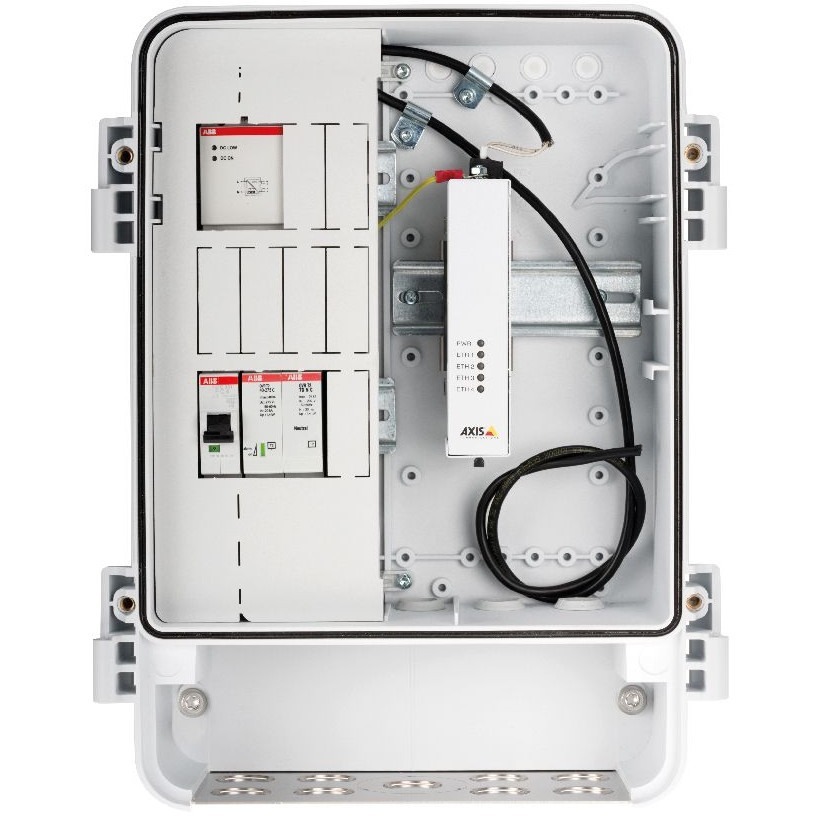

AXIS T98A17-VE Surveillance Cabinet fits many accessories such as midspan, power supply and media converter switches used for a network camera installation.
The Axis camera can be mounted on the door of the cabinet, which is already prepared with drill holes to match Axis' fixed dome outdoor cameras. All cabinets in the series come with a mounting plate to simplify installation and cable protection.
AXIS T98A-VE Cabinet Series is ideal in city surveillance or critical infrastructure installations where a sturdy, vandal-resistant and water-protected box is a must.
AXIS T98A17-VE is a part of a cabinet series that protects your installation against vandalism and tampering acts, it is weatherproof against the ingress of dust, water, ice and outside temperature. It represents a system solution that is designed for electrical safety and ease of installation to save you time and money in the field.
AXIS T98A17-VE Surveillance Cabinet fits many accessories such as midspan, power supply and media converter switches used for a network camera installation.
The Axis camera can be mounted on the door of the cabinet, which is already prepared with drill holes to match Axis' fixed dome outdoor cameras. All cabinets in the series come with a mounting plate to simplify installation and cable protection.
AXIS T98A-VE Cabinet Series is ideal in city surveillance or critical infrastructure installations where a sturdy, vandal-resistant and water-protected box is a must.
Power Description
Physical Characteristics
Product Color:
White
Height:
14.2"
Width:
11.1"
Depth:
5.2"
Weight (Approximate):
7.72 lb
Miscellaneous
Package Contents:
- T98A17-VE Surveillance Cabinet
- Installation Guide
- Pre-mounted Cable Gaskets
- Pre-mounted DIN Rail
- Cable Clamps
- Cable Straps
- Power Cover
- Device Mounting Bracket
- Additional Screws for Mounting The Camera
Compatibility:
Axis Network Cameras Series:
- P14
- P32
Certifications & Standards:
- IEC/EN/UL 60950-1
- IEC/EN/UL 60950-22
- UL 50
- UL 50E
- IEC 60529 IP66
- NEMA 250 Type 4X
- IEC 60068-2-6 4M4
- IEC 60068-2-27 4M4
- IEC/EN 62262 IK10
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0019214916069, 7331021043428
UPC:
019214916069
EAN:
0019214916069, 7331021043428
UNSPSC:
43201602
Get help from a Barcoding Expert!
The Axis 5505-371 Security Camera is also known as
AXC-5505371
