Black Box ACX080-R2 Accessory

The Black Box ACX080-R2 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

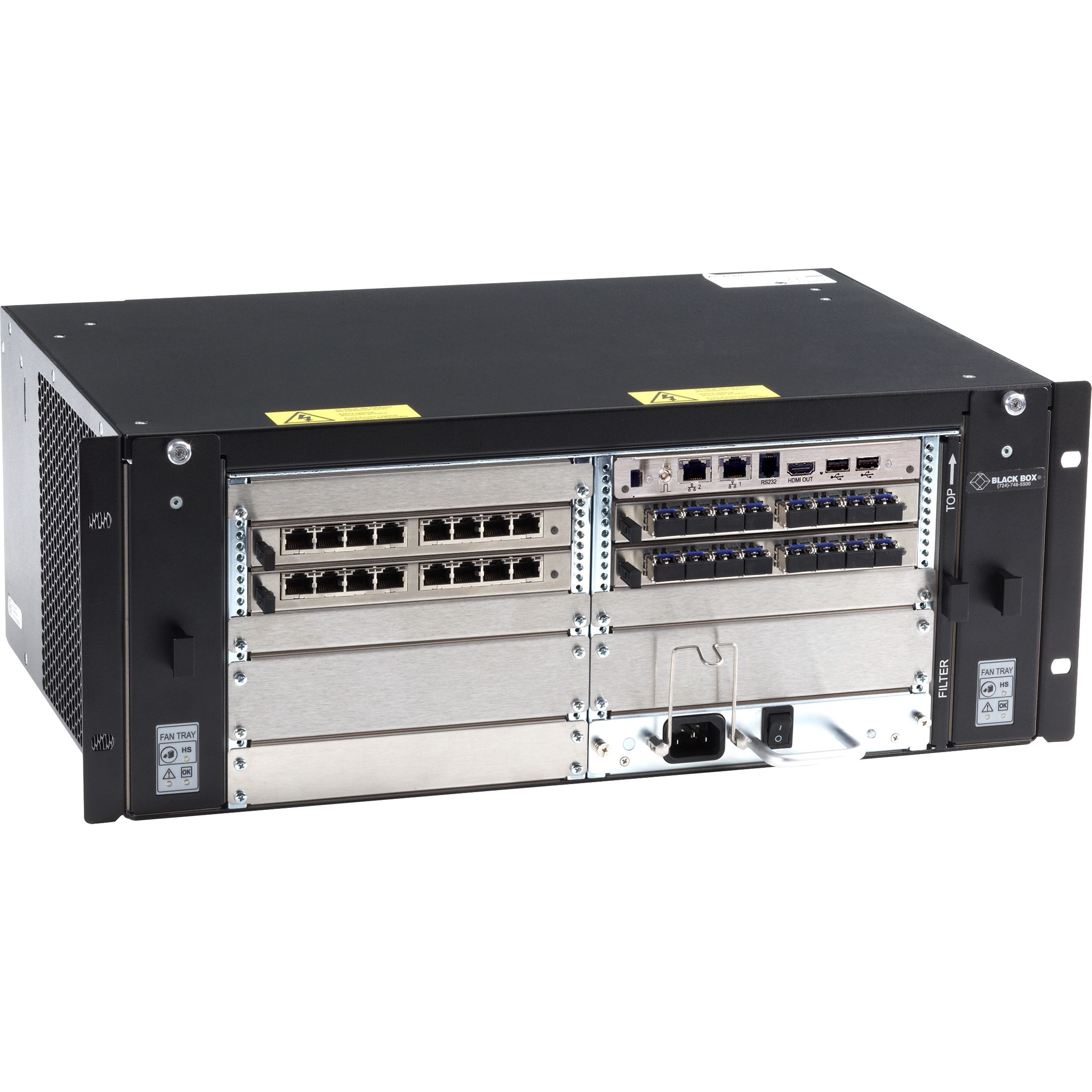

Black Box - 80-Port DKM Chassis Control Card Unpopulated Singular Power Supply

Terabit-speed switching backplane.
Supports resolutions up to UHD (3840x2160 @ 60Hz) with compatible extenders.
Enables mixing of media inputs/outputs-CATx and/or Fiber.
Instantaneous video switching - virtually no delay or blanking.
Modular, no fixed ports - moves, adds, and changes are quick and easy.
Various interface cards available (USB HID/2.0, RS232, and others).
Can be used with DKM or DKM FX extenders for extra-long links.
Supports rich, digital audio for a full multimedia experience.
Rackmountable 6U-high chassis.
Choose from CATx and single-mode fiber SFP modular card interfaces. Single-mode fiber interfaces will also work over multimode fiber.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Interfaces/Ports

Network (RJ-45):

Yes

USB:

Yes

HDMI:

Yes

Number of Network (RJ-45) Ports:

Number of USB Ports:

Number of HDMI Ports:

Power Description

Input Voltage:

120 V AC
230 V AC

Input Voltage Range:

90V AC to 264V AC

Frequency:

47 Hz
63 Hz

Physical Characteristics

Form Factor:

Rack-mountable

Rack Height:

Height:

Width:

19"

Depth:

9.1"

Weight (Approximate):

24.47 lb

Miscellaneous

Package Contents:

DKM FX HD Video and Peripheral Matrix Switch Controller card
1 x Power supply module with power cord
2 x Fan trays and an exchangeable filter pad DB9 serial control cable
CATx crossover cable
Rackmounting hardware CD with user manual and Java application

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

TAA Compliant:

Yes

Item Numbers

GTIN: 0822088154419

UPC: 822088154419

EAN: 0822088154419

UNSPSC: 43211601
