Black Box ACX1MR-SDI-SM Accessory

The Black Box ACX1MR-SDI-SM Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

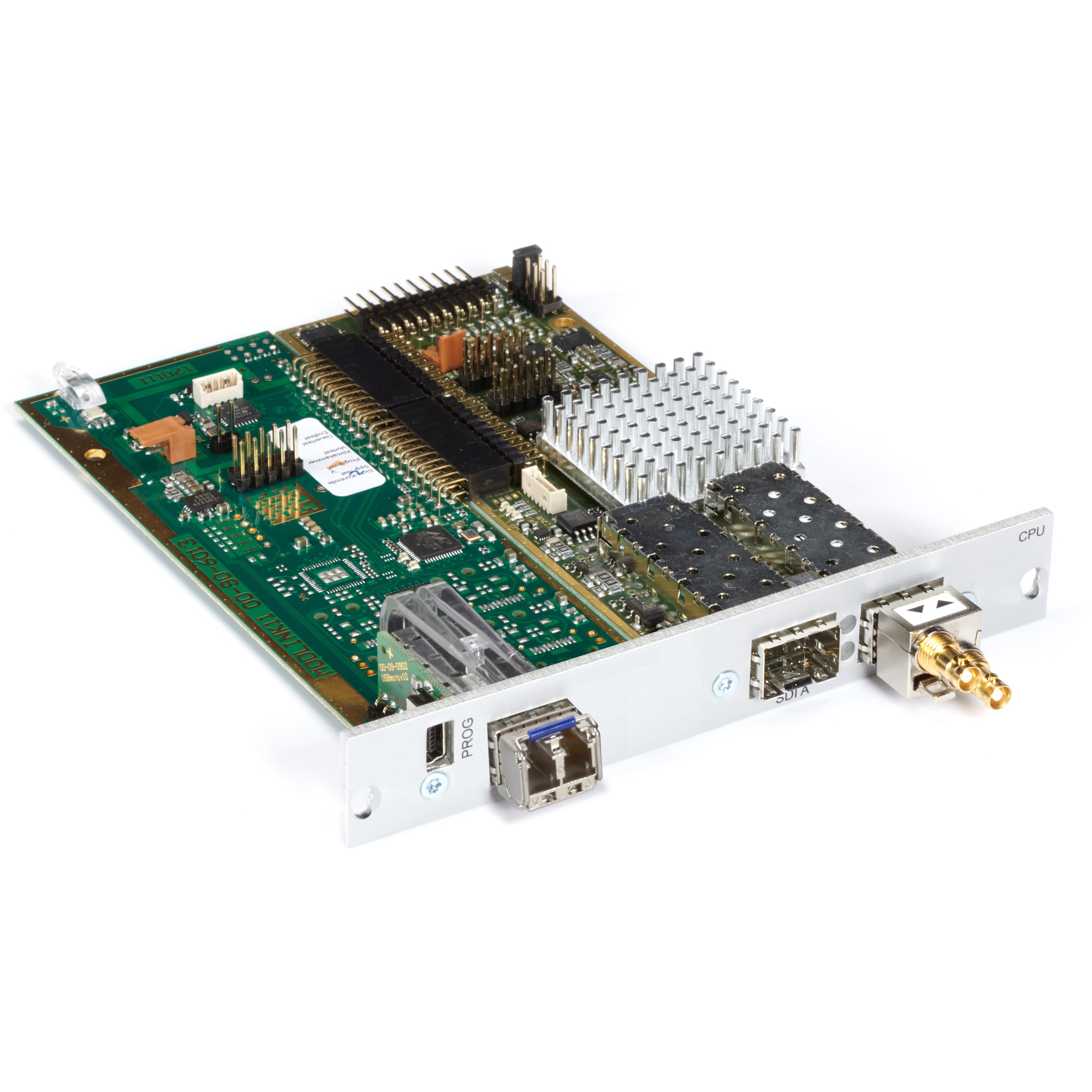

Black Box - Black Box DKM Modular Receiver Card, SDI over SM Fiber - 32808.40 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x USB - TAA Compliant

SDI receiver module for DKM Modular Housing chassis.
Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
Works over single-mode fiber.
Supports SDI, HD-SDI and 3GSDI resolutions (720p @ 50/60, 1080i @ 50/60, 1080p @ 50/60).
Includes an integrated scaler so the appropriate resolution is displayed.
Features integrated interlacing and de-interlacing.
Provides SDI audio embedding and de-embedding.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Maximum Operating Distance:

32808.40 ft

Video

Graphic Mode:

Full HD

Maximum Video Resolution:

1920 x 1080

Interfaces/Ports

USB:

Yes

Number of USB Ports:

Physical Characteristics

Receiver Width:

Receiver Weight (Approximate):

10.58 oz

Miscellaneous

Package Contents:

DKM Modular Receiver Card, SDI over SM Fiber
2 x BNC Cables

Additional Information:

This product works with:

21 Slot Modular KVM Extender Housing with Power Supply
DKM Modular Extender Housing 2 Slot w/Power Supply
Modular KVM Extender Housing 2 Slot w/5APower Supply
Modular KVM Extender Housing 2 Slot w/ Redundant Power Supply
Modular KVM Extender Housing 4 Slot w/5APower Supply
Modular KVM Extender Housing 4 Slot w/ Redundant Power Supply
Modular KVM Extender Housing 6 Slot w/ Back Plane Power Supply
Modular KVM Extender Housing 6-Slot w/(2) Front-Mount Internal PSU
Modular KVM Extender Housing 6 Slot w/ Power Supply

Product works with:

DKM 2-Slot Chassis (ACXMODH2-R2, ACXMODH2R-R2, ACXMODH2R-P-R2)
DKM 4-Slot Chassis (ACXMODH4-R2, ACXMODH4R-R2)
DKM 6-Slot Chassis (ACXMODH6R-R2,ACXMODH6BPAC-R2, ACXMODH6FPAC-R2)
DKM 21-Slot Chassis (ACXMODH21R)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Germany

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088154563

UPC: 822088154563

EAN: 0822088154563

UNSPSC: 43211603
