Black Box ACXMODH4R-R2 Accessory

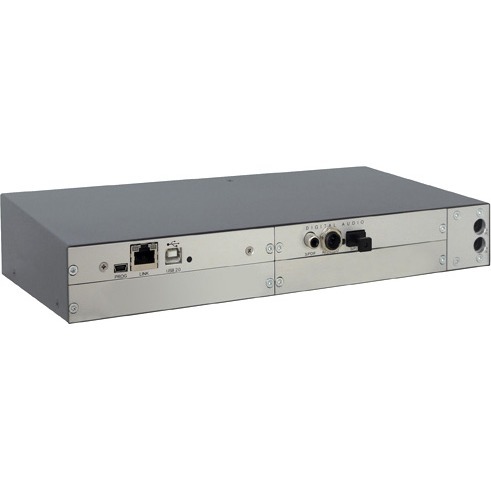

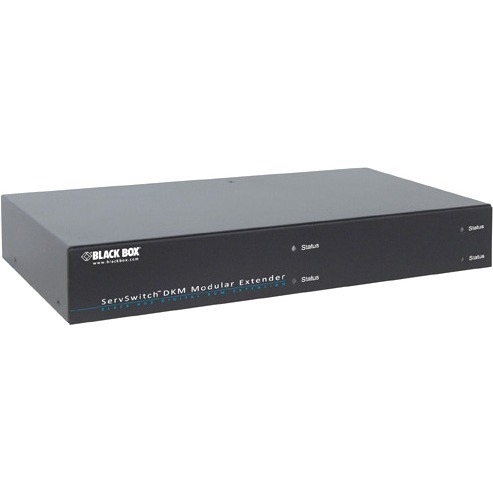

Black Box - Black Box 4-Port DKM Modular Card Chassis W/ Redundant Power Option - Rack-mountable

Part of DKM Modular KVM extender family of configurable chassis' that house transmitter and receiver interface cards.
Supports (4) transmitter or receiver cards.
Includes a single external power supply, plus an optional redundant power supply input. (Redundant power supply sold separately.)
Can be rackmounted with ACXMODHEAR4, 19" 1U rackmount ears for the chassis.

Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

$775.42

Black Box ACXMODH4R-R2 Accessory

Black Box ACXMODH4R-R2 Accessory

Black Box ACXMODH4R-R2 Accessory

Physical Characteristics

Form Factor:

Rack-mountable

Height:

1.7"

Width:

11.5"

Depth:

5.8"

Weight (Approximate):

14.40 oz

Miscellaneous

Package Contents:

4-Port DKM Modular Card Chassis W/ Redundant Power Option
1 x External Power Supply

Compatibility:

48-PT DKM Chassis Control Card Unpopulated Singular Power Supply
160-Port DKM Chassis Control Card Unpopulated Singular Power SUP
KVM Receiver 2-Way Audio PS/2 Expansion Card
KVM Receiver DVI-D USB HID CATx Modular Ext Card
KVM Receiver DVI-D USB HID SM Fiber Modular Ext Card
DKM Modular KVM Extender RX Interface Card SDI USB (2) CATx
DKM Modular KVM Extender RX Card SDI USB (2) SM Fiber
DKM Modular KVM Extender RX Interface Card SDI, CATx
DKM Modular KVM Extender RX Interface Card SDI USB SM Fiber
KVM Transmitter 2-Way Audio PS/2 Mod KVM Ext Expansion Card

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS 2

Country of Origin:

Germany

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0641676609724, 0822088003014, 0886201184530

UPC: 641676609724, 822088003014, 886201184530

EAN: 0641676609724, 0822088003014, 0886201184530

UNSPSC: 43211601

Get help from a Barcoding Expert!

The Black Box ACXMODH4R-R2 Accessory is also known as BLB-ACXMODH4RR2
