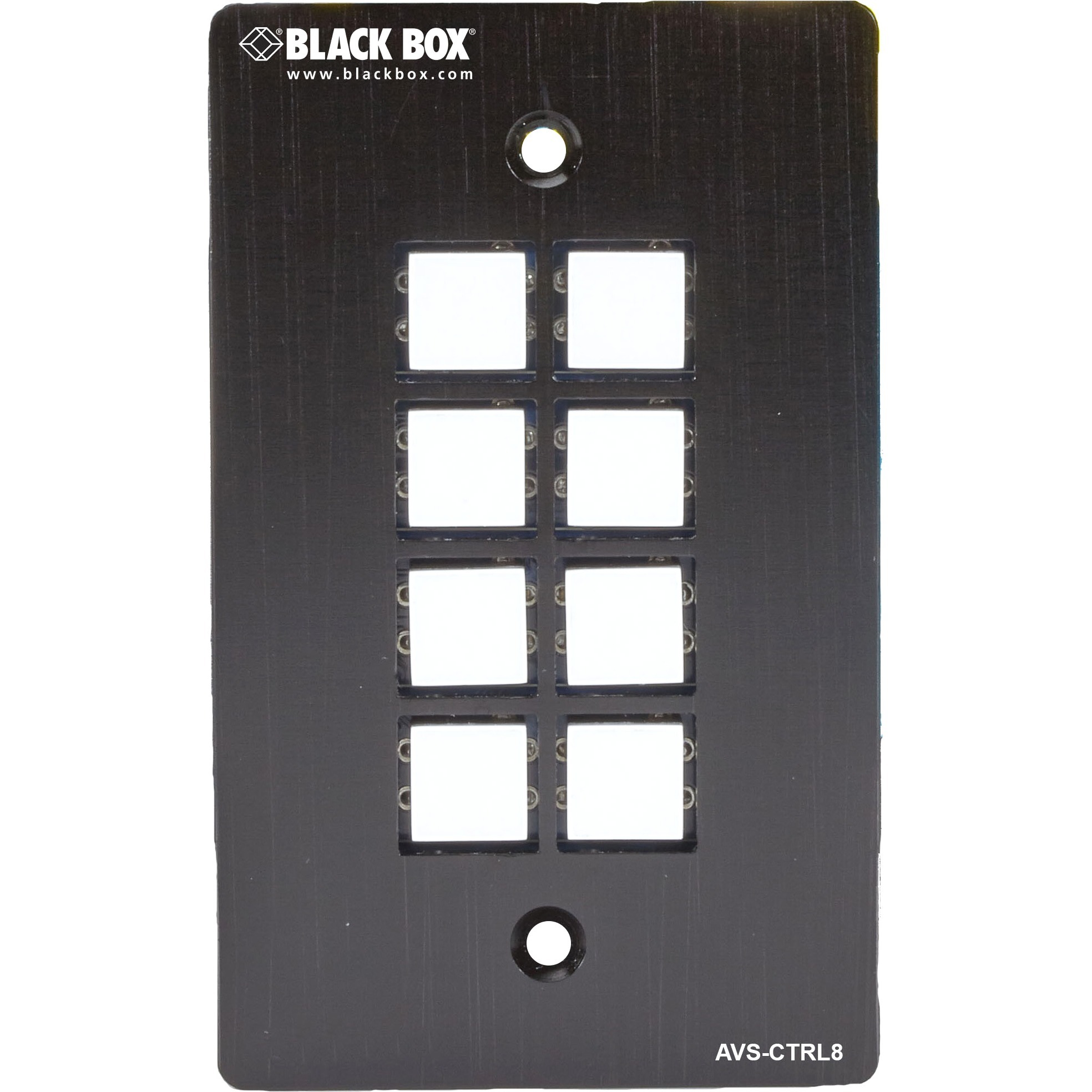

Black Box AVS-CTRL8 Accessory

Black Box - Black Box Wallplate Control Panel - RS-232, 8-Button - Wireless

Designed to operate any AV or KVM switches or scalers with RS-232 control, or other AV devices with either RS-232, RS-485, IR, or relay control.
Every button is fully programmable to perform operations such as turning a display on/off, select channels on a TV, or switch inputs on a matrix switcher.
8 programmable buttons
Sleek black metal wallplate design
ID looping function
Maximum 99-unit programmable control panels can be looped and controlled together.
Supports page, toggle, compare, and delay settings.
The backlit brightness is controllable.
The labels are customizable and changeable.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

$391.98

Technical Information

Connectivity Technology:

Wireless

Physical Characteristics

Color:

Metal Black

Form Factor:

Height:

1.1"

Width:

2.8"

Depth:

4.5"

Weight (Approximate):

5.28 oz

Miscellaneous

Additional Information:

Compliance: FCC

General

Humidity: 10 to 90%, noncondensing
Interface: Programming Port: USB or RS-232 Serial Control Port: RS-232 Band Rate and Protocol: 9600 band, 8 data bits, 1 stop bit, no parity Frequency Response: 20 Hz to 20 kHz
Operating Temperature: -4 to 158° F (-20 to 70° C)
Power: Supply: 100 to 240 VAC, 50/60 Hz; Consumption: 1 W
Storage Temperature: -4 to 158° F (-20 to 70° C)

Environmentally Friendly:

Yes

Environmental Certification:

Country of Origin:

China

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0822088122883, 0995477321997

UPC: 822088122883, 995477321997

EAN: 0822088122883, 0995477321997
