Black Box AVS-HDMI2-4X4 Accessory

The Black Box AVS-HDMI2-4X4 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

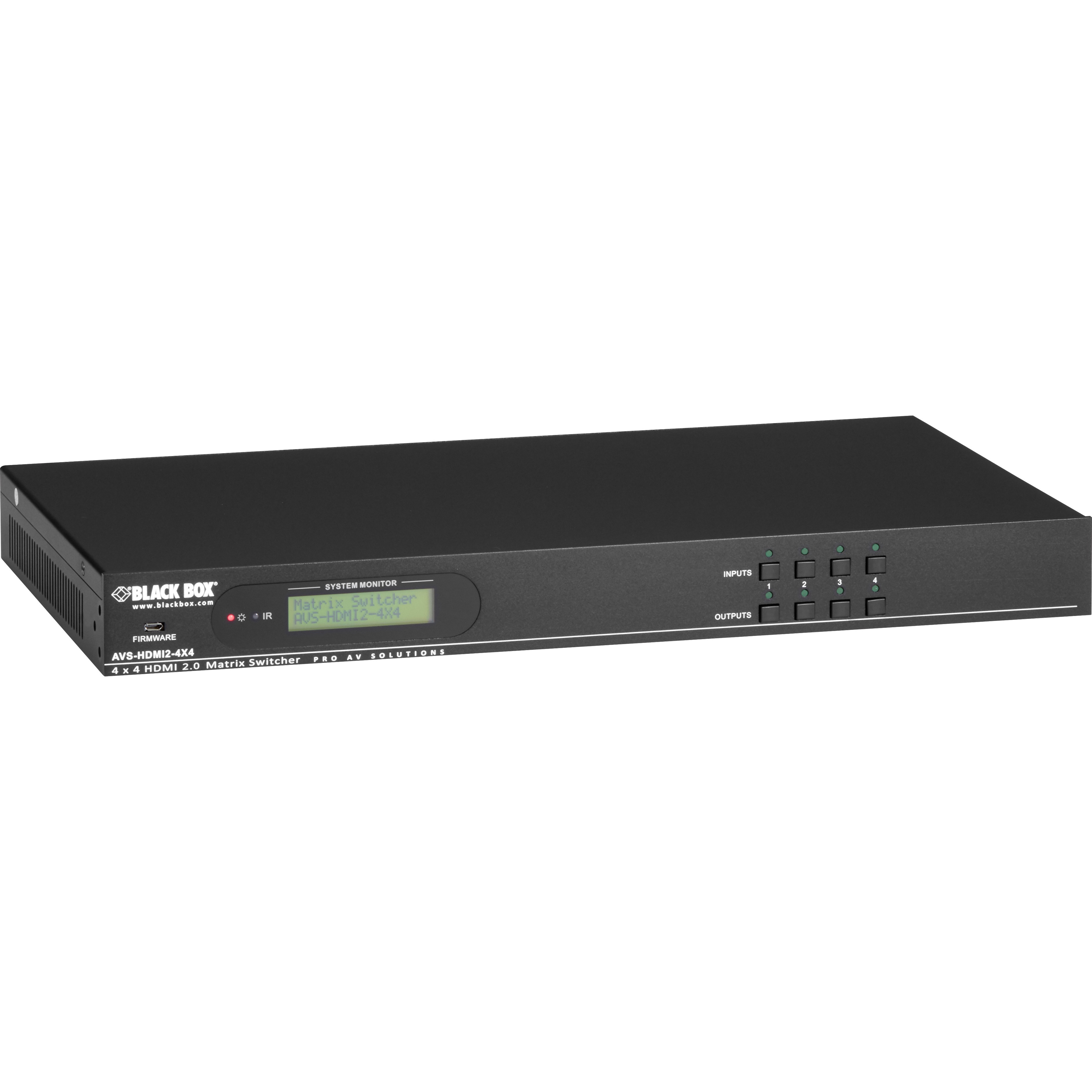

Black Box  -  Black Box Video Matrix Switcher - HDMI 2.0, 4x4 - 4K - Twisted Pair - 4 x 4 - 4 x HDMI Out
  • Four SPDIF ports provide de-embedded HDMI audio output
  • Supports 4K x 2K @ 60 HZ 4:4:4 and 1080p 3D signals
  • Supports HDMI 2.0, HDCP 2.2 compatible, and is backward compatible to the earlier versions
  • Transmits 4K x 2K @ 60 Hz 4:4:4 signal up to 16.4-ft via HDMI port
  • Provides powerful EDID management, built-in EDID can be invoked via DIP switch on rear panel, RS232 comman or web-based GUI
  • Controllable via front panel button, IR, RS232, TCP/IP or web-based GUI
  • LCD screen shows real-time I/O connection status
  • Convenient firmware upgrade through micro USB port
  • Easy installation with rackmounting design
Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Black Box AVS-HDMI2-4X4 Accessory
Black Box AVS-HDMI2-4X4 Accessory
Technical Information
Connectivity Technology:
Cable
Number of Input Devices Supported:
4
Device Supported:
  • Display
  • Notebook
  • Projector
  • TV
  • DVD Player
  • Speaker
  • Gaming Console
Number of Displays Supported:
4
Video
Graphics Modes:
4K
Interfaces/Ports
HDMI In:
Yes
HDMI Out:
Yes
Connectivity (RJ-45):
Yes
Number of Connectivity (RJ-45) Ports:
1
Number of HDMI Inputs:
4
Number of HDMI Outputs:
4
Media & Performance
Media Type Supported:
Twisted Pair
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.2"
Depth:
9.3"
Weight (Approximate):
3.86 lb
Miscellaneous
Package Contents:
  • Video Matrix Switcher - HDMI 2.0, 4x4
  • 6 x Screws
  • 1 x RS-232 Cable (3-pin to DB9)
  • 1 x IR Remote
  • 2 x Mounting Ears
  • 4 x Plastic Cushions
  • 1 x IR Receiver
  • 1 x Power Adapter (24 VDC, 1.25 A)
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0822088143673
UPC: 822088143673
EAN: 0822088143673
UNSPSC: 43211601
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Black Box AVS-HDMI2-4X4 Accessory is also known as BLB-AVSHDMI24X4
