Black Box EME149A-20 Accessory

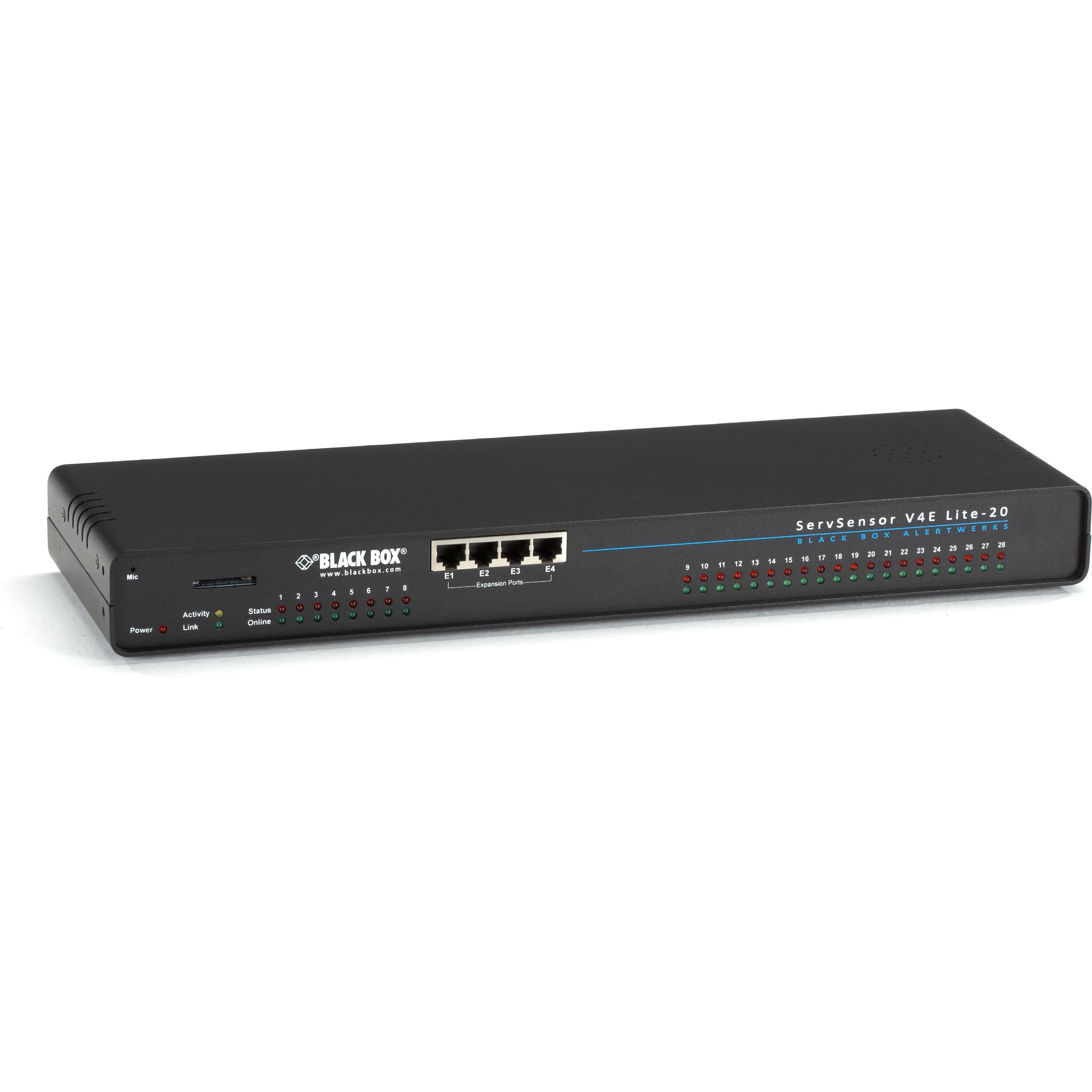

Black Box  -  Black Box AlertWerks ServSensor V4EL, 8-Port, 20 Dry-Contact Inputs
  • Embedded web server displays sensor information
  • Supports up to eight plug-and-play Intelligent Sensors.
  • Notifies you of alarms in a variety of ways, including e-mail, SNMP, and text messages.
  • Monitors up to 500 Intelligent sensors using the expandable modules
  • Can also monitor up to 80 SNMP devices
  • Full SNMPv1 compliance
  • Includes SNMP MIB
  • Dry contact inputs support third-party sensors.
  • Can be daisychained to expansion hubs, increasing the total sensor count to more than 500.
  • Monitors external devices via SNMP or IP "ping."
Read More
Add to Quote
Please Call for Pricing or to Purchase
In Stock
Physical Characteristics
Color:
Black
Height:
1.8"
Width:
17.1"
Depth:
5.4"
Weight (Approximate):
5.73 lb
Miscellaneous
Additional Information:
Audio Sampling Rate: 8 kHz
Configuration: Via Web browser (HTTP / HTTPS)
Encryption: SSL 128 bit (HTTPS), SNMPv3
Environmental: Temperature: -31 to +131° F (-35 to +55° C); Humidity: 20 to 80%, noncondensing; Altitude: 0 to 9842 ft. (0 to 3000 m)
Memory: 64 MB SDRAM, 128 MB NVRAM
Operating System: Embedded Linux®
Processor: 32-bit Xscale PXA270, 312 MHz
Protocols Supported (Client): DHCP, DNS, SMTP, (S) NTP, SNMP
CE Approval: Yes
Connectors: (8) RJ-45 sensor, (3) 3.5-mm audio jacks, (1) USB Type A, (1) RJ-45 10BASE-T/100BASE-TX Ethernet, (1) DB9 M RS-232/V.24 console port, (1) 2-pin RS-485, (20) 2-pin dry contacts; (4) RJ-45 expansion ports
Indicators: (1) Power, (1) Link, (1) Activity, (8) Status, (8) Online, (20) Status, (20) Online
Power: Autosensing 100-240 VAC, 50-60 Hz external power supply
Dimensions: 1.8"H x 17.08"W x 5.43"D (4.6 x 43.4 x 13.8 cm)
Weight: 5.73 lb. (2.6 kg) 5.73 lb. (2.6 kg)
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
Philippines
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0013269165304, 0822088019329
UPC: 013269165304, 822088019329
EAN: 0013269165304, 0822088019329
UNSPSC: 77101505
