Black Box EVNSL621-0003 Accessory

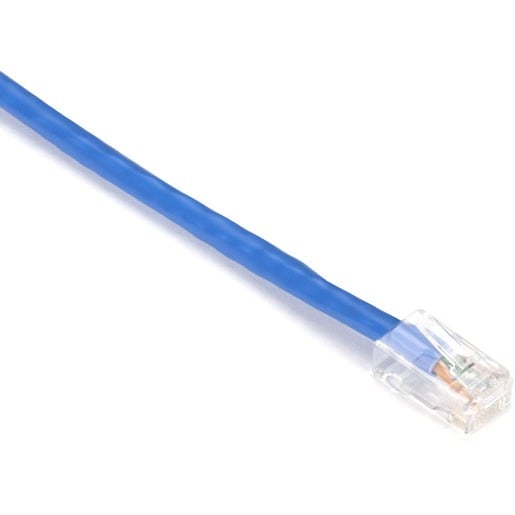

Black Box  -  Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 3ft - Blue
  • High quality stranded 24 AWG unshielded copper wire
  • Tested to 550 MHz and meets or exceeds CAT6 specifications
  • Cable construction: stranded, 24-AWG copper wire, RJ-45 connectors, 4-pair, T568B, PVC jacket, straight-pinned
  • For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications
  • Guaranteed for life!
Read More
Add to Quote
$16.58
Technical Information
Cable Type:
Category 6
Cable Characteristic:
Patch Cable
Cable Length:
3 ft
Connector on First End:
1 x RJ-45 Male Network
Connector on Second End:
1 x RJ-45 Male Network
Features:
  • Stranded
  • Non-booted
  • Rugged
  • Near End Cross Talk (NEXT)
Conductor:
Copper
Shielding:
No
Jacket Type:
CM
Device Supported:
  • Patch Panel
  • Wallplate
  • Network Device
American Wire Gauge:
24 AWG
Data Transfer Rate:
1 Gbit/s
Physical Characteristics
Color:
Blue
Jacket Material:
Polyvinyl Chloride (PVC)
Miscellaneous
Additional Information:
  • Full Power Sum Performance
  • Impedance: 100 ± 15 Ohms at 100 MHz, 100 ± 22 Ohms at 100-550 Mhz
  • Meets balance requirements (LCL/LCTL)
  • Attenuation:23.6 dB at 100 MHz, 39.1 dB at 250 MHz
  • Delay Skew (Maximum): 25 ns/100 m
  • Mutual Capacitance (Maximum): 56 pF/m
  • NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
  • PS-ACR: 32 dB (Typical) at 100 MHz
  • PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
  • Resistance (Maximum): 9.09 ohms/100 m (328 ft.)
  • Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
  • Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 Mhz

Applications:

  • 1000BASE-T
  • 100BASE-TX
  • 100BASE-VG
  • 155-Mbps ATM
  • 100-Mbps FDDI/CDDI
Certifications & Standards:

EIA/TIA-568-B.2-1

Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0013269041899, 0641676276704, 0822088033776
UPC: 013269041899, 641676276704, 822088033776
EAN: 0013269041899, 0641676276704, 0822088033776
UNSPSC: 26121609
