Black Box EVNSL621-0015 Accessory

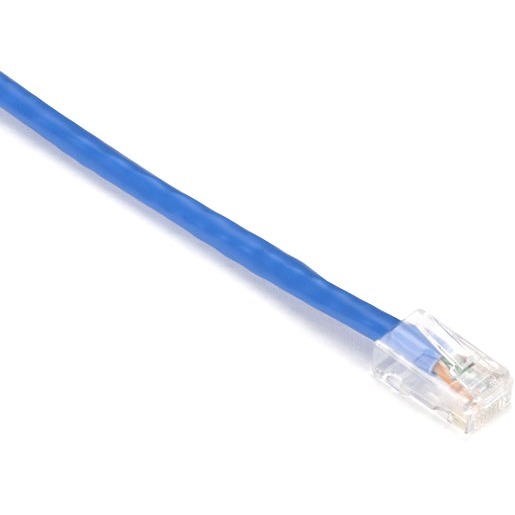

Black Box - Black Box GigaTrue Cat. 6 Channel UTP Patch Cable - RJ-45 Male - RJ-45 Male - 15ft - Blue

High quality stranded 24 AWG unshielded copper wire
Tested to 550 MHz and meets or exceeds CAT6 specifications
Cable construction: stranded, 24-AWG copper wire, RJ-45 connectors, 4-pair, T568B, PVC jacket, straight-pinned
For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications
Guaranteed for life!

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$20.56

Detailed Specs

Technical Information

Cable Type:

Category 6

Cable Characteristic:

Patch Cable

Cable Length:

15 ft

Connector Type on First End:

RJ-45 Network - Male

Connector on First End Details:

1 x RJ-45 Network - Male

Connector Type on Second End:

RJ-45 Network - Male

Connector on Second End Details:

1 x RJ-45 Network - Male

Conductor:

Copper

Shielding:

Jacket Type:

Device Supported:

Patch Panel
Wallplate
Network Device

American Wire Gauge:

24 AWG

Data Transfer Rate:

1 Gbit/s

Features:

Stranded
Non-booted
Rugged
Near End Cross Talk (NEXT)

Physical Characteristics

Product Color:

Blue

Jacket Material:

Polyvinyl Chloride (PVC)

Miscellaneous

Additional Information:

Full Power Sum Performance
Impedance: 100 ± 15 Ohms at 100 MHz, 100 ± 22 Ohms at 100-550 Mhz
Meets balance requirements (LCL/LCTL)
Attenuation:23.6 dB at 100 MHz, 39.1 dB at 250 MHz
Delay Skew (Maximum): 25 ns/100 m
Mutual Capacitance (Maximum): 56 pF/m
NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz
PS-ACR: 32 dB (Typical) at 100 MHz
PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz
Resistance (Maximum): 9.09 ohms/100 m (328 ft.)
Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 Mhz

Applications:

1000BASE-T
100BASE-TX
100BASE-VG
155-Mbps ATM
100-Mbps FDDI/CDDI

Certifications & Standards:

EIA/TIA-568-B.2-1

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0000060633613, 0013269041950, 0098379292614, 0822088033875

UPC: 000060633613, 013269041950, 098379292614, 822088033875

EAN: 0000060633613, 0013269041950, 0098379292614, 0822088033875

UNSPSC: 26121609
