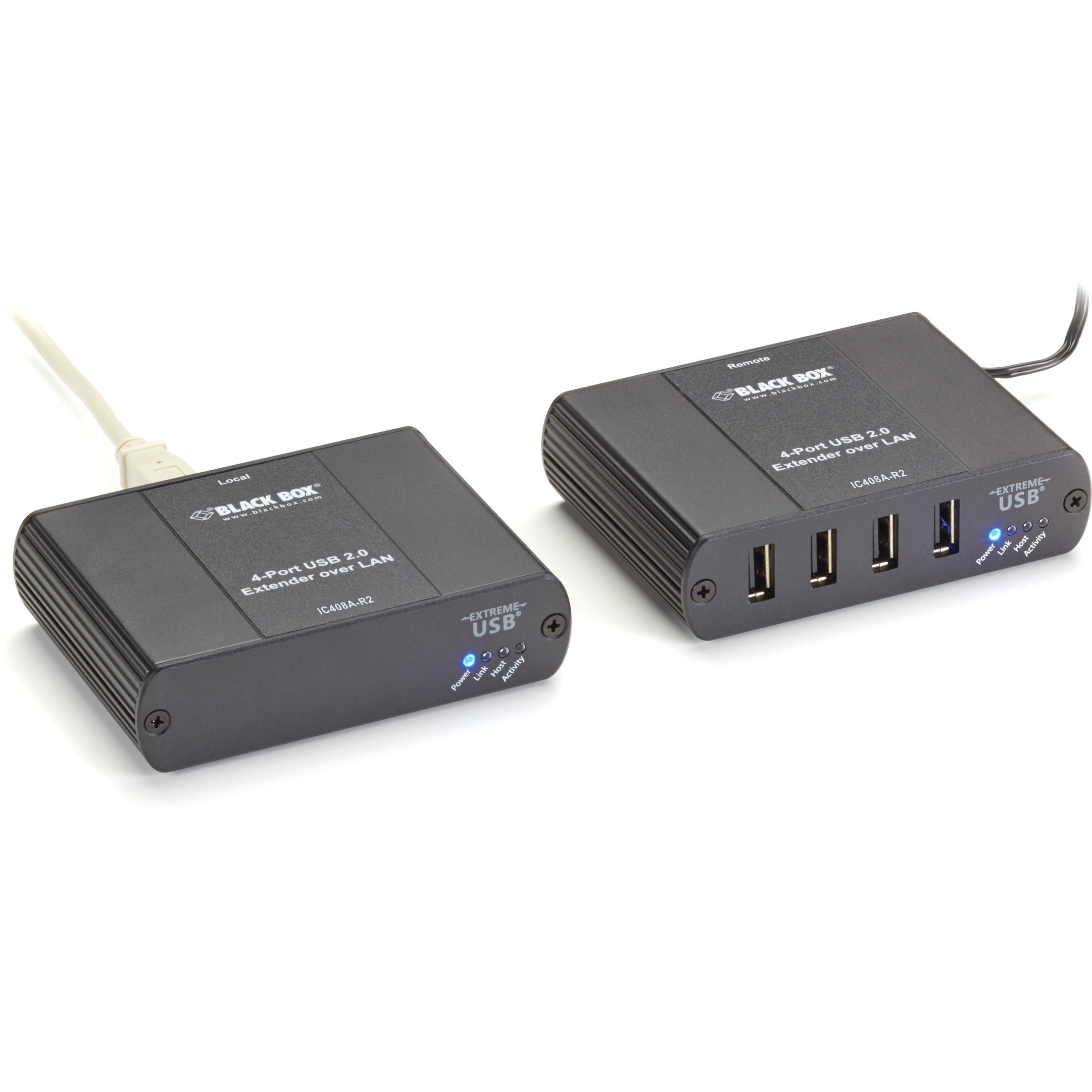

Black Box IC408A-R2 Wireless Switch

Black Box - Black Box USB 2.0 Extender - CATx/LAN, 4-Port - 2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range

Transmits up to 328 feet (100 m) over CATx or over a LAN.
Includes a local unit and remote unit with four USB 2.0 ports.
Supplies 1A max power to the USB devices.
Extends USB signals at speeds up to 480 Mbps.
Plug and play. No drivers to install on your computer.
Works with Windows®, Mac® OS X®, and Linux® systems.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$711.48

Detailed Specs

Technical Information

Maximum Extended Range:

328.08 ft

Maximum Data Transfer Rate:

60 MB/s

Interfaces/Ports

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

USB:

Yes

Number of USB Ports:

Power Description

Input Voltage:

240 V AC

Physical Characteristics

Height:

Width:

3.9"

Depth:

Miscellaneous

Package Contents:

Local Extender Unit
Remote Extender Unit
USB Cable
Power Adapter
US Power Cord
Quick Start Guide

Additional Information:

Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
Operating Humidity 20 to 80%, noncondensing
Operating Temperature 32 to 122° F (0 to 50°C)
Power Input From 100-240 VAC, 50-60 Hz adapter (included)
Power Output 24 VDC
RoHS Yes
Speeds Up to 480 Mbps*
Standards FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
Storage Humidity 10 to 90%, noncondensing
Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
Indicators On each unit: (4) LEDs (Power, Link, Host, Activity)
Weight 3.1 lb (1.4 kg)

Certifications & Standards:

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS
RoHS 2

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088125716

UPC: 822088125716

EAN: 0822088125716

UNSPSC: 43222608
