Black Box KV0416A-R2 Products

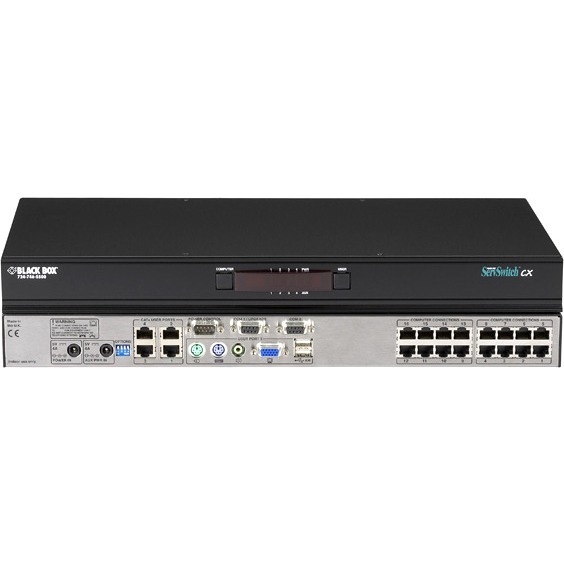

Black Box  -  Black Box ServSwitch CX KVM Switch, (1) Analog Console Port + (4) Users, (16) Servers - 16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1900 x 1440 - 20 x Network (RJ-45) - 2 x PS/2 Port - 2 x USB1 x VGA - Rack-mountable - 1U
  • Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
  • Connect up to 16 computers to 1 local users
  • Up to 1900 x 1440 video resolution
  • Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
  • The Rack-mountable form factor allocates you simple and easy installation for your kvm switchbox
Read More

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$2,127.12
In Stock
Black Box KV0416A-R2 Products
Black Box KV0416A-R2 Products
Technical Information
Number of Computers Supported:
16
Number of Local Users Supported:
1
Number of Remote Users Supported:
4
Maximum Operating Distance:
984.20 ft
Video
Maximum Video Resolution:
1900 x 1440
Interfaces/Ports
Network (RJ-45):
Yes
PS/2 Port:
Yes
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
20
Number of PS/2 Ports:
2
Number of USB Ports:
2
Number of VGA Ports:
1
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Input Voltage Range:
100-240 VAC
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.8"
Width:
19"
Depth:
8.5"
Miscellaneous
Package Contents:
  • ServSwitch CX KVM Switch, (16) Servers
  • 1 x 5VDC, 6 Amp External Power Supply
  • 1 x 6-ft. US Power Cords
  • 1 x DB9 M/F Serial Cable (female has standoffs)
  • 8 x Rubber Feet
  • 8 x Large panhead screws
  • 4 x Small panhead screws
  • 4 x Small flathead screws
  • 1 x Set of Rackmount Ears for 19-in. mounting
Certifications & Standards:
CE
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United Kingdom
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0007540301857, 0700604206333, 0822088070627
UPC: 007540301857, 700604206333, 822088070627
EAN: 0007540301857, 0700604206333, 0822088070627
UNSPSC: 43211601
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Black Box KV0416A-R2 Products is also known as BLB-KV0416AR2
