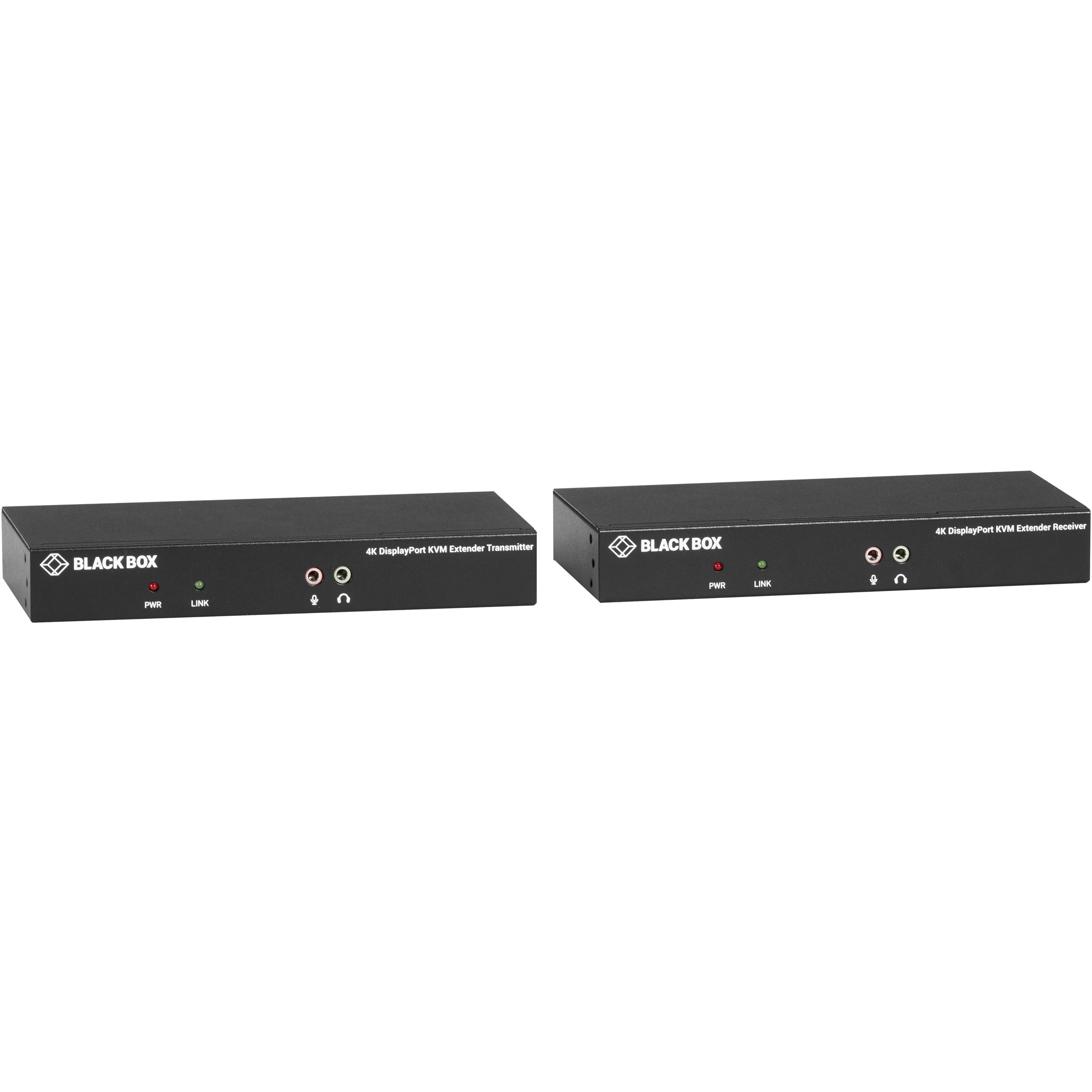

Black Box KVXLCDP-100 Accessory

Black Box - Black Box KVX KVM Extender - 1 Computer(s) - 1 Local User(s) - 328.08 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 5 - DisplayPort - 5 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant

Supports displayport local video output
Remote access up to 100 meter
Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
Transparent USB 2.0 extension supports HID devices, mass storage devices
Supports RS-232 peripheral (serial) devices
Bi-directional audio via speaker/mic connection
Local video port loopback for monitoring on transmitter (TX) unit
Supports EDID pass-through

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$749.28

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Computers Supported:

Number of Local Users Supported:

Maximum Operating Distance:

328.08 ft

Device Type:

KVM Extender

Video

Graphic Mode:

Maximum Video Resolution:

3840 x 2160

Interfaces/Ports

Network (RJ-45):

Yes

DisplayPort:

Yes

Number of Network (RJ-45) Ports:

Number of USB Ports:

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Rack Height:

Form Factor:

Rack-mountable

Transmitter Height:

0.83"

Transmitter Width:

3.27"

Transmitter Depth:

7.09"

Receiver Height:

0.83"

Receiver Width:

3.27"

Receiver Depth:

7.09"

Transmitter Weight (Approximate):

1.81 lb

Miscellaneous

Package Contents:

1 x Transmitter
1 x Receiver
2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
1 x DisplayPort Cable, M/M 1.2m (4 ft.)
1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
2 x Deskmounting brackets (with screws)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088142584

UPC: 822088142584

EAN: 0822088142584

UNSPSC: 43211603
