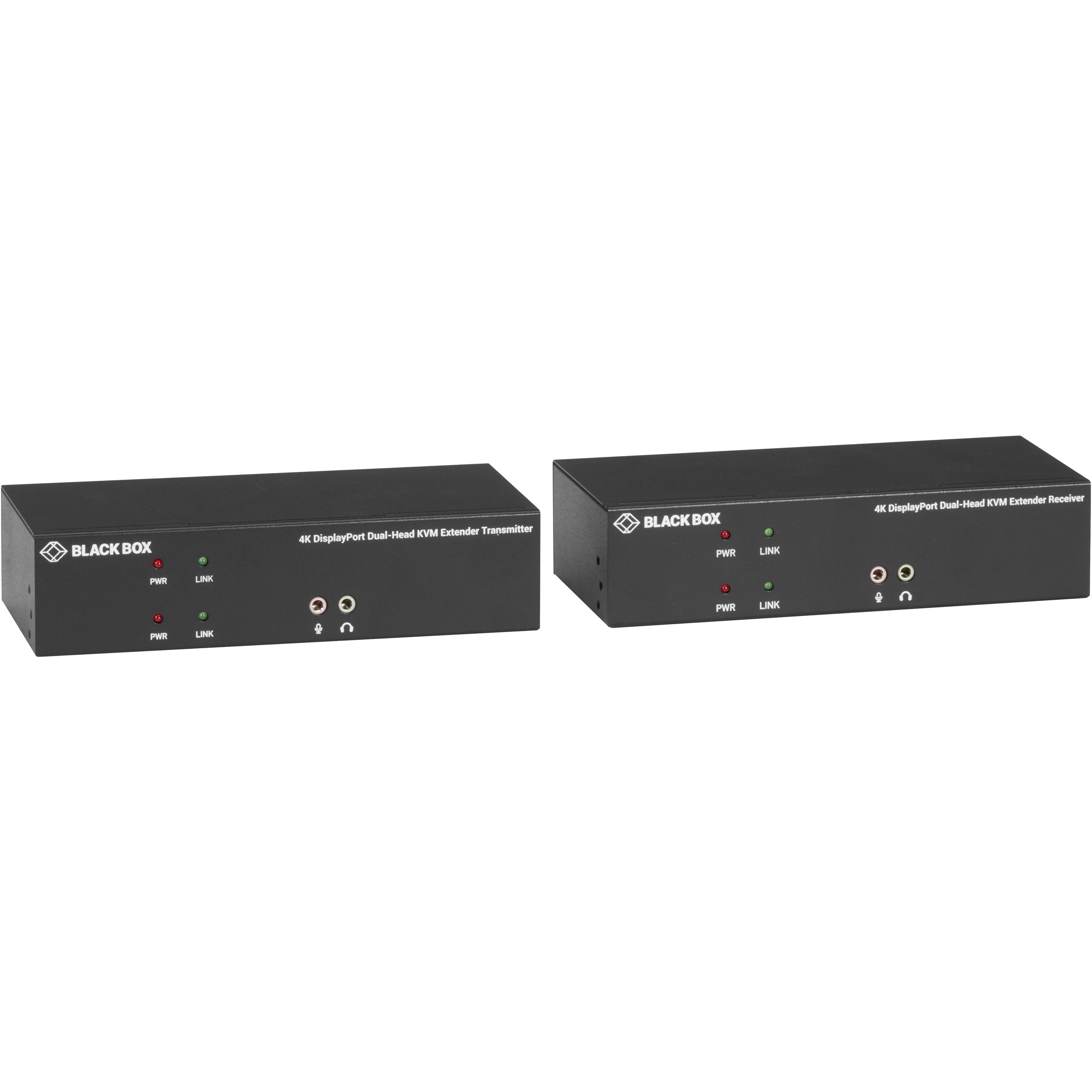

Black Box KVXLCDP-200 Accessory

Black Box - Black Box Video Extender Transmitter/Receiver - 2 Input Device - 2 Output Device - 328.08 ft Range - 5 x USB - DisplayPort - 4K UHD - 3840 x 2160 - Optical Fiber - TAA Compliant

DisplayPort dual-head 4K transmission up to 30 km over singlemode cable
Supports DisplayPort video resolution up to 3840 x 2160 at 30 Hz
Transparent USB 2.0 extension supports HID devices, mass storage devices.
Bidirectional audio via speaker/mic connection
Supports RS-232 peripheral (serial) devices such as scanners or terminals.
Local and remote units connect at distances of up to 10 km using SFP <1250 Mbps
Supports dual 4K view video source transmission (one PC with two video output ports)
Local video port loopback for monitoring on transmitter (TX) unit

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$1,398.88

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Number of Output Devices Supported:

Maximum Operating Distance:

328.08 ft

Video

Graphics Modes:

4K UHD

Maximum Video Resolution:

3840 x 2160

Interfaces/Ports

USB:

Yes

DisplayPort:

Yes

Number of USB Ports:

Media & Performance

Media Type Supported:

Optical Fiber

Physical Characteristics

Transmitter Height:

1.71"

Transmitter Width:

7.09"

Transmitter Depth:

3.27"

Receiver Height:

1.71"

Receiver Width:

7.09"

Receiver Depth:

3.27"

Transmitter Weight (Approximate):

13.62 oz

Receiver Weight (Approximate):

13.44 oz

Miscellaneous

Package Contents:

1 x Dual-Head DisplayPort KVM Fiber Extender Transmitter
1 x Dual-Head DisplayPort KVM Fiber Extender Receiver
2 x Wallmount Power Supplies 5V, 2 A W/ US, EU, AU, and UK Power Clips
2 x DisplayPort Cables, M/M (6-ft./1.8-m)
1 x USB Type A To B Cable, M/M (6-ft./1.8-m)
1 x 3.5-mm Dual Audio/Mic Cable, M/M (6-ft./1.8-m)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088148166

UPC: 822088148166

EAN: 0822088148166

UNSPSC: 45111815
