Black Box KVXLCF-100 Accessory

The Black Box KVXLCF-100 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

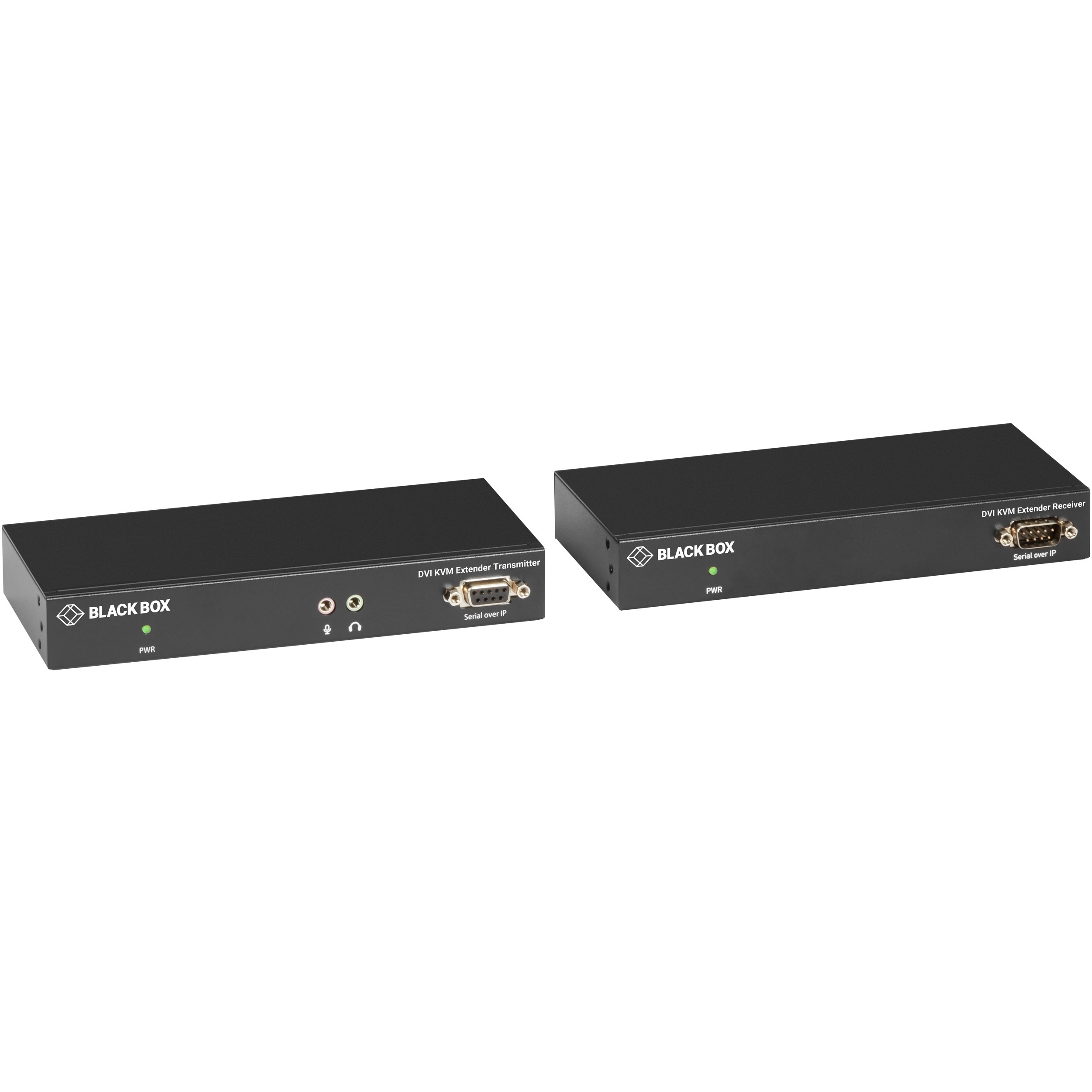

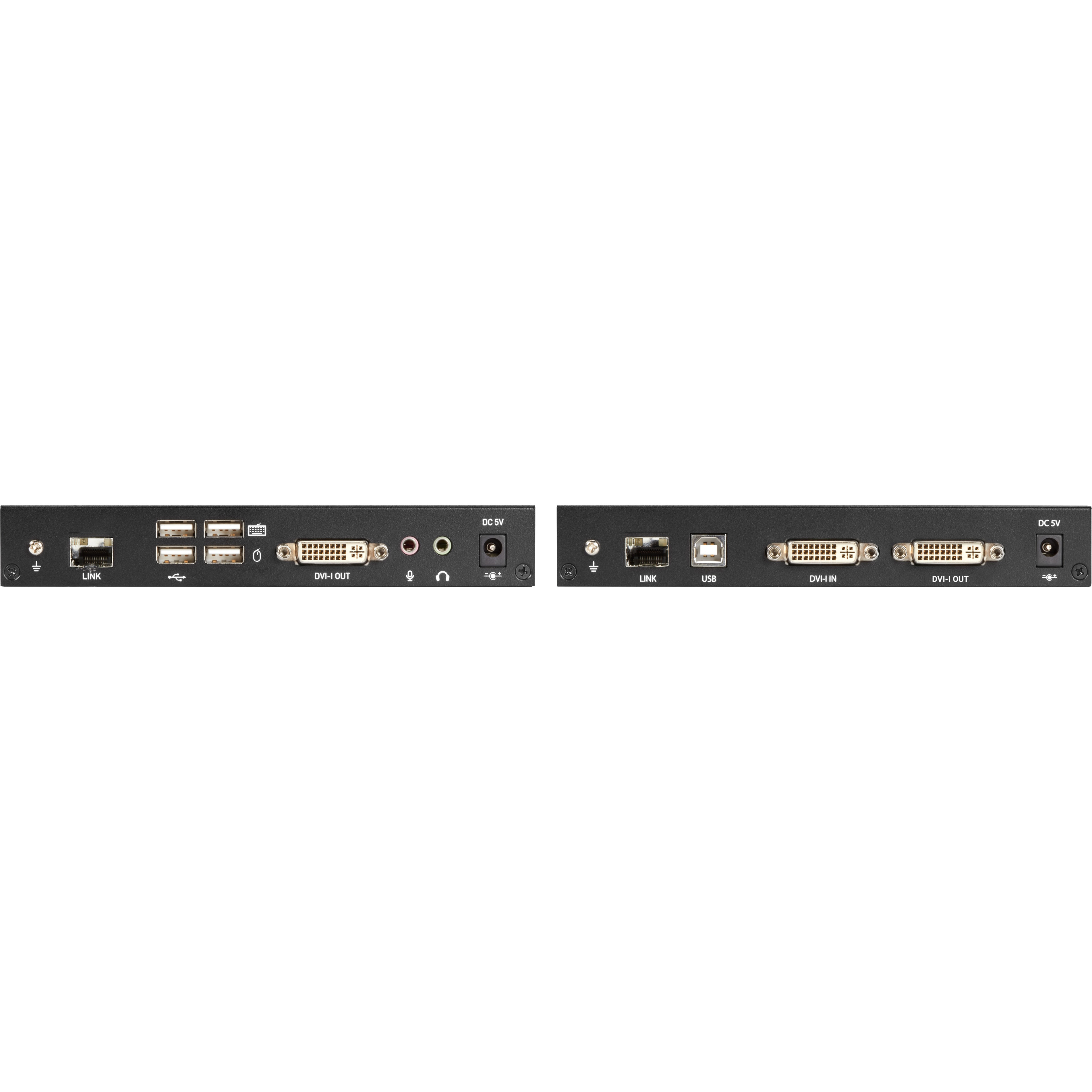

Black Box - Black Box LC100 Series KVM Extender - DVI, Transmitter and Receiver, Fiber - 1 Computer(s) - 1 Local User(s) - 33000 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 3 x DVI - TAA Compliant

DVI-I/VGA video resolution up to 1920x1200 at 60Hz over Fiber optic
Remote access up to 100 meter
Transparent USB 2.0 extension supports HID devices, mass storage devices
Supports RS-232 peripheral (serial) devices
Bi-directional audio via speaker/mic connection
Local DVI port loopback for monitoring on transmitter (TX) unit
Supports EDID pass-through
Rackmount kit available in 1U (19" standard)

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Computers Supported:

Number of Local Users Supported:

Maximum Operating Distance:

98425.20 ft

Device Type:

KVM Extender

Video

Graphic Mode:

WUXGA

Maximum Video Resolution:

1920 x 1200

Interfaces/Ports

USB:

Yes

DVI:

Yes

Headphone:

Yes

Microphone:

Yes

Number of USB Ports:

Number of DVI Ports:

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Form Factor:

Desktop

Transmitter Height:

1.06"

Transmitter Width:

7.09"

Transmitter Depth:

3.27"

Receiver Height:

1.06"

Receiver Width:

7.09"

Receiver Depth:

3.27"

Transmitter Weight (Approximate):

12.35 oz

Receiver Weight (Approximate):

13.05 oz

Miscellaneous

Package Contents:

1 x Transmitter
1 x Receiver
2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
1 x DVI-D Cable, M/M 1.8m (6 ft.)
1 x USB Type A to B Cable, M/M 1.8m (6ft.)
1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
2 x Deskmounting brackets (with screws)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088132707

UPC: 822088132707

EAN: 0822088132707

UNSPSC: 43211603

Reviews

Q&A

Get help from a Barcoding Expert!

The Black Box KVXLCF-100 Accessory is also known as BLB-KVXLCF100
