Black Box KVXLCF-200 Accessory

Black Box - Black Box KVXLCF-200 KVM Extender - 3 Computer(s) - 3 Local User(s) - 98425.20 ft Range - 1920 x 1200 Maximum Video Resolution - 5 x USB - 6 x DVI - TAA Compliant

DVI-I/VGA video resolution up to 1920x1200 at 60Hz over Fiber optic
Supports DVI-I video and VGA (using adapter)
Supports EDID pass-through
Local and remote units connect at distances of up to 330 feet (100m) using two standard CAT5e cables
Transparent USB 2.0 extension supports HID devices, mass storage devices
Supports RS-232 peripheral (serial) devices
Bi-directional audio via speaker/mic connection
Local DVI port loopback for monitoring on transmitter (TX) unit

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$1,666.40

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Computers Supported:

Number of Local Users Supported:

Maximum Operating Distance:

98425.20 ft

Device Type:

KVM Extender

Video

Graphic Mode:

WUXGA

Maximum Video Resolution:

1920 x 1200

Interfaces/Ports

USB:

Yes

DVI:

Yes

Headphone:

Yes

Microphone:

Yes

Number of USB Ports:

Number of DVI Ports:

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Form Factor:

Desktop

Transmitter Height:

1.71"

Transmitter Width:

7.09"

Transmitter Depth:

3.27"

Receiver Height:

1.71"

Receiver Width:

7.09"

Receiver Depth:

3.27"

Transmitter Weight (Approximate):

1.12 lb

Receiver Weight (Approximate):

1.12 lb

Miscellaneous

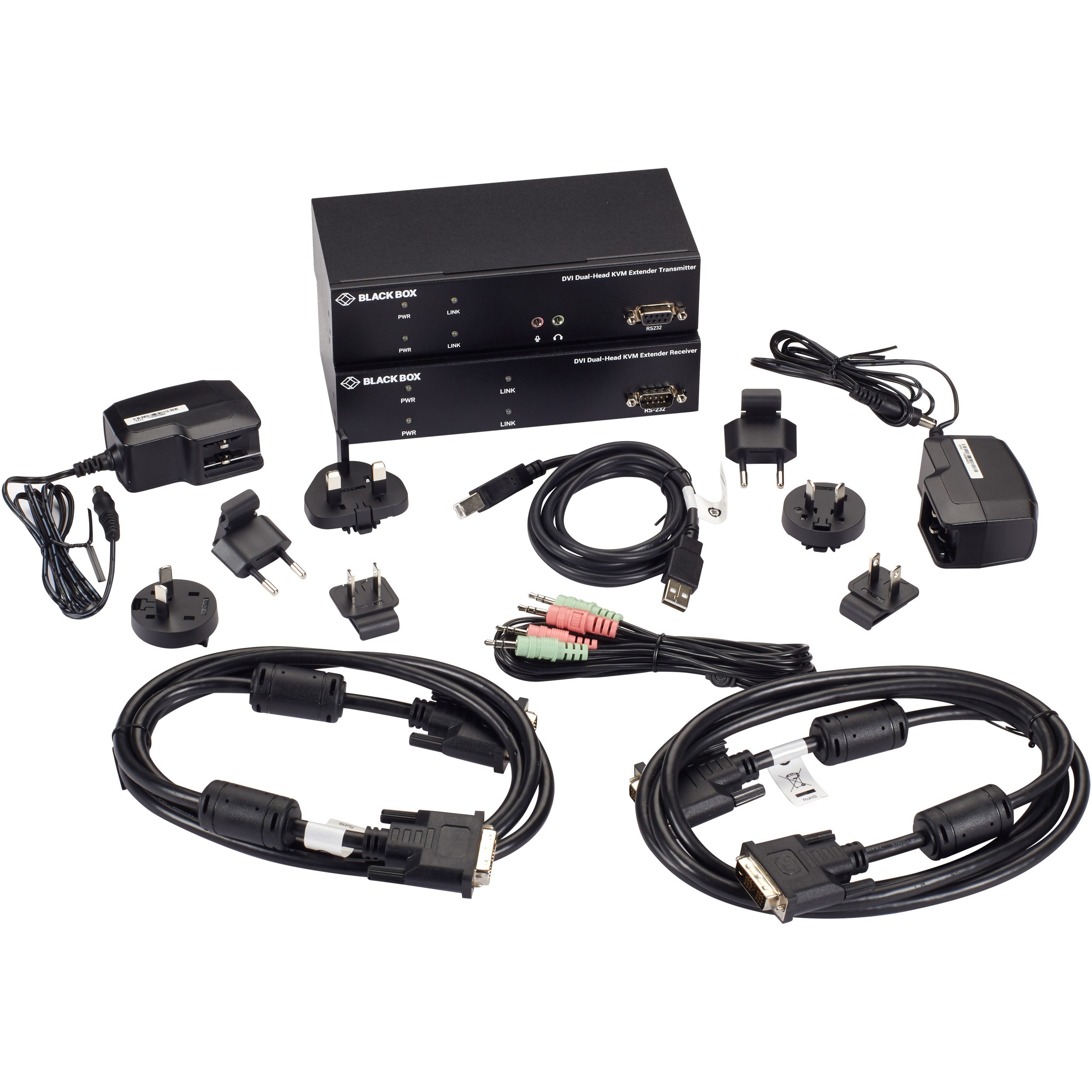

Package Contents:

1 x Transmitter
1 x Receiver
2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
2 x DVI-D Cables, M/M 1.8m (6 ft.)
1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
2 x Deskmounting brackets (with screws)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088144014

UPC: 822088144014

EAN: 0822088144014

UNSPSC: 43211603
