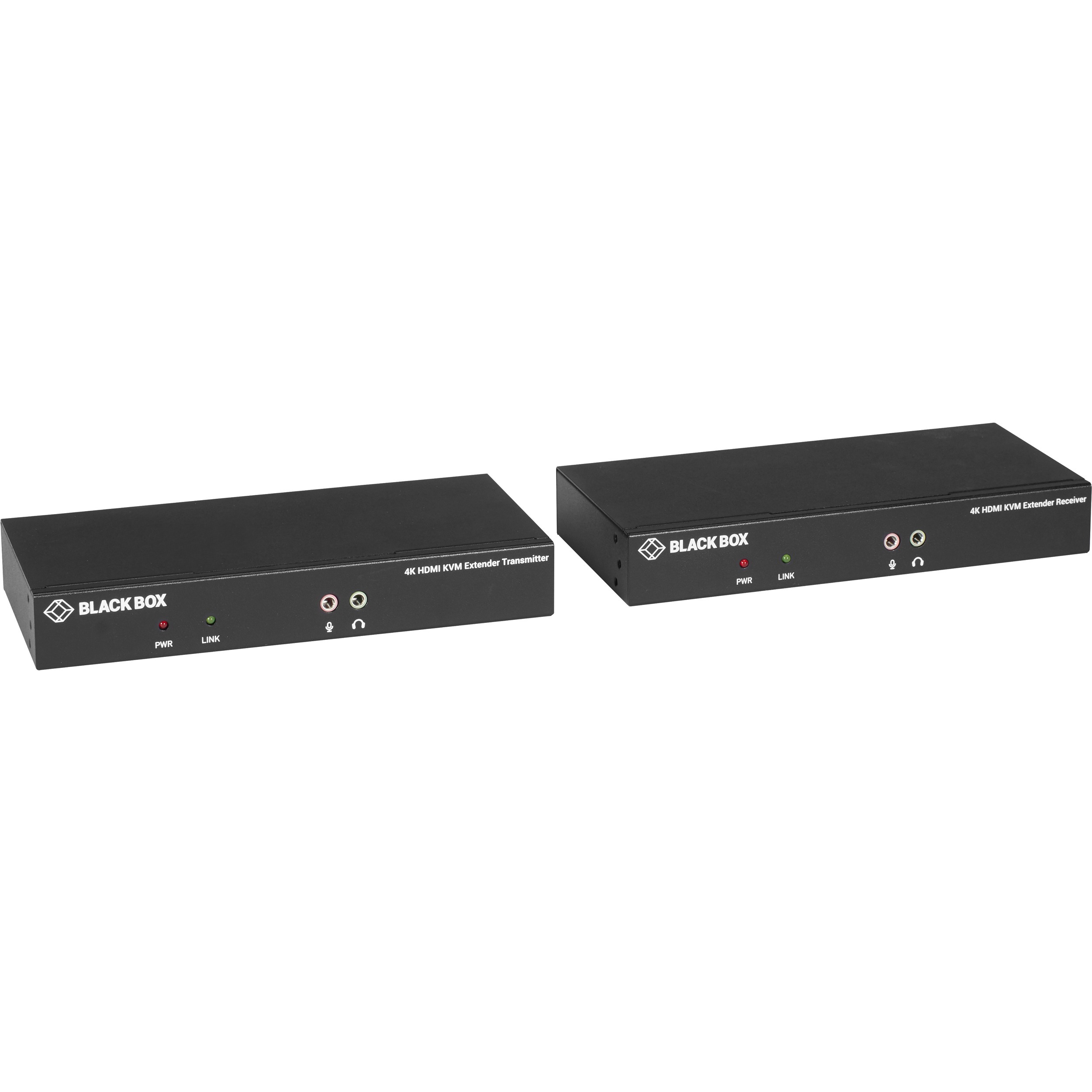

Black Box KVXLCHF-100 Accessory

Black Box - KVM Extender Fiber - 4K SH HDMI USB 2.0 Serial Audio Local Video

HDMI video resolution up to UHD 4K
Remote access up to 100 meter
Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over Fiber optic
Transparent USB 2.0 extension supports HID devices, mass storage devices
Supports RS-232 peripheral (serial) devices
Bi-directional audio via speaker/mic connection
Local video port loopback for monitoring on transmitter (TX) unit
Supports EDID pass-through

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$872.48

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Number of Input Devices Supported:

Number of Output Devices Supported:

Maximum Operating Distance:

98425.20 ft

Video

Graphics Modes:

4K UHD

Maximum Video Resolution:

3840 x 2160

Interfaces/Ports

HDMI In:

Yes

HDMI Out:

Yes

USB:

Yes

Serial Port:

Yes

Number of USB Ports:

Number of HDMI Inputs:

Number of HDMI Outputs:

Media & Performance

Media Type Supported:

Optical Fiber

Physical Characteristics

Transmitter Height:

0.83"

Transmitter Width:

3.27"

Transmitter Depth:

7.09"

Receiver Height:

0.83"

Receiver Width:

3.27"

Receiver Depth:

7.09"

Form Factor:

Desktop

Transmitter Weight (Approximate):

13.12 oz

Receiver Weight (Approximate):

13.28 oz

Miscellaneous

Package Contents:

1 x Transmitter
1 x Receiver
2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
1 x HDMI Cable, M/M 1.2m (4 ft.)
1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
2 x Deskmounting brackets (with screws)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0822088133681

UPC: 822088133681

EAN: 0822088133681

UNSPSC: 45111815
