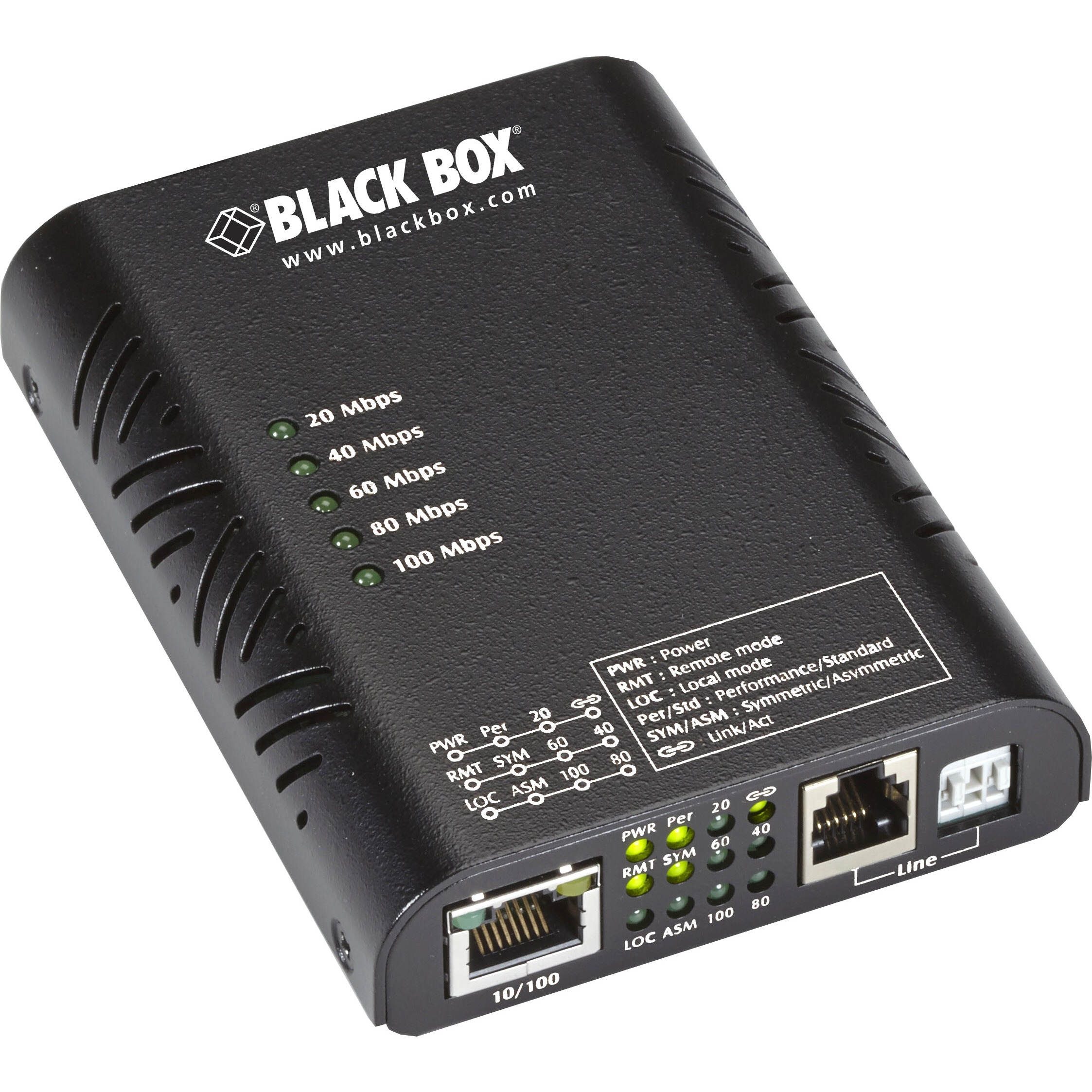

Black Box LB320A Accessory

Black Box - Black Box Industrial Ethernet Extender - 10/100, 1-Port

Save wiring costs by using voice-grade copper wire-even phone wire you already have installed.|Extends 10- or 100-Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps.|Perfect for connecting an isolated user in another building or in another part of a large building.|Symmetrical VDSL supports speeds of up to 100 Mbps.|Use a standalone or rackmount in the LinkGain Chassis (LB300A-RACK).|Hot swap extenders in and out of the rack without having to power down the entire system.
|Transparent to network protocols.
|Six speeds with easy-to-read speed indicator LEDs on top of the extender.
|Ethernet ports are Auto MDI/MDI-X and autosensing for speed and duplex.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

$503.72

Technical Information

Maximum Extended Range:

8448 ft

Maximum Data Transfer Rate:

12.50 MB/s

Physical Characteristics

Height:

0.9"

Width:

3.2"

Depth:

4.3"

Miscellaneous

Additional Information:

Save wiring costs by using voice-grade copper wire-even phone wire you already have installed.
Extends 10- or 100-Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps.
Perfect for connecting an isolated user in another building or in another part of a large building.
Symmetrical VDSL supports speeds of up to 100 Mbps.
Use a standalone or rackmount in the LinkGain Chassis (LB300A-RACK).
Hot swap extenders in and out of the rack without having to power down the entire system.
Transparent to network protocols.
Six speeds with easy-to-read speed indicator LEDs on top of the extender.
Ethernet ports are Auto MDI/MDI-X and autosensing for speed and duplex.

Environmentally Friendly:

Yes

Environmental Certification:

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0088064842293, 0818278722216, 0822088079385, 0822088123187

UPC: 088064842293, 818278722216, 822088079385, 822088123187

EAN: 0088064842293, 0818278722216, 0822088079385, 0822088123187

UNSPSC: 43222608

Get help from a Barcoding Expert!

The Black Box LB320A Accessory is also known as BLB-LB320A
