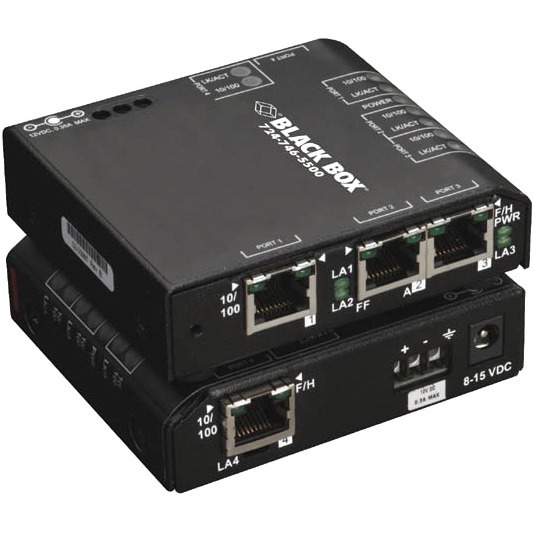

Black Box LBH101A-HD-24 Accessory

The Black Box LBH101A-HD-24 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Black Box  -  Black Box Hardened Convenient Switch, 24 VDC, DIN Rail Mountable - 4 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - Rack-mountable, Rail-mountable - 3 Year Limited Warranty

  • Use this handy four-port switch to quickly add ports anywhere in your network.
  • Extended temperature range of -13° to +140° F (-25° to +60° C).
  • Models available to stand up to environments ranging from the wiring closet to harsh outdoor applications.
  • Provide four 10-/100-Mbps UTP switch ports.
  • Part of the BLACK BOX® Media Converter Switch family, providing network extension for any environment.
  • Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray.
  • Mount on DIN rails with optional brackets.
  • Two sets of LEDs enable you to see status information from the front, top, or side.
  • Support both half- and full-duplex operation.
  • Support VLAN tagging and spanning tree passthrough.
Read More
Need a different version? See all Black Box Parts Products
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Black Box LBH101A-HD-24 Accessory
Black Box LBH101A-HD-24 Accessory
Interfaces/Ports
Total Number of Network Ports:
4
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Management Port:
No
USB:
No
Number of Network (RJ-45) Ports:
4
Port/Expansion Slot Details:
4 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Power Description
Input Voltage:
24 V DC
Power Source:
DC
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Rail-mountable
Height:
3.5"
Width:
3"
Depth:
1"
Weight (Approximate):
4.80 oz
Miscellaneous
Certifications & Standards:
  • CE
  • TAA
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.1p
  • 802.1q
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
United States
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0700604203905, 0822088105091
UPC: 700604203905, 822088105091
EAN: 0700604203905, 0822088105091
UNSPSC: 43222612
