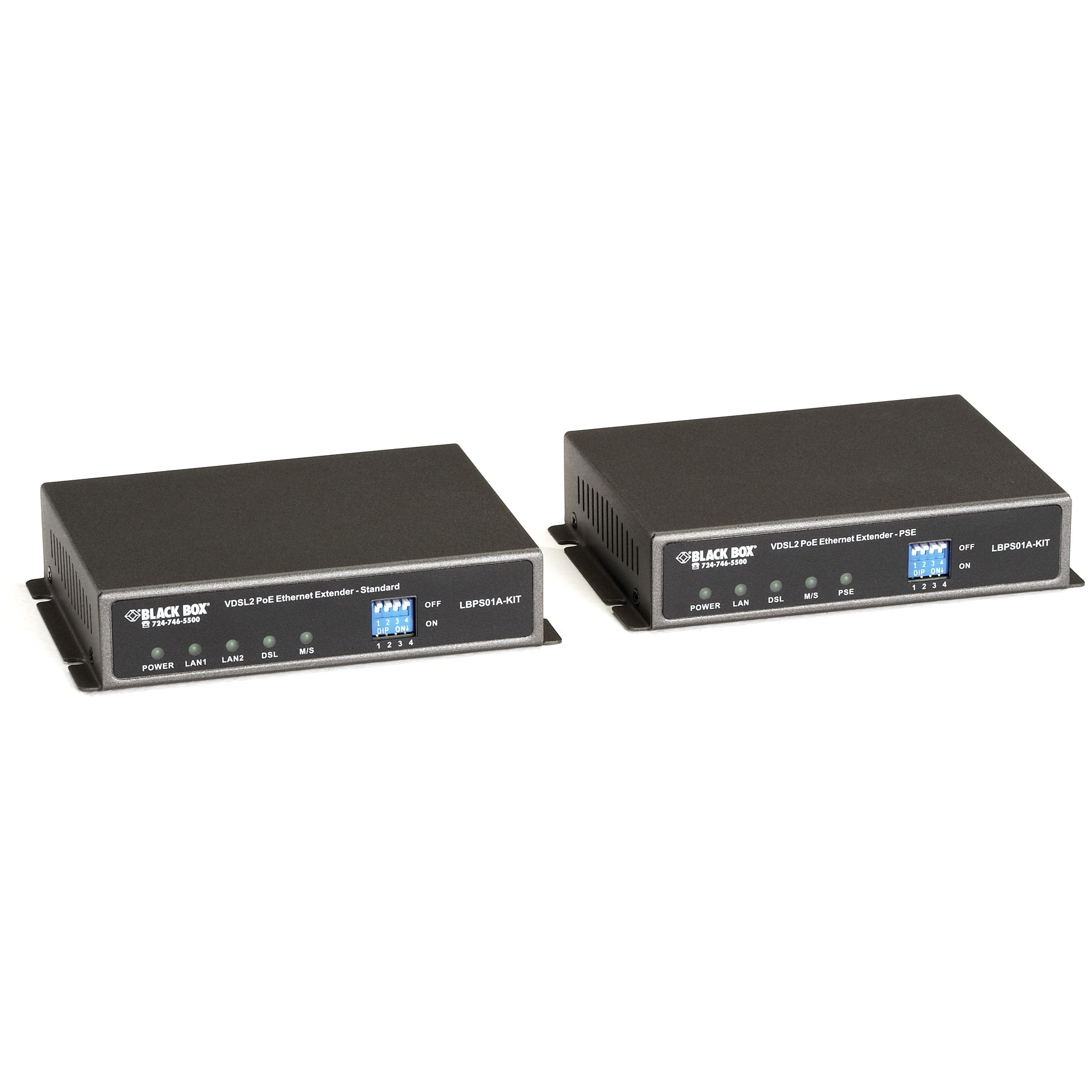

Black Box - Black Box VDSL2 PoE/PSE Ethernet Extender Kit

The VDSL2 PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device (802.3af).|Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).|An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface.|Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
|Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
|Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
|DIP switches for master/slave configuration.
|Low latency for video and voice applications.|

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Please Call for Pricing or to Purchase

In Stock

Physical Characteristics

Height:

0.8"

Width:

4.7"

Depth:

3.5"

Miscellaneous

Package Contents:

1 x VDSL2 PoE Ethernet Extender PSE (PSE Unit)
1 x VDSL2 PoE Ethernet Extender PSE (Standard Unit)
1 x 12V DC, 2A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (PSE Unit)
1 x 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (Standard Unit)
1 x CD Containing the User's Manual

Additional Information:

Kit includes two extenders-one of which acts as PoE power source equipment (PSE), the other is a standard extender.
Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).
Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
DIP switches for master/slave configuration.
Low latency for video and voice applications.

Environmentally Friendly:

Yes

Environmental Certification:

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0093007105519, 0641676611925, 0787416074732, 0822088106241

UPC: 093007105519, 641676611925, 787416074732, 822088106241

EAN: 0093007105519, 0641676611925, 0787416074732, 0822088106241

UNSPSC: 43222608
