Black Box LES301A Wireless Switch

The Black Box LES301A Wireless Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

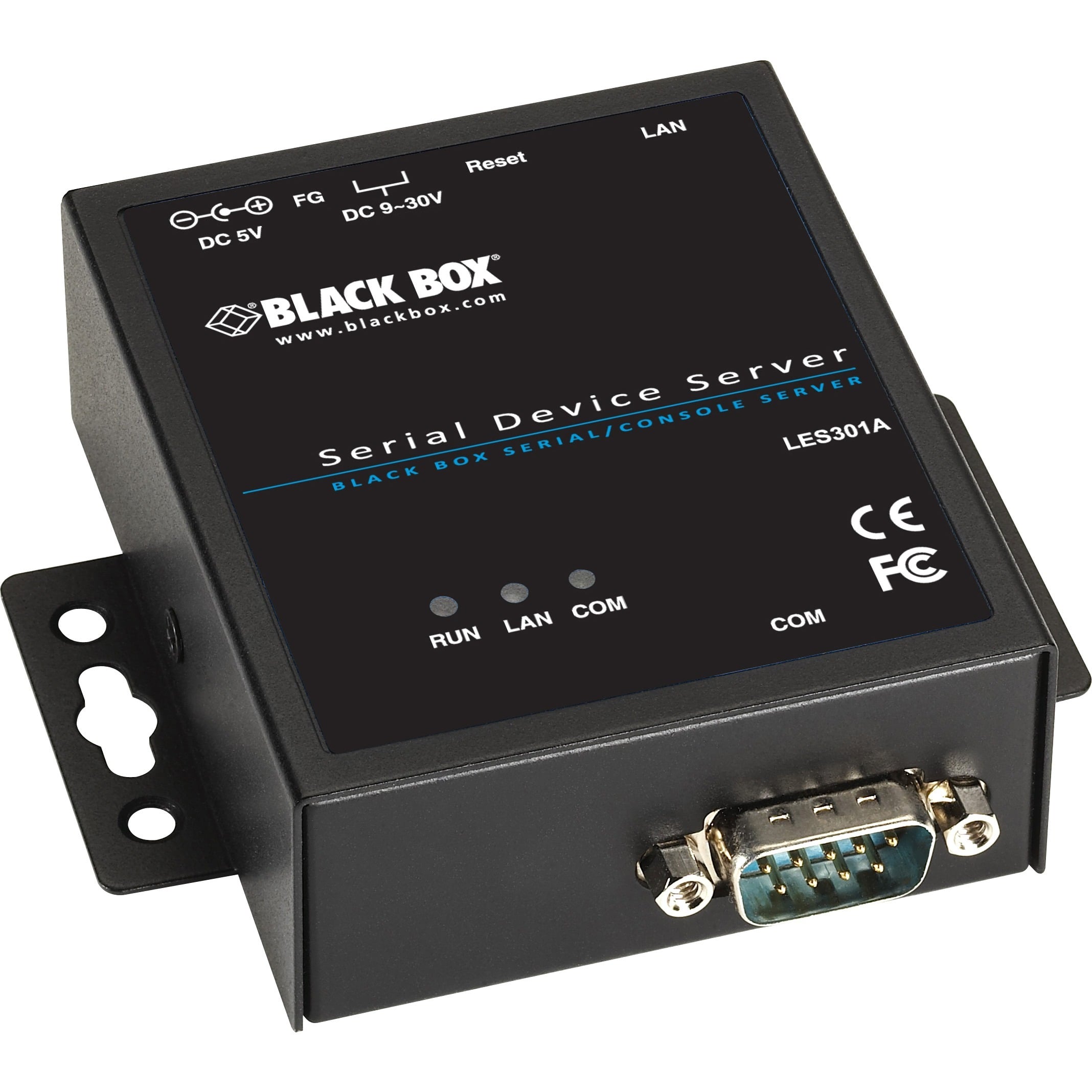

Black Box - Black Box LES300 Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 100Base-TX - Fast Ethernet - Wall Mountable, DIN Rail Mountable - TAA Compliant

Access a single serial device over your Ethernet network.
Software selectable for RS-232, RS-422, or RS-485.
Software-selectable interface prevents tampering in the field.
DB9 male serial connector.
Autosensing 10-/100-Mbps Ethernet port.
Completely manageable through any Web browser or Telnet™.
Supports SNMP manangement.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Larger View

Detailed Specs

Media & Performance

Media Type Supported:

Twisted Pair

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Standard:

100Base-TX

Interfaces/Ports

Network (RJ-45):

Yes

Serial Port:

Yes

Number of Network (RJ-45) Ports:

Number of Serial Ports:

Physical Characteristics

Form Factor:

Wall Mountable
DIN Rail Mountable

Height:

1.1"

Width:

2.6"

Depth:

3.1"

Miscellaneous

Package Contents:

LES300 Device Server
Mounts

Additional Information:

General

CE Approval: Yes
Operating Temperature: 32 to 140° F (0 to 60° C)
Serial Baud Rate: 1200 bps to 230 kbps
Serial Data Bits: 7, 8
Serial Data Parity: None, Odd, Even, Mark, Space
Serial ESD Protection: 15 kV
Serial Flow Control: None; Software: X-ON/X-OFF; Hardware: RTS/CTS
Serial Stop Bits: 1, 2
Software Support Protocols: ICMP, TCP (UDP)/IP, DHCP client, SNMP, HTTP, Telnet
Standard: IEEE 802.3

This product works with:

DIN Rail Power Supply, 10 Watts, 12 VDC (MDR-10-12)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0013269142787, 0700604207088, 0822088107019, 0999557316668

UPC: 013269142787, 700604207088, 822088107019, 999557316668

EAN: 0013269142787, 0700604207088, 0822088107019, 0999557316668

UNSPSC: 43222625
