Black Box LES431A Accessory

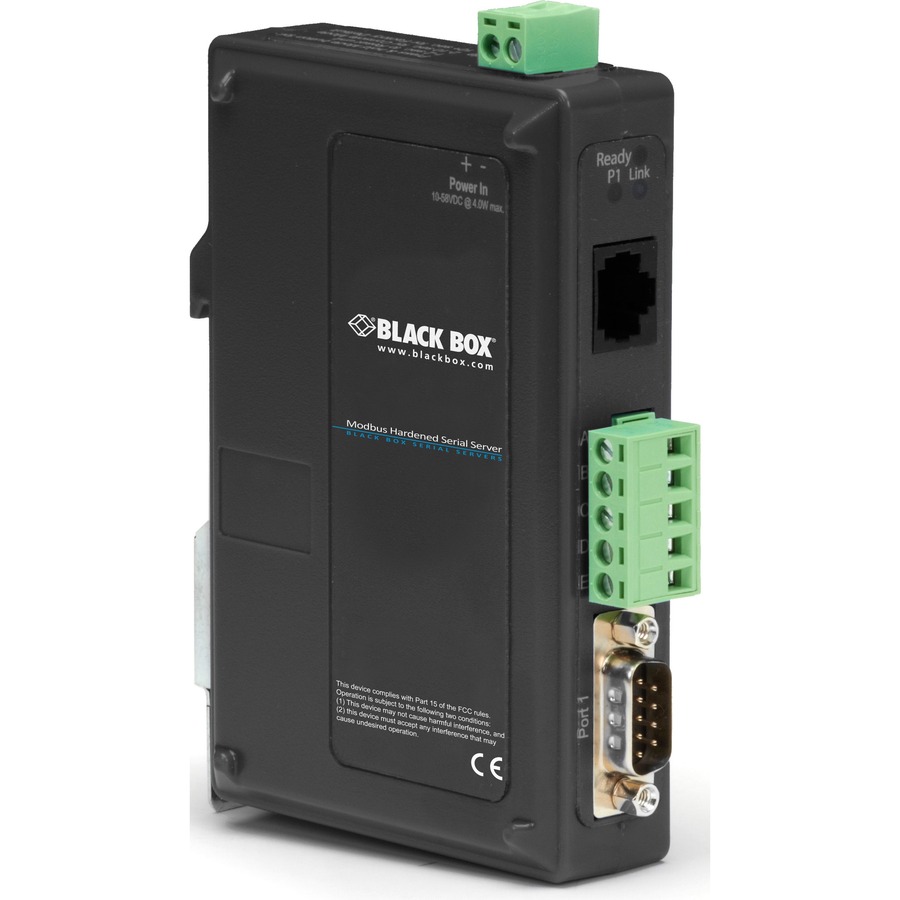

Black Box - Black Box LES400 Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable - TAA Compliant

Provides a gateway between Modbus® TCP and Modbus ASCII or RTU devices.
Software selectable for RS-232, RS-422, or RS-485.
UL® certified for use in Class 1, Div.2 hazardous environments.
Operating Temperature -40 to +176° F (-40 to 80° C).
Autosensing 10-/100-Mbps Ethernet port.
Completely manageable through any Web browser.
Provides a gateway between Modbus® TCP and Modbus ASCII or RTU devices.
Allows older PLCs and similar devices to talk to newer TCP sensors and meters.
Enables you to monitor a serial industrial device from your office.
Rugged design for operation in a wide temperature range.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$610.08

Detailed Specs

Media & Performance

Media Type Supported:

Twisted Pair

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Standard:

10/100Base-TX

Interfaces/Ports

Network (RJ-45):

Yes

Serial Port:

Yes

Number of Network (RJ-45) Ports:

Number of Serial Ports:

Physical Characteristics

Form Factor:

DIN Rail Mountable

Height:

1.2"

Width:

3.2"

Depth:

4.7"

Weight (Approximate):

4.80 oz

Miscellaneous

Additional Information:

General

Approvals: CE, UL® Class 1 Division 2, NEMA TS-2 rated
Data Rate: 230.4 Kbps, maximum
Operating Temperature: -29 to +176° F (-34 to 80° C)
Power: From a separately available power supply: 10-48 VDC (58 VDC max.) on a removable terminal block; Consumption: 4 W (maximum)
User Controls: (1) switch for resetting unit
Web Management OS Compatability: Windows® 2000, Windows XP (32-/64-bit), Windows 2003 Server (32-/64-bit), Windows Vista (32-/64-bit), Windows 2008 Server (32-/64-bit), Windows 7 (32-/64-bit)

Product works with:

For -40 to +167° F (-40 to +75° C) environments: External 100-240-VAC Power Adapter, 12-VDC, Hardened (PS003A)
For standard, more controlled environments: External 100-240-VAC Power Adapter, 12-VDC (PS012)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

United States

TAA Compliant:

Yes

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0822088107163

UPC: 822088107163

EAN: 0822088107163

UNSPSC: 43222625
