Black Box LGC324A-R3 Accessory

The Black Box LGC324A-R3 Accessory has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

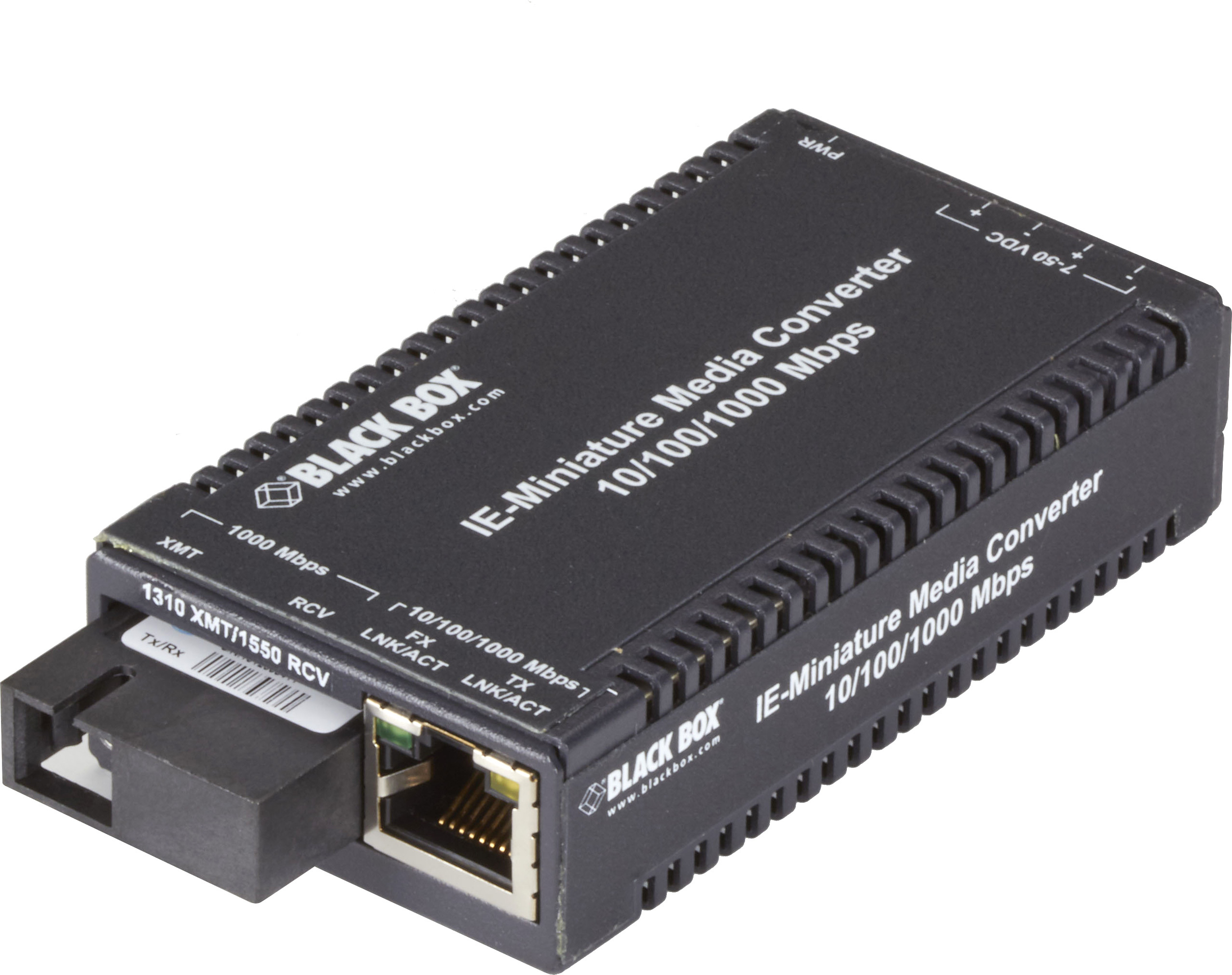

Black Box - Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - USB - Single-mode - Gigabit Ethernet - 1000Base-X, 1000Base-T - DIN Rail Mountable, Rack-mountable - TAA Compliant

Compliant to EN62368
Extend the reach of your LAN in harsh environments.
Powered by a universal AC power supply or the optional rackmountable PowerTray.
Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
When used with DC power, the converter supports an extended temperature range of -13 to +185° F (-25 to +85° C).
When used with included AC power adapter, the converter supports a temperature range of +32 to +122° F (0 to +50° C).
Supports link fault pass through for troubleshooting

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Yes

USB:

Yes

Number of Network (RJ-45) Ports:

Number of SC Ports:

SC Port Type:

Duplex

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Fiber Mode Supported:

Single-mode

Fiber Optic Wavelength:

1310 nm
1550 nm

Maximum Distance Supported:

6.21 Mile

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Network Technology:

1000Base-X
1000Base-T

Power Description

Power Source:

AC/DC

Physical Characteristics

Form Factor:

DIN Rail Mountable
Rack-mountable

Height:

0.8"

Width:

1.8"

Depth:

3.4"

Miscellaneous

Package Contents:

MultiPower Miniature Transceiver/Media Converter
DIN Rail Mounting Clips
100-240VAC Power Adapter

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

6 Year

Item Numbers

GTIN: 0822088148999

UPC: 822088148999

EAN: 0822088148999

UNSPSC: 43201553
