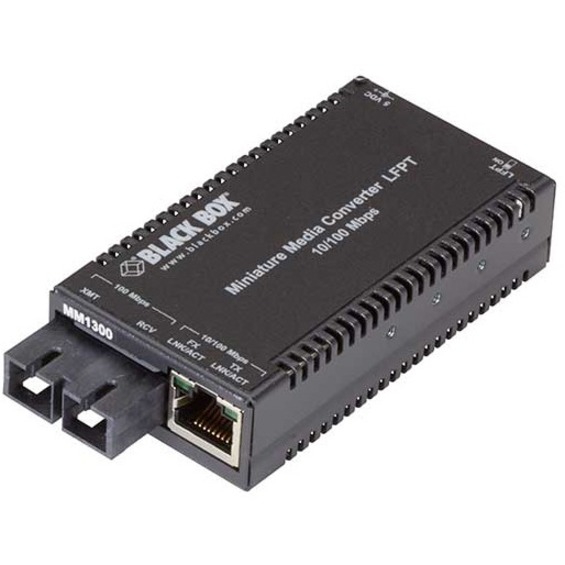

Black Box LHC014A-R4 Data Networking

Black Box - Data Networking, Black-Box, Media Converter, 10/100 MBPS TX/SX MM 1300NM

Compliant to EN62368|Brings fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
Connects Ethernet or Fast Ethernet to fiber optic cable.
Compact size-measures just 0.8"H x 1.8"W x 3.4"D.
Converters may also be powered from a USB port using the LHC021A USB power cable.
Autonegotiates for speed and duplex.
A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
Powered by a universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

Need a different version? See all Black Box Parts Products

Chat Now for Qty Discount

Add to Quote

$159.66

In Stock

Detailed Specs

Interfaces/Ports

Total Number of Ports:

Network (RJ-45):

Yes

USB:

Yes

Number of Network (RJ-45) Ports:

Number of SC Ports:

SC Port Type:

Duplex

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Fiber Mode Supported:

Multi-mode

Fiber Optic Wavelength:

1300 nm

Maximum Distance Supported:

1.24 Mile

Fiber Optic Cable Standard:

50/125 µm
62.5/125 µm

Network & Communication

Ethernet Technology:

Fast Ethernet

Network Technology:

100Base-T
100Base-X

Power Description

Power Source:

Power Adapter

Physical Characteristics

Form Factor:

Rack-mountable
Standalone
DIN Rail Mountable

Height:

Width:

Depth:

4.7"

Weight (Approximate):

1.20 lb

Miscellaneous

Package Contents:

MultiPower Miniature Transceiver/Media Converter
External 100-240-VAC, 50-60-Hz Adapter

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

6 Year

Item Numbers

GTIN: 0822088149026

UPC: 822088149026

EAN: 0822088149026

UNSPSC: 43201553
